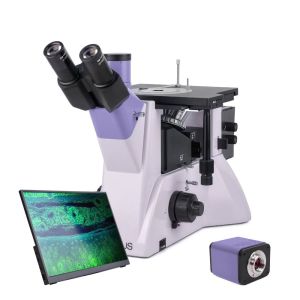

MAGUS METAL VD700 BD LCD

MAGUS METAL VD700 BD LCD

Key features of the microscope:

• Suitable for studying opaque dimensional objects up to 2kg
• Trinocular head with the option to adjust eye relief
• Two options for mounting a digital camera and monitor: trinocular tube of the trinocular head and camera side port on the body; beam splitting on the trinocular head 50:50, beam splitting on the body 100:0/0:100
• Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield microscopy techniques
• Reflected light illuminator with the powerful 50W bulb for darkfield microscopy
• Köhler illumination, centered elements of the illumination system, darkfield, brightfield, and polarization microscopy
• Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
• Large-sized stage with round rotating stage plate with 10mm, 20mm, and 30mm holes
• Large selection of additional eyepieces and objectives

Key features of the camera:

• The camera operates autonomously without a connection to a PC and via HDMI interface. Can be connected to a PC via Wi-Fi and a USB3.0 interface
• Auto switching between 4K and Full HD depending on monitor resolution
• 30fps for observing moving objects, recording video, and moving the sample without jerkiness or delays
• SONY Exmor/Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
• Software with photo, video recording, editing, external display functions, linear and angular measurements

Digital camera
MAGUS CHD40 is a digital HDMI camera with three video interfaces and automatic switching between 4K and Full HD depending on the monitor resolution.
The camera is equipped with an 8MP sensor and produces realistic images in 4K resolution (3840x2160px) when connected via HDMI or USB3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080px).
The camera uses an HDMI interface to connect to a TV, monitor, or projector directly. In this mode, the camera operates autonomously without a connection to a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB3.0. Video is recorded at 30fps.
The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

Monitor
The MAGUS MCD40 Monitor is designed to use a visualization system of the MAGUS microscope.
It is connected to a camera mounted on the microscope to display real-time images. It supports MAGUS 4K HDMI cameras.
The screen diagonal is 13.3 inches. The IPS matrix provides bright images with large viewing angles. If you look at the display at an angle, the color reproduction is not distorted.
The display can be placed on a folding stand on a table or shelf or mounted directly to the camera or microscope stand.

Microscope head
Tube length – infinity (∞). When assembling the microscope, the user can rotate the eyepiece tubes 180° and adjust the eye relief to fit their height. There is a trinocular head. The monitor is mounted in the trinocular tube of the trinocular head and the digital camera – in the camera side port. The trinocular head is equipped with an 50/50 beam splitter, and there is a 2-position beam splitter (100:0/ 0:100) on the body.

Revolving nosepiece
The 5-objectives revolving nosepiece is mounted on the stand under the stage. A free slot is used for adjusting the position of the reflected light illuminator. An additional objective can also be installed in the free slot to achieve extra magnification.

Objectives
Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield microscopy techniques.

Focusing mechanism
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and effortless. On the right, there is the coarse focusing lock knob for quick adjustments after changing the sample. On the left side, there is the focusing tension adjusting ring.

Mechanical stage
The object is moved by moving the stage along two axes. A round rotating stage plate with a hole of suitable diameter (10mm, 20mm, or 30mm) is installed in the center of the table. A specimen holder is used to hold the object in place.

Light source
The lamphouse has a 50W halogen bulb. It is bright enough to observe with 4x to 100x objectives used for brightfield, darkfield, and polarized light microscopy. The halogen bulb emits light with a color temperature that allows for comfortable work.

Reflected light illumination
The illumination system makes it possible to set up the Köhler illumination. The field and aperture diaphragm are pre-centered at the factory and require no additional centering. If necessary, the diaphragms can be adjusted with centering screws. The light source is centered along three axes. The removable analyzer and polarizer are for the polarization microscopy technique. The polarizer rotates 0–360°, but the analyzer does not rotate. A set of filters can help you adjust the color reproduction. The darkfield device is mounted in the stage.

Accessories
Additional accessories increase the technical performance of the microscope. Eyepieces and objectives extend the range of magnification. Digital cameras output the image to a computer screen or monitor. Calibration slides help you take measurements of objects.
