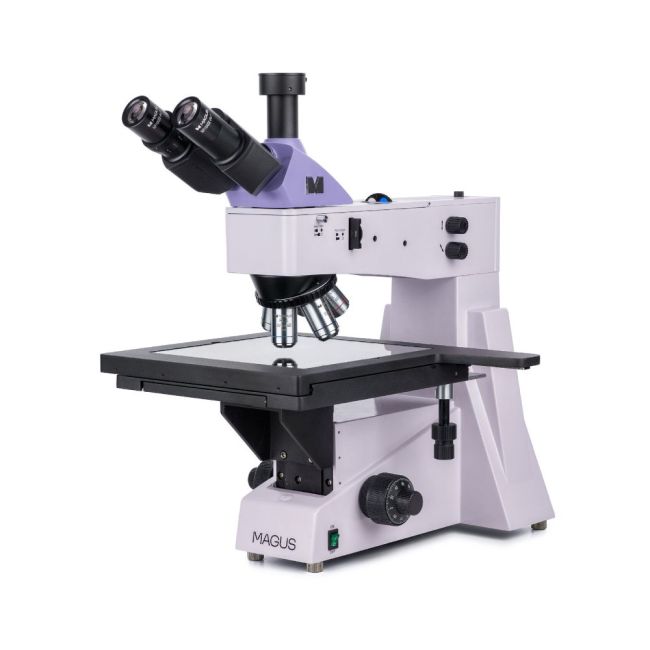

MAGUS METAL 650 BD

MAGUS METAL 650 BD

Key features

• Suitable for studying large and wide opaque samples
• Trinocular head with a trinocular tube for mounting a digital camera and with a 100:0 and 0:100 beam splitter
• Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield techniques
• Reflected light illuminator with a powerful 50W bulb for darkfield observations
• Köhler illumination in reflected light, centered elements of the reflected light illumination system (aperture and field diaphragm, light source)
• Reflected light brightfield, darkfield, and polarization microscopy techniques
• Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
• Large-size stage with a wide movement range along both axes
• Fine focusing scale value 0.7µm for easy focusing at high magnifications
• Large selection of additional eyepieces and objectives

Microscope head
Trinocular head with infinity plan achromatic objectives. The digital camera is mounted in the trinocular tube. The eyepiece/camera light path selection knob enables you to direct the light beam to either the digital camera or the eyepiece tube. The diopter adjustment is on the left tube.

Revolving nosepiece
5 objectives. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.

Objectives
Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield techniques.

Focusing mechanism
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy. On the right side, there is the coarse focusing lock knob, and the coarse focusing tension adjusting ring is on the left side. Fine focusing scale value: 0.7µm. Focusing at higher magnifications is easier.

Mechanical stage
The object is moved by moving the stage along two axes. The 280x270 mm stage with a 204mm moving range along both axes makes it easy to observe long and wide objects.

Light source
The reflected light illuminator has a 50W halogen bulb. It is bright enough to observe with 4x to 100x magnification objectives used for brightfield, darkfield, and polarized light microscopy. The halogen bulb emits light with a color temperature that allows for comfortable work.

Reflected light illumination
The microscope is equipped with a built-in analyzer and a removable polarizer. The polarizer rotates 0–360°, but the analyzer does not rotate. The aperture and field diaphragms make it possible to set up the Köhler illumination. Both diaphragms and the light source can be centered. There is a set of color filters. The darkfield device is integrated into the reflected light illuminator.

Accessories
There is a broad range of accessories to be used with the microscope: eyepieces, objectives, digital cameras, calibration slides, etc.
