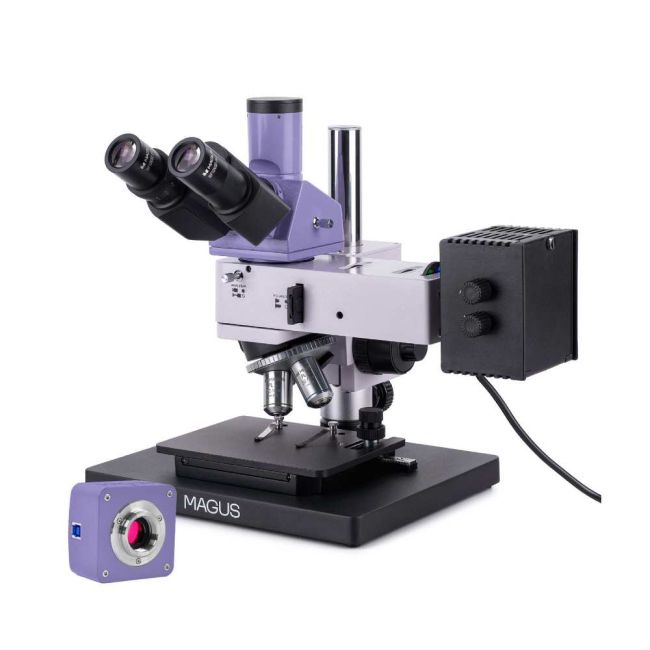

MAGUS METAL D630

MAGUS METAL D630

Key features of the microscope:

• Suitable for studying opaque objects of any height and shape
• Trinocular head with a trinocular tube for mounting a digital camera (100:0 and 0:100 beam splitter)
• Powerful 30W halogen reflected illuminator that provides bright natural light
• Köhler illumination, centered elements of the reflected light illumination system (aperture and field diaphragm, light source)
• Polarization device for reflected light observations
• Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
• Compact stand allows the microscope to be easily installed on small-sized furniture
• By mounting the optical system on a custom-designed stand, you can integrate the microscope into your production line
• Large selection of additional eyepieces and objectives

Key features of the camera:

• For brightfield microscopy 4x, 10x, 20x, and 40x objectives
• 6.3MP resolution: when working with low magnification objectives, the camera will allow you to see more fine details
• 59fps for observing samples that are moving, recording video, and moving the preparation without jerkiness or delays
• SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer, brighter, and more color-saturated images
• USB 3.0 interface for fast, smooth data transfer
• Software with photo, video recording, editing, external display, and linear and angular measurement

Digital camera
The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique.
The camera is equipped with a 6.3MP sensor and produces realistic images at a resolution of 3072x2048pix. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will enable you to see more fine details.
Video is recorded at 59fps at maximum resolution. Videos are smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with samples that are moving and is suitable for classroom demonstrations. The resolution can be reduced to 1536x1024pix, if required.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Microscope head
Trinocular head with infinity plan achromatic objectives. The digital camera is mounted in the trinocular tube. The eyepiece/camera light path selection knob allows you to direct the light beam to either the digital camera or the eyepiece tube. The diopter adjustment is on the left tube.

Revolving nosepiece
Five objectives. A free slot is used for centering the light source. An additional objective can also be installed in the free slot to achieve extra magnification.

Objectives
Plan achromatic objectives with a long working distance that are designed for the brightfield microscopy technique.

Focusing mechanism
Coaxial coarse and fine focusing knobs on both sides. The focus adjustment is smooth and easy. There is a coarse focusing tension adjusting ring.

Stand
The compact stand allows the microscope to be installed on surfaces of 40cm or higher. The unique design of the stand and focusing mechanism does not limit the height of the examined sample, and the two-axis stage is convenient for working with small objects. The optics together with the microscope illumination system are mounted on a specially designed tripod and can be integrated into the production line.

Light source
The reflected light illuminator has a 30W halogen bulb. It is bright enough to observe with 4x to 100x magnification objectives that are used for brightfield and polarized light microscopy. The halogen bulb emits light with a color temperature that allows for comfortable work.

Reflected light illumination
The microscope is equipped with a built-in analyzer and a removable polarizer. The polarizer rotates 0–360°, but the analyzer does not rotate. The aperture and field diaphragms make it possible to set up the Köhler illumination. Both diaphragms and the light source can be centered. The microscope comes with a set of filters.

Accessories
There is a broad range of accessories to be used with the microscope: eyepieces, objectives, digital cameras, calibration slides, etc.
