The microscope is designed for studying the microstructure of metals, alloys, semiconductor materials, paint coatings, and other opaque flat and polished samples. The reflected light illuminator allows for brightfield, darkfield, and polarization microscopy techniques.
Διαθέσιμο με Προπαραγγελία
Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

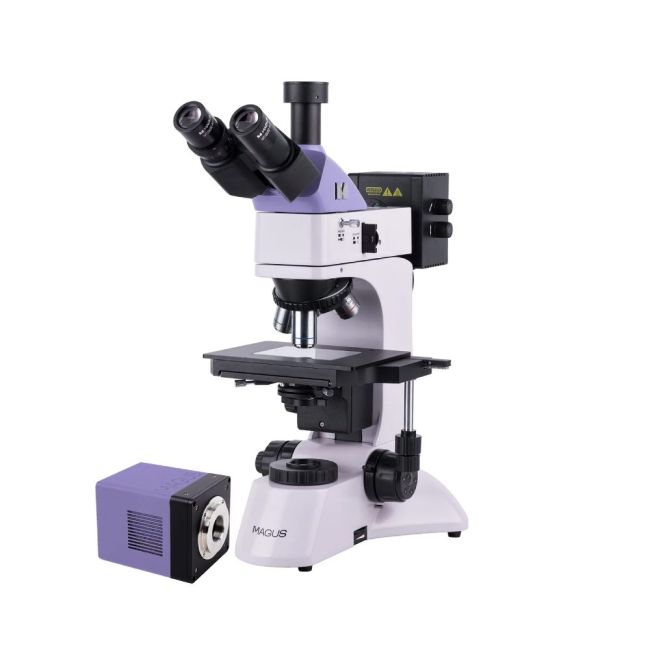

MAGUS METAL D600 BD
Key features of the microscope:
Key features of the camera:
The MAGUS CLM30 digital camera is designed for use in fluorescence and darkfield microscopy techniques.
The camera is equipped with an 8.3MP sensor and produces realistic images at a resolution of 3840x2160px. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will allow you to see finer details.
Video is recorded at 45fps or 70fps depending on its resolution: They are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with objects that are moving and is suitable for classroom demonstrations.
The camera is equipped with a USB3.0 interface. The data transfer speed is 10 times faster than USB2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.
Trinocular head with infinity plan achromatic objectives. The digital camera is mounted in the trinocular tube. The eyepiece/camera light path selection knob allows you to direct the light beam to either the digital camera or the eyepiece tube. The diopter adjustment is on the left tube.
5 objectives. A free slot is used for centering the reflected light source. An additional objective can also be installed in the free slot to achieve extra magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.
Plan achromatic objectives with long working distance designed for the brightfield and darkfield microscopy technique.
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy. On the right side, there is the coarse focusing lock knob and, on the left, there is a coarse focusing tension adjusting ring.
The object is moved by moving the stage along two axes. The maximum height of the observed sample must not exceed 20mm. The glass stage plate is used for observing translucent specimens.
Halogen bulbs are used for both reflected and transmitted illumination. Halogen bulbs emit light with a color temperature that allows for comfortable work. The 30W bulb is bright enough to observe with 4x to 100x magnification objectives that are used for brightfield and polarized light microscopy. The reflected light illuminator has a 50W bulb for comfortable darkfield observations.
Reflected light illumination
The microscope is equipped with a built-in analyzer and a removable polarizer. The polarizer rotates 0–360°, the analyzer does not rotate. The aperture and field diaphragms make it possible to set up the Köhler illumination. Both diaphragms and the light source can be centered. The microscope comes with a set of filters. The darkfield device is integrated into the reflected light illuminator.
Transmitted light illumination
An adjustable field diaphragm, a center-adjustable and height-adjustable Abbe condenser with NA 1.25 allow to set up the Köhler illumination. The condenser has a flip-down lens for low magnification objectives.
There is a broad range of accessories to be used with the microscope: eyepieces, objectives, digital cameras, calibration slides, etc.
In the box:
Available on request:
