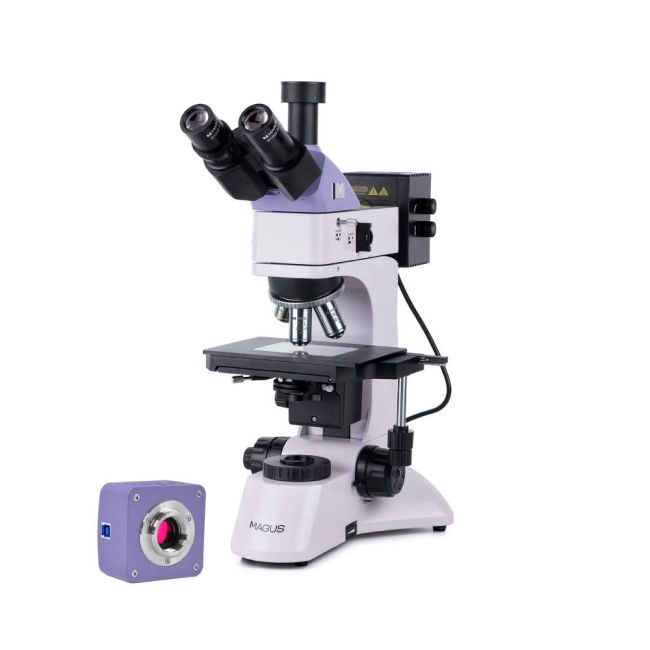

MAGUS METAL D600

MAGUS METAL D600

MAGUS METAL D600

MAGUS

The microscope is designed for studying the microstructure of metals, alloys, semiconductor materials, paint coatings, and other opaque flat and polished samples. The reflected light illuminator allows for brightfield and polarization microscopy techniques.

2.834,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-83024


MAGUS METAL D600


Key features of the microscope:

  • For studying opaque and translucent objects with a maximum height of 20mm
  • The top and bottom surfaces of the sample must be parallel
  • Trinocular head with a trinocular tube for mounting a digital camera (100:0 and 0:100 beamsplitter)
  • Powerful 30W halogen transmitted and reflected light illuminators that provide bright natural light
  • Köhler illumination, elements of the reflected light illumination system that can be centered (aperture and field diaphragm, light source)
  • Abbe condenser with a flip-down lens
  • Polarization device for reflected light observation
  • Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
  • A large selection of additional eyepieces and objectives


Key features of the camera:

  • For brightfield microscopy 4x, 10x, 20x, and 40x objectives
  • 6.3MP resolution: when working with low magnification objectives, the camera will allow you to see more fine details
  • 59fps for observing samples that are moving, recording video, and moving the preparation without jerkiness or delays
  • SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer, brighter, and more color-saturated images
  • USB 3.0 interface for fast, smooth data transfer
  • Software with photo, video recording, editing, external display, and linear and angular measurement


Digital camera

The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique.
The camera is equipped with a 6.3MP sensor and produces realistic images at a resolution of 3072x2048pix. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will enable you to see more fine details.
Video is recorded at 59fps at maximum resolution. Videos are smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with samples that are moving and is suitable for classroom demonstrations. The resolution can be reduced to 1536x1024pix, if required.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.


Microscope head

Trinocular head with infinity plan achromatic objectives. The digital camera is mounted in the trinocular tube. The eyepiece/camera light path selection knob allows you to direct the light beam to either the digital camera or the eyepiece tube. The diopter adjustment is on the left tube.


Revolving nosepiece

5 objectives. A free slot is used for centering the reflected light source. An additional objective can also be installed in the free slot to achieve extra magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.


Objectives

Plan achromatic objectives with long working distance designed for the brightfield microscopy technique.


Focusing mechanism

Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy. On the right side, there is the coarse focusing lock knob and, on the left, there is a coarse focusing tension adjusting ring.


Stage

The object is moved by moving the stage along two axes. The maximum height of the observed sample must not exceed 20mm. The glass stage plate is used for observing translucent specimens.


Light source

30W halogen bulbs are used in both reflected and transmitted light illuminators. Halogen bulbs emit light with a color temperature that allows for comfortable work. The 30W bulb is bright enough to observe with 4x to 100x magnification objectives that are used for brightfield and polarized light microscopy.


Reflected light illumination

The microscope is equipped with a built-in analyzer and a removable polarizer. The polarizer rotates 0–360°, the analyzer does not rotate. The aperture and field diaphragms make it possible to set up the Köhler illumination. Both diaphragms and the light source can be centered. The microscope comes with a set of color filters.


Transmitted light illumination

An adjustable field diaphragm, a center-adjustable and height-adjustable Abbe condenser with NA 1.25 allow to set up the Köhler illumination. The condenser has a flip-down lens for low magnification objectives.


Accessories

There is a broad range of accessories to be used with the microscope: eyepieces, objectives, digital cameras, calibration slides, etc.

Microscope specifications

  • Microscope design: upright
  • Image field: flat-field
  • Reflected light microscopy techniques: brightfield, polarized light
  • Transmitted light microscopy techniques: brightfield
  • Microscope magnification, x: 50–600 basic (*optional: 50–1000/1250/1500/2000/2500)
  • Tube length: infinity (∞)
  • Microscope head: trinocular
  • Trinocular head type: Siedentopf
  • Inclination: 30°
  • Microscope head magnification, x: 1
  • Interpupillary distance, mm: 48–75
  • Eyepiece diameter, mm: 30
  • Diopter adjustment, diopters: ±5 (left eyepiece)
  • Eyepieces, x/field, mm: 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with a scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
  • Revolving nosepiece: 5 objectives
  • Optical design: infinity plan achromatic objectives (∞), parfocal distance: 45mm
  • Objectives, microscopy technique: brightfield
  • Objectives, x/aperture/working distance, mm: PL L5x/0.12/26.1, PL L10x/0.25/20.2, PL L40x/0.60/3.98, PL L60x/0.70/2.08 (*optional: PL L20x/0.40/8.80, PL L50x/0.70/3.68, PL L80x/0.80/1.25, PL L100x/0.85/0.40 (dry))
  • Stage: 210x140mm, two-axis mechanical stage, with a glass stage plate
  • X- and Y-axis stage moving range, mm: 75/50
  • Focusing mechanism: coaxial coarse and fine focusing knobs located on both sides
  • Coarse focusing travel, mm: 25
  • Fine focusing scale value, μm: 2
  • Coarse focusing tension adjusting knob: +
  • Coarse focusing lock knob: +
  • Illumination: transmitted and reflected light
  • Reflected light illumination: built-in field and aperture diaphragms, built-in analyzer and removable polarizer; color filters: matt, yellow, green, blue
  • Reflected light source: 12V, 30W halogen bulb, brightness-adjustable
  • Transmitted light illumination: built-in field diaphragm, center-adjustable and height-adjustable Abbe condenser, NA 1.25, adjustable aperture diaphragm and flip-down lens, with locking screws
  • Transmitted light source: 12V, 30W halogen bulb, brightness-adjustable
  • Power supply, V/Hz: AC power supply, 220±22/50
  • Operating temperature range, °C (°F): 5… 35 (41… 95)
  • Operating humidity range, %: 20… 80


Camera specifications

  • Sensor: SONY Exmor CMOS
  • Color/monochrome: color
  • Megapixels: 6.3
  • Maximum resolution, pix: 3072x2048
  • Sensor size: 1/1.8" (7.37x4.92mm)
  • Pixel size, μm: 2.4x2.4
  • Light sensitivity: 425mV at 1/30s
  • Signal/noise ratio: 0.15mV at 1/30s
  • Exposure: 0.02ms–15s
  • Video recording: +
  • Frame rate, fps at resolution: 59@3072x2048; 59@1536x1024
  • Place of installation: trinocular tube, eyepiece tube instead of eyepiece
  • Image format: *.jpg, *.bmp, *.png, *.tif
  • Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
  • Spectral range, nm: 380–650 (with IR filter)
  • Shutter type: ERS (electronic rolling shutter)
  • White balance: auto/manual
  • Exposure control: auto/manual
  • Software features: image size, brightness, exposure time
  • Output: USB 3.0, 5Gb/s
  • System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display
  • Software: MAGUS View
  • Mount type: C-mount
  • Body: solid aluminum
  • Power supply: DC current, 5V, from the USB port of the PC
  • Operating temperature range, °C: –10... 50
  • Operating humidity range, %: 30… 80


In the box:

  • MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, transmitted light illuminator and condenser, focusing mechanism, stage and revolving nosepiece
  • Reflected light illuminator with a lamphouse
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
  • Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98mm
  • Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08mm
  • Eyepiece 10x/22mm with a long eye relief (2 pcs.)
  • Transparent stage plate
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Reflected light illuminator power cord
  • Dust cover
  • User manual and warranty card


Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
  • Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
  • Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25mm
  • Infinity plan achromatic objective: PL L100х/0.85 (dry) WD 0.40mm
  • Calibration slide
