MAGUS

The microscope is designed to observe the microstructure of metals and alloys, semiconductor materials, control the quality of paint coatings and study other opaque objects.

9.345,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-83035

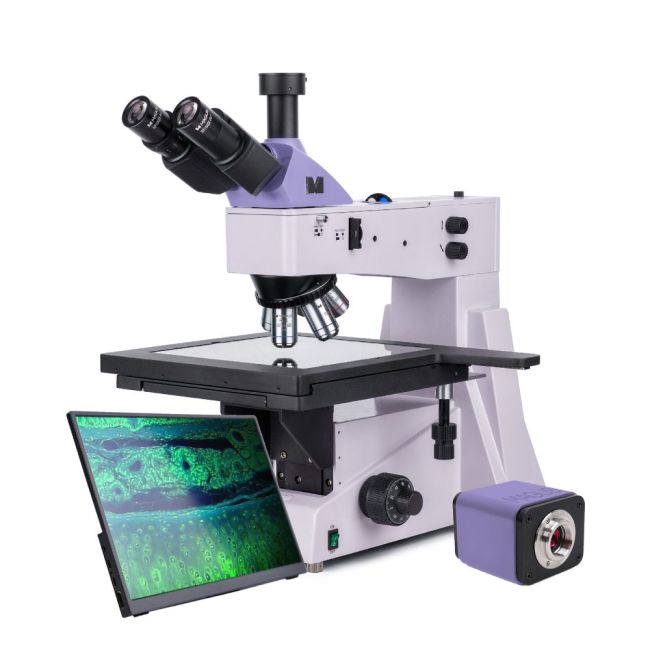

MAGUS METAL D650 BD LCD


Key features of the microscope:

  • Suitable for studying large and wide opaque samples
  • Trinocular head with a trinocular tube for mounting a digital camera and with a 100:0 and 0:100 beam splitter
  • Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield techniques
  • Reflected light illuminator with a powerful 50W bulb for darkfield observations
  • Köhler illumination in reflected light, centered elements of the reflected light illumination system (aperture and field diaphragm, light source)
  • Reflected light brightfield, darkfield, and polarization microscopy techniques
  • Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
  • Large-size stage with a wide movement range along both axes
  • Fine focusing scale value 0.7µm for easy focusing at high magnifications
  • Large selection of additional eyepieces and objectives


Key features of the camera:

  • The camera operates autonomously without a connection to a PC and via HDMI interface. Can be connected to a PC via Wi-Fi and a USB3.0 interface
  • Auto switching between 4K and Full HD depending on monitor resolution
  • 30fps for observing moving objects, recording video, and moving the sample without jerkiness or delays
  • SONY Exmor/Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
  • Software with photo, video recording, editing, external display functions, linear and angular measurements


Digital camera

MAGUS CHD40 is a digital HDMI camera with three video interfaces and automatic switching between 4K and Full HD depending on the monitor resolution.
The camera is equipped with an 8MP sensor and produces realistic images in 4K resolution (3840x2160px) when connected via HDMI or USB3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080px).
The camera uses an HDMI interface to connect to a TV, monitor, or projector directly. In this mode, the camera operates autonomously without a connection to a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB3.0. Video is recorded at 30fps.
The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.


Monitor

The MAGUS MCD40 Monitor is designed to use a visualization system of the MAGUS microscope.
It is connected to a camera mounted on the microscope to display real-time images. It supports MAGUS 4K HDMI cameras.
The screen diagonal is 13.3 inches. The IPS matrix provides bright images with large viewing angles. If you look at the display at an angle, the color reproduction is not distorted.
The display can be placed on a folding stand on a table or shelf or mounted directly to the camera or microscope stand.


Microscope head

Trinocular head with infinity plan achromatic objectives. The digital camera is mounted in the trinocular tube. The eyepiece/camera light path selection knob enables you to direct the light beam to either the digital camera or the eyepiece tube. The diopter adjustment is on the left tube.


Revolving nosepiece

5 objectives. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.


Objectives

Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield techniques.


Focusing mechanism

Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy. On the right side, there is the coarse focusing lock knob, and the coarse focusing tension adjusting ring is on the left side. Fine focusing scale value: 0.7µm. Focusing at higher magnifications is easier.


Mechanical stage

The object is moved by moving the stage along two axes. The 280x270 mm stage with a 204mm moving range along both axes makes it easy to observe long and wide objects.


Light source

The reflected light illuminator has a 50W halogen bulb. It is bright enough to observe with 4x to 100x magnification objectives used for brightfield, darkfield, and polarized light microscopy. The halogen bulb emits light with a color temperature that allows for comfortable work.


Reflected light illumination

The microscope is equipped with a built-in analyzer and a removable polarizer. The polarizer rotates 0–360°, but the analyzer does not rotate. The aperture and field diaphragms make it possible to set up the Köhler illumination. Both diaphragms and the light source can be centered. There is a set of color filters. The darkfield device is integrated into the reflected light illuminator.


Accessories

There is a broad range of accessories to be used with the microscope: eyepieces, objectives, digital cameras, calibration slides, etc.

Microscope specifications

  • Microscope design: upright
  • Image field: flat-field
  • Reflected light microscopy techniques: brightfield, darkfield, polarized light
  • Microscope magnification, x: 50–500 basic (*optional: 50–1000/1250/1500/2000/2500)
  • Tube length: infinity (∞)
  • Microscope head: trinocular
  • Trinocular head type: Siedentopf
  • Inclination: 30°
  • Interpupillary distance, mm: 48–75
  • Eyepiece diameter, mm: 30
  • Diopter adjustment, diopters: ±5 (left eyepiece)
  • Eyepieces, x/field, mm: 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with a scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
  • Revolving nosepiece: 5 objectives
  • Optical design: infinity plan achromatic objectives (∞), parfocal distance: 45mm
  • Objectives, illumination technique: darkfield
  • Objectives, x/aperture/working distance, mm: PL L5x/0.12/9.7 BD, PL L10x/0.25/9.3 BD, PL L20x/0.40/7.2 BD, PL L50x/0.70/2.5 BD, PL L80x/0.80/0.8 BD (*optional: PL L40x/0.60/3.0 BD, PL L60x/0.70/1.9 BD, PL L100x/0.85/0.4 BD (dry))
  • Mechanical stage: 280x270 mm, two-axis mechanical
  • X- and Y-axis stage moving range, mm: 204/204
  • Focusing mechanism: coaxial coarse and fine focusing knobs located on both sides
  • Coarse focusing travel, mm: 30
  • Coarse focusing travel, mm/circle: 13.1
  • Fine focusing scale value, μm: 0.7
  • Coarse focusing tension adjusting knob: +
  • Coarse focusing lock knob: +
  • Illumination: reflected light
  • Reflected light illuminator: darkfield device, built-in field and aperture diaphragms, built-in analyzer and removable polarizer; color filters: matt, yellow, green, blue
  • Reflected light source: 12V, 50W halogen bulb, brightness-adjustable
  • Power supply, V/Hz: 220±22V/50Hz via an AC power supply
  • Operating temperature range, °C (°F): 5… 35 (41… 95)
  • Operating humidity range, %: 20… 80


Camera specifications

  • Sensor: SONY Exmor/Starvis CMOS
  • Color/monochrome: color
  • Megapixels: 8
  • Maximum resolution, pix: 3840x2160
  • Sensor size: 1/1.2'' (11.14x6.26mm)
  • Pixel size, μm: 2.9x2.9
  • Auto focus: −
  • Interface: HDMI 1.4, Wi-Fi, USB3.0
  • Memory card: SD up to 32GB
  • Option to mount additional equipment: mouse (USB), flash stick (USB), Wi-Fi module (USB)
  • Light sensitivity: 1028mV with 1/30s
  • Signal/noise ratio: 0.13mV with 1/30s
  • Exposure: 0.14ms–1000ms
  • Video recording: +
  • Frame rate, fps at resolution: 30@3840х2160 (HDMI); 30@1920х1080 (Wi-Fi); 30@3840х2160 (USB3.0)
  • Place of installation: trinocular tube, eyepiece tube instead of an eyepiece
  • Image format: *.jpg, *.tif
  • Video format: *.h264/*.h265, *.mp4
  • Spectral range, nm: 380–650 (with IR filter)
  • Shutter type: ERS (electronic rolling shutter)
  • System requirements: Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 4GB RAM, USB2.0 port, RJ45, CD-ROM, 19" or larger display
  • Software: HDMI: built-in; USB: MAGUS View
  • Mount type: C-mount
  • Body: CNC aluminum alloy
  • Power supply: DC adapter 12V, 1A
  • Specifications of the DC power adapter: input: AC voltage 100–240V, 50/60Hz; output: DC voltage 12V/1A
  • Operating temperature range, °C (°F): −10... 50 (14… 122)
  • Operating humidity range, %: 30… 80


Monitor specifications

  • Type of matrix: IPS
  • Screen diagonal, inch: 13.3
  • Resolution, pix: 3840x2160 (4K)
  • Aspect ratio: 16:9
  • Brightness, cd/m²: 400
  • Number of displayed colors: 16.7 m
  • Contrast: 1000:1
  • Horizontal/vertical viewing angle, °: 178/178
  • Size of the visible screen area (WxH), mm: 295x165
  • Pixel pitch (WxH), mm: 0.154x0.154
  • Display refresh rate, Hz: 60
  • Type of matrix backlight: LED
  • LED backlight lifetime, h: 50000
  • Interface: HDMI
  • Operating temperature range, °C (°F): −15... 55 (5… 131)
  • Operating humidity range, %: 10… 90
  • Power supply: AC 110–220V, DC 5–12V/1A (Type-C)
  • Power consumption, mA: 12 (max.)


In the box:

  • MAGUS CHD40 Digital Camera (digital camera, HDMI cable (1.5m), USB3.0 cable (1.5m), USB mouse, 32GB SD memory card, USB Wi-Fi adapter (2pcs.), AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card)
  • MAGUS MCD40 LCD Monitor
  • Base with a power input, reflected light source, focusing mechanism, stage, and revolving nosepiece
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7mm
  • Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3mm
  • Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2mm
  • Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5mm
  • Infinity plan achromatic objective: PL L80x/0.80 BD WD: 0.8mm
  • Eyepiece 10x/22mm with eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Dust cover
  • User manual and warranty card


Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0mm
  • Infinity plan achromatic objective: PL L60x/0.70 BD WD: 1.9mm
  • Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD: 0.4mm
  • Calibration slide
