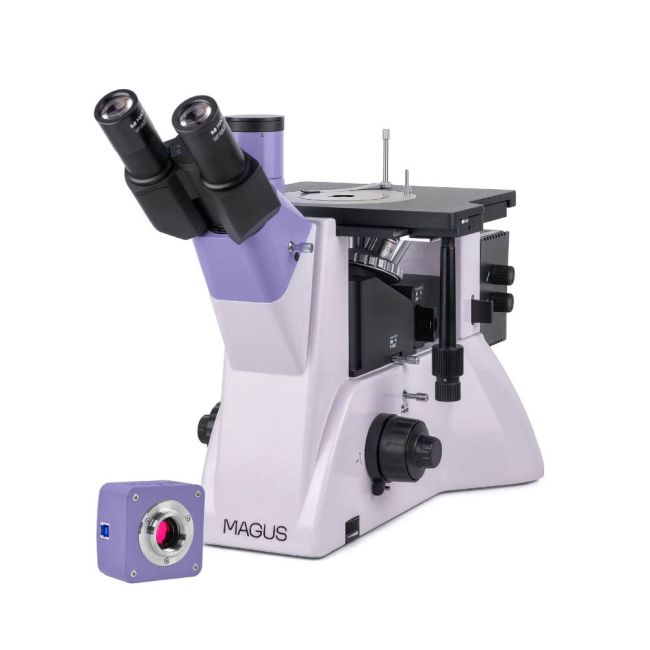

MAGUS METAL VD700

MAGUS METAL VD700

MAGUS METAL VD700

MAGUS

The microscope is designed for studying the microstructure of metals and alloys, semiconductor materials, and other opaque specimens.

4.094,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-83036


MAGUS METAL VD700


Key features of the microscope:

  • Suitable for studying opaque dimensional objects up to 2kg
  • Trinocular head with the option to adjust eye relief
  • Two options for mounting a digital camera and monitor: trinocular tube of the trinocular head and camera side port on the body; beam splitting on the trinocular head (50:50), beam splitting on the body (100:0/0:100)
  • Powerful 30W halogen reflected light illuminator that provides bright natural light
  • Köhler illumination, centered illumination system elements, polarization device
  • Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
  • Large-sized stage with a round rotating stage plate with 10mm, 20mm, and 30mm holes
  • Large selection of additional eyepieces and objectives


Key features of the camera:

  • For brightfield microscopy 4x, 10x, 20x, and 40x objectives
  • 6.3MP resolution: when working with low magnification objectives, the camera will allow you to see more fine details
  • 59fps for observing samples that are moving, recording video, and moving the preparation without jerkiness or delays
  • SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer, brighter, and more color-saturated images
  • USB 3.0 interface for fast, smooth data transfer
  • Software with photo, video recording, editing, external display, and linear and angular measurement


Digital camera

The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique.
The camera is equipped with a 6.3MP sensor and produces realistic images at a resolution of 3072x2048pix. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will enable you to see more fine details.
Video is recorded at 59fps at maximum resolution. Videos are smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with samples that are moving and is suitable for classroom demonstrations. The resolution can be reduced to 1536x1024pix, if required.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.


Microscope head

Tube length – infinity (∞). When assembling the microscope, the user can rotate the eyepiece tubes 180° and adjust the eye relief to fit their height. There is a trinocular head.
The monitor is mounted in the trinocular tube of the trinocular head and the digital camera – in the camera side port on the microscope body. The trinocular head is equipped with an 50:50 beam splitter, and there is a 2-position beam splitter (100:0/ 0:100) on the body.


Revolving nosepiece

The 5-objectives revolving nosepiece is mounted on the stand under the stage.


Objectives

Plan achromatic objectives with a long working distance that is designed for the brightfield microscopy technique. For the darkfield microscopy technique, choose the MAGUS Metal V700 BD.


Focusing mechanism

Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and effortless. On the right, there is the coarse focusing lock knob for quick adjustments after changing the sample. On the left side, there is the coarse focusing tension adjusting ring.


Mechanical stage

The object is moved by moving the stage along two axes. A round rotating stage plate with a hole of suitable diameter (10mm, 20mm, or 30mm) is installed in the center of the table. A specimen holder is used for holding the object in place.


Light source

The lamphouse has a 30W halogen bulb. It is bright enough to observe with 4x to 100x magnification objectives that are used for the brightfield and polarized light microscopy techniques. The halogen bulb emits light with a color temperature that allows for comfortable work.


Reflected light illumination

The illumination system makes it possible to set up the Köhler illumination. The field and aperture diaphragm are pre-centered at the factory and require no additional centering. If necessary, the diaphragms can be adjusted with centering screws. The light source is centered along three axes. The removable analyzer and polarizer are for the polarization microscopy technique. The polarizer rotates 0–360°, the analyzer does not rotate. A set of filters can help you adjust the color reproduction.


Accessories

Additional accessories will increase the technical performance of the microscope. Eyepieces and objectives extend the magnification range. Digital cameras output the image to a computer screen or monitor. Calibration slides help you take measurements of objects.

Microscope specifications

  • Microscope design: inverted
  • Image field: flat-field
  • Reflected light microscopy techniques: brightfield, polarized light
  • Microscope magnification, x: 50–1000 basic (*optional: 50–1250/1500/2000/2500)
  • Tube length: infinity (∞)
  • Microscope head type: trinocular
  • Microscope head: Siedentopf, rotatable 180°
  • Inclination: 45°
  • Interpupillary distance, mm: 48–75
  • Eyepiece diameter, mm: 30
  • Eyepieces, x/field, mm: 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with a scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
  • Revolving nosepiece: 5 objectives
  • Optical design: infinity plan achromatic objectives (∞), parfocal distance: 45mm
  • Objectives, illumination technique: brightfield
  • Objectives, x/aperture/working distance, mm: PL L5x/0.12/26.1, PL L10x/0.25/20.2, PL L20x/0.40/8.80, PL L50x/0.70/3.68, PL L100x/0.85/0.40 (dry) (*optional: PL L40x/0.60/3.98, PL L60x/0.70/2.08, PL L80x/0.80/1.25)
  • Mechanical stage: 242x200 mm, two-axis mechanical stage; round rotating stage plate Ø130mm with holes Ø10mm, Ø20mm and Ø30mm
  • X- and Y-axis stage moving range, mm: 30/30
  • Focusing mechanism: coaxial coarse and fine focusing knobs located on both sides
  • Fine focusing scale value, μm: 2
  • Coarse focusing tension adjusting knob: +
  • Coarse focusing lock knob: +
  • Illumination: reflected light
  • Reflected light illuminator: built-in field and aperture diaphragms, removable analyzer and polarizer; color filters: matt, yellow, green, blue
  • Reflected light source:12V, 30W halogen bulb, brightness-adjustable
  • Power supply, V/Hz: 220±22V/50Hz via an AC power supply
  • Operating temperature range, °C (°F): 5… 35 (41… 95)
  • Operating humidity range, %: 20… 80


Camera specifications

  • Sensor: SONY Exmor CMOS
  • Color/monochrome: color
  • Megapixels: 6.3
  • Maximum resolution, pix: 3072x2048
  • Sensor size: 1/1.8" (7.37x4.92mm)
  • Pixel size, μm: 2.4x2.4
  • Light sensitivity: 425mV at 1/30s
  • Signal/noise ratio: 0.15mV at 1/30s
  • Exposure: 0.02ms–15s
  • Video recording: +
  • Frame rate, fps at resolution: 59@3072x2048; 59@1536x1024
  • Place of installation: trinocular tube, eyepiece tube instead of eyepiece
  • Image format: *.jpg, *.bmp, *.png, *.tif
  • Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
  • Spectral range, nm: 380–650 (with IR filter)
  • Shutter type: ERS (electronic rolling shutter)
  • White balance: auto/manual
  • Exposure control: auto/manual
  • Software features: image size, brightness, exposure time
  • Output: USB 3.0, 5Gb/s
  • System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display
  • Software: MAGUS View
  • Mount type: C-mount
  • Body: solid aluminum
  • Power supply: DC current, 5V, from the USB port of the PC
  • Operating temperature range, °C: –10... 50
  • Operating humidity range, %: 30… 80


In the box:

  • MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, focusing mechanism, stage, and revolving nosepiece
  • Lamphouse
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
  • Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
  • Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
  • Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
  • Eyepiece 10x/22mm with eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Dust cover
  • User manual and warranty card


Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98mm
  • Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08mm
  • Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25mm
  • Calibration slide
