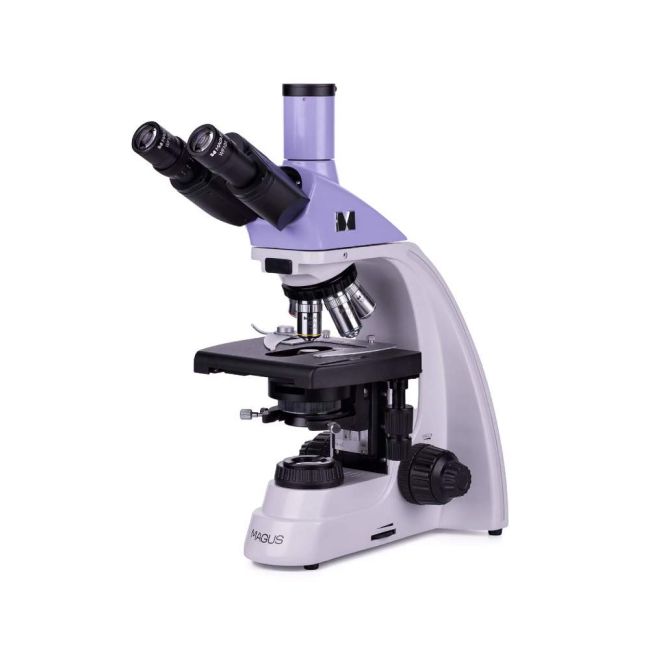

The microscope is suitable for observing transparent and translucent biological samples, such as smears and cross sections in transmitted light in a bright field. The installation of additional accessories will allow for darkfield, phase-contrast, and polarization methods. The microscope is suitable for daily laboratory work, research, and teaching.
1.049,00 €
Διαθέσιμο, συνήθως σε 5-14 μέρες
Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που δεν κρατάμε σε στοκ αλλά διατίθενται μόνο κατόπιν παραγγελίας ή έχει προαναγγελθεί η κυκλοφορία τους στην αγορά από τον κατασκευαστή. Για παραγγελίες στα είδη αυτά απαιτείται προκαταβολή, ανάλογη με τη συνολική αξία της παραγγελίας σας..
Μόλις λάβουμε την παραγγελία σας, θα σας ειδοποιήσουμε με e-mail ή τηλεφωνικά, για τον ακριβή χρόνο παράδοσης και το ύψος της προκαταβολής.
Trinocular head with a trinocular tube to mount a digital camera and an option to adjust an eyepiece
Illumination – powerful 30W halogen bulb for bright natural light
Ergonomic design for comfortable long-term operation
Wide range of compatible optional accessories
Microscope arm (carrying handle)
Microscope head Trinocular head with infinity achromatic objectives. Eyepiece tubes rotate 360°. The user can adjust the eye relief on the eyepiece to fit their height. The digital camera is mounted instead of an eyepiece in the trinocular tube.
Revolving nosepiece 5 objectives. A slot for the installation of an additional lens that increases the range of magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.
Focusing mechanism Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can put their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy.
Stage To ensure ergonomic operation of the stage, it does not have an X-axis positioning rack. The mechanism that has been mounted into the stage moves the object smoothly. The slide holder is attached by way of two screws and can be removed for easy operation.
Abbe condenser The condenser has a slot for a darkfield slider or a phase contrast slider. The installation of a slider saves time when changing the observation method.
Illumination A halogen bulb emits warm colors that the eyes are used to. The bulb replacement requires minimal effort. The 30-watt bulb is bright enough for brightfield, darkfield, and phase-contrast methods.
Accessories There is a line of accessories designed for the microscope: eyepieces, objectives, darkfield, phase-contrast and polarization devices, digital cameras, and calibration slides.
Stage: double layer mechanical stage, stage size: 180mm×150mm, without a positioning rack
Moving range, mm: 75/50
Condenser: Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable diaphragm, a slot for a darkfield slider and phase-contrast slider, dovetail mount
Diaphragm: adjustable iris diaphragm
Focusing mechanism: coaxial coarse and fine focusing knobs located on both sides
