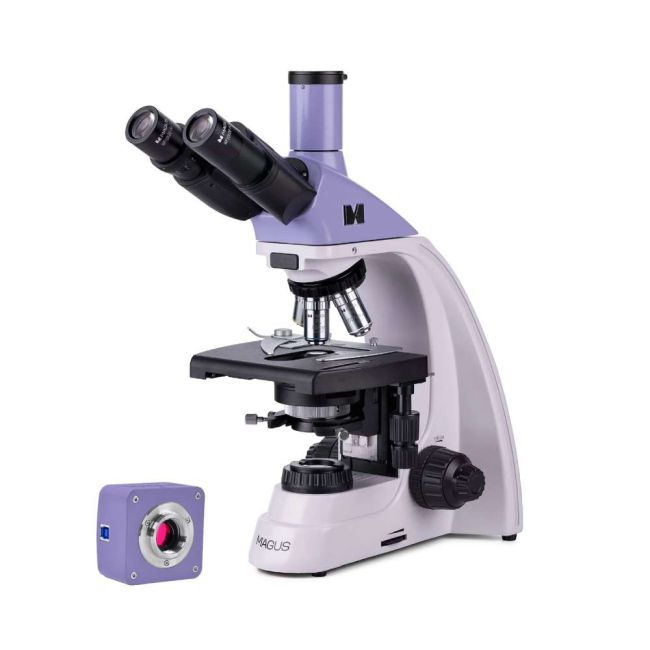

MAGUS BIO D250T

MAGUS

Γίνετε ο πρώτος που θα αξιολογήσει το προϊόν

The microscope is suitable for observing transparent and translucent biological samples, such as smears and cross sections in transmitted light in a bright field. The installation of additional accessories will allow for darkfield, phase-contrast, and polarization methods. The microscope is suitable for daily laboratory work, research, and teaching.

2.094,00 €

Διαθέσιμο, συνήθως σε 5-14 μέρες

Διαθεσιμότητα: Σε απόθεμα

SKU

LEV-83008

Ποσότητα:

Περιγραφή

MAGUS BIO D250T

Key features of the microscope:

Trinocular head with a trinocular tube to mount a digital camera and an option to adjust an eyepiece
Illumination – powerful 30W halogen bulb for bright natural light
Ergonomic design for comfortable long-term operation
Wide range of compatible optional accessories
Microscope arm (carrying handle)

Key features of the camera:

For brightfield and darkfield microscopy with 40x, 60x, and 100x objectives; large pixel camera with 8935mV light sensitivity with 1/30s for darkfield microscopy observations at high magnification
The camera resolution is 1920x1080px: an ideal choice for displaying images on a Full HD monitor
96fps for observing objects that are moving, recording video and moving the sample without jerkiness or delays
SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
USB3.0 interface for fast, smooth data transfer
Software with photo, video recording, editing, external display functions, linear and angular measurements

Digital camera
The MAGUS CDF50 digital camera is designed for the brightfield microscopy technique. It offers a low noise level and high light sensitivity.
The camera is equipped with a 2.1MP sensor and delivers realistic Full HD images (1920x1080px) when observing with 40x, 60x, and 100x objectives.
Video is recorded at 96fps at maximum resolution: It is smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with moving objects and is suitable for classroom demonstrations.
The camera is equipped with a USB3.0 interface. The data transfer speed is 10 times faster than USB2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Microscope head
Trinocular head with infinity plan achromatic objectives. Eyepiece tubes rotate 360°. The user can adjust the eye relief on the eyepiece to fit their height. The digital camera is mounted instead of an eyepiece in the trinocular tube.

Revolving nosepiece
5 objectives. A slot for the installation of an additional lens that increases the range of magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.

Focusing mechanism
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can put their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy.

Stage
To ensure ergonomic operation of the stage, it does not have an X-axis positioning rack. The mechanism that has been mounted into the stage moves the object smoothly. The slide holder is attached by way of two screws and can be removed for easy operation.

Abbe condenser
The condenser has a slot for a darkfield slider or a phase contrast slider. The installation of a slider saves time when changing the observation method.

Illumination
A halogen bulb emits warm colors that the eyes are used to. The bulb replacement requires minimal effort. The 30-watt bulb is bright enough for brightfield, darkfield, and phase-contrast methods.

Accessories
There is a line of accessories designed for the microscope: eyepieces, objectives, darkfield, phase-contrast and polarization devices, digital cameras, and calibration slides.

Βίντεο

Επιπλεόν Χαρακτηριστικά

Microscope specifications

Microscope design: straight-tube
Image field: flat-field
Transmitted light microscopy techniques: brightfield, darkfield (optional), luminescence (optional), polarized light (optional), phase contrast (optional)
Microscope magnification, x: 40–1000 basic configuration (*optional: 40–1200/1250/1500/1600/2000/2500)
Tube length: infinity (∞)
Microscope head type: trinocular
Microscope head: Gemel head (Siedentopf, 360° rotation)
Inclination: 30°
Microscope head magnification, x: 1
Interpupillary distance, mm: 48–75
Eyepiece diameter, mm: 30
Diopter adjustment, diopters: ±5 (left barrel)
Eyepieces, x/field, mm: 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Revolving nosepiece: 5 objectives
Optical design: infinity plan achromatic objectives (∞), parfocal distance: 45mm
Objectives, x/aperture/working distance, mm: 4x/0.1/21; 10x/0.25/5; 40x/0.65/0.66; 100x/1.25 oil/0.36; (*optional: 20x/0.4/8.8; 60x/0.80/0.46)
Spring-loaded retractable assembly: 40x, 60x, 100x
Stage: double layer mechanical stage, stage size: 180mm×150mm, without a positioning rack
Moving range, mm: 75×50
Condenser: Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable diaphragm, a slot for a darkfield slider and phase-contrast slider, dovetail mount
Diaphragm: adjustable iris diaphragm
Focusing mechanism: coaxial coarse and fine focusing knobs located on both sides
Coarse focusing travel, mm: 21
Coarse focusing travel, mm/circle: 39.8
Fine focusing scale value, μm: 2
Coarse focusing tension adjusting knob: +
Coarse focusing lock knob: +
Illumination: transmitted
Transmitted light source: 12V/30W halogen bulb, G4
Phase-contrast device: *optional: phase-contrast turret condenser, phase-contrast objective (10x, 20x, 40x, 100x), centering telescope
Darkfield condenser: *optional: dry darkfield condenser (for dry objectives), oil darkfield condenser (for 100x oil objectives)
Polarization device: *optional: polarizer placed on the collector; analyzer inserted in the slot above the revolving nosepiece
Power supply, V/Hz: AC power supply, 220±22/50
Operating temperature range, °C (°F): 5… 35 (41… 95)
Operating humidity range, %: 20… 80
Dimensions without packaging (W×H×L), mm max.: 200x436x400

Camera specifications

Sensor: SONY Exmor CMOS
Color/monochrome: color
Megapixels: 2.1
Maximum resolution, px: 1920x1080
Sensor size: 1/1.2'' (11.14x6.26mm)
Pixel size, μm: 5.8x5.8
Light sensitivity: 8935mV with 1/30s
Signal/noise ratio: 0.6mV with 1/30s
Exposure: 0.014ms–15s
Video recording: +
Frame rate, fps at resolution: 96@1920x1080
Place of installation: trinocular tube, eyepieces tube instead of an eyepiece
Image format: *.jpg, *.bmp, *.png, *.tif
Video format: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
Spectral range, nm: 380–650 (with IR filter)
Shutter type: ERS (electronic rolling shutter)
White balance: auto/manual
Exposure control: auto/manual
Software features: image size, brightness, exposure time
Output: USB3.0, 5Gb/s
System requirements: Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display
Software: MAGUS View
Mount type: C-mount
Body: CNC aluminum alloy
Power supply: DC current, 5V, with the USB port of the PC
Operating temperature range, °C (°F): −10... 50 (14… 122)
Operating humidity range, %: 30… 80

In the box:

MAGUS CDF50 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
Base with a power input, transmitted light source, focusing mechanism, stage, condenser, and revolving nosepiece
Trinocular head
Infinity plan achromatic objective: 4x/0.1
Infinity plan achromatic objective: 10x/0.25
Infinity plan achromatic objective: 40x/0.65 (spring-loaded)
Infinity plan achromatic objective: 100x/1.25 (spring-loaded)
Eyepieces 10x/22mm with a long eye relief (2 pcs.)
Eyecups (2 pcs.)
Filters (4 pcs.)
C-mount camera adapter
Bottle of the immersion oil
Hex key wrench
AC power cord
Dust cover
User manual and warranty card

Available on request:

10x/22mm eyepiece with scale
12.5x/14mm eyepiece (2 pcs.)
15x/15mm eyepiece (2 pcs.)
20x/12mm eyepiece (2 pcs.)
25x/9mm eyepiece (2 pcs.)
Infinity plan achromatic objective: 20x/0.4
Infinity plan achromatic objective: 60x/0.80 (spring-loaded)
Phase-contrast device
Phase slider
Darkfield condenser NA 0.9
Oil darkfield condenser NA 1.36–1.25
Darkfield slider
Polarization devices
Calibration slide
