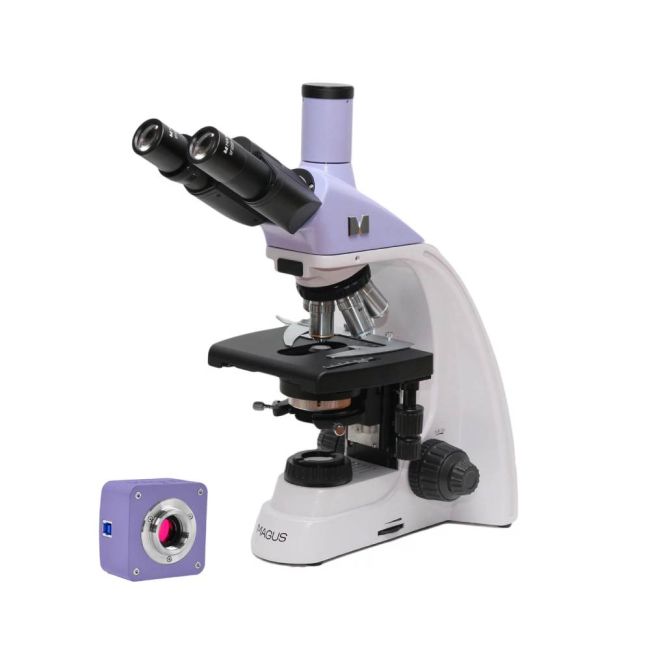

The microscope is suitable for observing transparent and translucent biological samples, such as smears and cross sections in transmitted light in a bright field. The installation of additional accessories will allow for darkfield, phase-contrast, and polarization methods. The microscope is suitable for daily laboratory work, research, and teaching.
1.469,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα


Key features of the microscope:

  • Trinocular head with a trinocular tube to mount a digital camera and an option to adjust an eyepiece
  • Illumination – powerful 30W halogen bulb for bright natural light
  • Ergonomic design for comfortable long-term operation
  • Wide range of compatible optional accessories
  • Microscope arm (carrying handle)

Key features of the camera:

  • For brightfield and darkfield microscopy observations with 40х, 60х, and 100х objectives; it is the most affordable camera for darkfield microscopy with a large pixel sensor.
  • The camera resolution is 1920x1080px: It is an ideal choice for displaying images on a Full HD monitor.
  • 125fps for observing samples that are moving, recording video, and moving the sample without jerkiness or delays.
  • SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
  • USB3.0 interface for fast, smooth data transfer
  • Software with photo, video recording, editing, external display, linear and angular measurements

Digital camera

The MAGUS CDF10 digital camera is designed for the brightfield and darkfield microscopy technique. It offers a low noise level and high light sensitivity.
The camera is equipped with a 2MP sensor and delivers realistic Full HD images (1920x1080px) when observing with 40x, 60x, and 100x objectives.
Video is recorded at 125fps at maximum resolution: They are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with moving samples and is ideal for classroom demonstrations.
The camera is equipped with the USB3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Microscope head

Trinocular head with infinity achromatic objectives. Eyepiece tubes rotate 360°. The user can adjust the eye relief on the eyepiece to fit their height. The digital camera is mounted instead of an eyepiece in the trinocular tube.

Revolving nosepiece
5 objectives. A slot for the installation of an additional lens that increases the range of magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.

Focusing mechanism

Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can put their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy.


To ensure ergonomic operation of the stage, it does not have an X-axis positioning rack. The mechanism that has been mounted into the stage moves the object smoothly. The slide holder is attached by way of two screws and can be removed for easy operation.

Abbe condenser

The condenser has a slot for a darkfield slider or a phase contrast slider. The installation of a slider saves time when changing the observation method.


A halogen bulb emits warm colors that the eyes are used to. The bulb replacement requires minimal effort. The 30-watt bulb is bright enough for brightfield, darkfield, and phase-contrast methods.


There is a line of accessories designed for the microscope: eyepieces, objectives, darkfield, phase-contrast and polarization devices, digital cameras, and calibration slides.

Microscope Specifications:

  • Microscope design: straight-tube
  • Image field: flat-field
  • Transmitted light microscopy techniques: brightfield, darkfield (optional), luminescence (optional), polarized light (optional), phase contrast (optional)
  • Microscope magnification, x: 40–1000 basic configuration (*optional: 40–1500/1600/2000)
  • Tube length: infinity (∞)
  • Microscope head type: trinocular
  • Microscope head: Gemel head (Siedentopf, 360° rotation)
  • Inclination: 30°
  • Microscope head magnification, x: 1
  • Interpupillary distance, mm: 48–75
  • Eyepiece diameter, mm: 23.2
  • Diopter adjustment, diopters: ±5 (left barrel)
  • Eyepieces, x/field, mm: 10х/18mm, eye relief: 10mm (*optional: 15x/11mm, 16x/11mm; 20x/11mm)
  • Revolving nosepiece: 5 objectives
  • Optical design: infinity achromatic objectives (∞), parfocal distance: 45mm
  • Objectives, x/aperture/working distance, mm: 4x/0.1/18.89; 10x/0.25/5.95; 40x/0.65/0.775; 100x/1.25 oil/0.36; (*optional: 20х/0.4/2.61)
  • Spring-loaded retractable assembly: 40x, 60x, 100x
  • Stage: double layer mechanical stage, stage size: 180mm×150mm, without a positioning rack
  • Moving range, mm: 75/50
  • Condenser: Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable diaphragm, a slot for a darkfield slider and phase-contrast slider, dovetail mount
  • Diaphragm: adjustable iris diaphragm
  • Focusing mechanism: coaxial coarse and fine focusing knobs located on both sides
  • Coarse focusing travel, mm: 21
  • Coarse focusing travel, mm/circle: 39.8
  • Fine focusing scale value, μm: 2
  • Coarse focusing tension adjusting knob: +
  • Coarse focusing lock knob: +
  • Illumination: transmitted
  • Transmitted light source: 12V/30W halogen bulb, G4
  • Phase-contrast device: *optional: phase-contrast turret condenser, phase-contrast objective (10x, 20x, 40x, 100x), centering telescope
  • Darkfield condenser: *optional: dry darkfield condenser (for dry objectives), oil darkfield condenser (for 100x oil objectives)
  • Polarization device: *optional: polarizer placed on the collector; analyzer inserted in the slot above the revolving nosepiece
  • Power supply, V/Hz: AC power supply, 220±22/50
  • Operating temperature range, °C (°F): 5… 35 (41… 95)
  • Operating humidity range, %: 20… 80
  • Dimensions without packaging (W×H×L), mm max.: 200x436x400

Camera Specifications:

  • Sensor: SONY Exmor CMOS
  • Color/monochrome: color
  • Megapixels: 2
  • Maximum resolution, pix: 1920x1080
  • Sensor size: 1/2" (7.2x4.05mm)
  • Pixel size, μm: 3.75x3.75
  • Light sensitivity: 2350mV at 1/30s
  • Signal/noise ratio: 0.15mV at 1/30s
  • Exposure, ms: 0.1ms–15s
  • Video recording: +
  • Frame rate, fps at resolution: 125@1920x1080
  • Place of installation: trinocular tube, eyepiece tube instead of eyepiece
  • Image format: *.jpg, *.bmp, *.png, *.tif
  • Video format: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
  • Spectral range, nm: 380–650 (with IR filter)
  • Shutter type: ERS (electronic rolling shutter)
  • White balance: auto/manual
  • Exposure control: auto/manual
  • Software features: image size, brightness, exposure time
  • Output: USB 3.0, 5Gb/s
  • System requirements: Windows XP (32 bit), Vista/7/8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM
  • Software: MAGUS View
  • Mount type: C-mount
  • Body: solid aluminum
  • Power supply: DC current, 5 V, with the USB port of the PC
  • Operating temperature range, °C (°F): −10... 50 (14… 122)
  • Operating humidity range, %: 30… 80

In the box:

  • MAGUS CDF10 Digital Сamera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, transmitted light source, focusing mechanism, stage, condenser, and revolving nosepiece
  • Trinocular head
  • Infinity achromatic objective: 4x/0.1
  • Infinity achromatic objective: 10x/0.25
  • Infinity achromatic objective: 40x/0.65 (spring-loaded)
  • Infinity achromatic objective: 100x/1.25 (spring-loaded)
  • Eyepieces 10x/18mm with a long eye relief (2 pcs.)
  • Eyecups (2 pcs.)
  • Filters (4 pcs.)
  • C-mount camera adapter
  • Bottle of the immersion oil
  • Hex key wrench
  • AC power cord
  • Dust cover
    User manual and warranty card

Available on request:

  • 15x/11mm eyepiece (2 pcs.)
  • 16x/11mm eyepiece (2 pcs.)
  • 20x/11mm eyepiece (2 pcs.)
  • Infinity achromatic objective: 20x/0.4
  • Phase-contrast device
  • Phase slider
  • Darkfield condenser NA 0.9
  • Oil darkfield condenser NA 1.36–1.25
  • Darkfield slider
  • Polarization devices
  • Calibration slide
