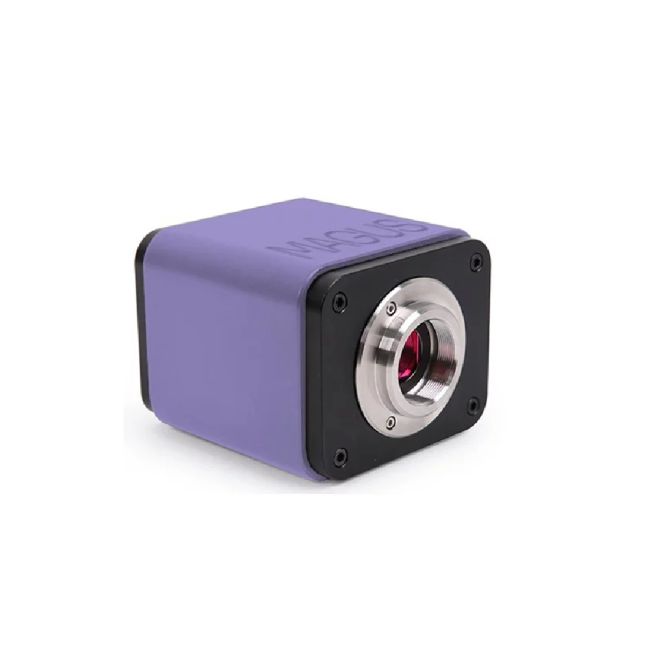

MAGUS CHD50 DIGITAL CAMERA

MAGUS CHD50 DIGITAL CAMERA

Features:

• The camera operates autonomously without a connection to a PC and software installation via the HDMI interface. Can be connected to a PC via WLAN and USB2.0 interface.
• The autofocus in HDMI mode makes it easier to adjust image sharpness
• Auto switching between 4K and Full HD depending on the monitor resolution
• 30fps with any video output interface – for observing moving objects, recording video, and moving the sample without jerkiness or delays
• SONY Exmor/Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
• Software with photo, video recording, editing, external display functions, linear and angular measurements

Sensor
The camera is equipped with a SONY Exmor/Starvis backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low light conditions.
The 1/1.8" sensor with 2.0x2.0µm pixel size provides light sensitivity of 505mV with 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 0.5x to 0.75x.

Auto focus
In HDMI mode, the focusing is adjusted automatically. The auto focus makes it easier to capture clear images and helps you avoid glitches during your presentations.

Software features
When connected via an HDMI interface, the camera uses built-in software to display images on an external display, take photographs, record video, edit images, and measure linear and angular dimensions of samples and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.
USB2.0 and WLAN interfaces are used for connecting a camera to a PC. There is software that can be installed from the included CD.

Additional devices support
In order to use the built-in software, connect a mouse to the USB port. The mouse control eliminates vibrations that occur when the user interacts with the camera.
Instead of a mouse, you can install a Wi-Fi adapter into the USB port. It is used for connecting and transferring data to a PC.
Photos and videos are saved to the SD card or the flash stick.
The MAGUS product line features LCD monitors that are designed to be directly mounted on HDMI cameras. The simultaneous use of a camera and monitor creates a compact and powerful imaging system for any MAGUS microscope.

Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapter rings (not included) to fit the tube diameter.
