ERMENRICH PING SM75 TESTER ΚΑΛΩΔΙΩΝ ΔΙΚΤΥΟΥ - ΠΟΛΥΜΕΤΡΟ

ERMENRICH

Γίνετε ο πρώτος που θα αξιολογήσει το προϊόν

Cable tester with multimeter Ermenrich Ping SM75 is a multifunctional tool for comprehensive diagnostics and determining the condition of telephone lines, computer networks, and electrical equipment.

134,00 €

Άμεσα διαθέσιμο

Διαθεσιμότητα: Σε απόθεμα

SKU

LEV-84553

Ποσότητα:

Περιγραφή

Ermenrich Ping SM75 Cable Tester With Multimeter

Features:

Measuring cable length up to 200m with an error of no more than 3m
Cable tracing range: 0 to 1000m
NCV, Port Flash, PoE test, polarity detection functions
Multimeter: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter
Quickly determine the distance to open circuits, short circuits, or crossed pairs
Bright color TFT display for network test results

Cable tester with multimeter Ermenrich Ping SM75 is a multifunctional tool for comprehensive diagnostics and determining the condition of telephone lines, computer networks, and electrical equipment. The device is designed for professionals who are engaged in network installation and maintenance in industrial, office, and residential settings.

The tester is used for tracing twisted pair, cable tracing, and determining cable length (up to 200m, with an error of ±3m) and distance to short or open circuits. Ermenrich Ping SM75 stands out from similar devices with its wide range of functions. It allows you to perform a PoE test, determining the type of power supply equipment according to the IEEE 802.3af/at standard. It has NCV (non-contact detection of hazardous voltage) and Port Flash functions, and it is compatible with STP/UTP network cables of 5E/6/6A categories. It also replaces a digital multimeter by measuring voltage (DC and AC), current (DC and AC), resistance, frequency, and capacitance. The measurement results are displayed on the transmitter’s color TFT screen with a 320x240px resolution.

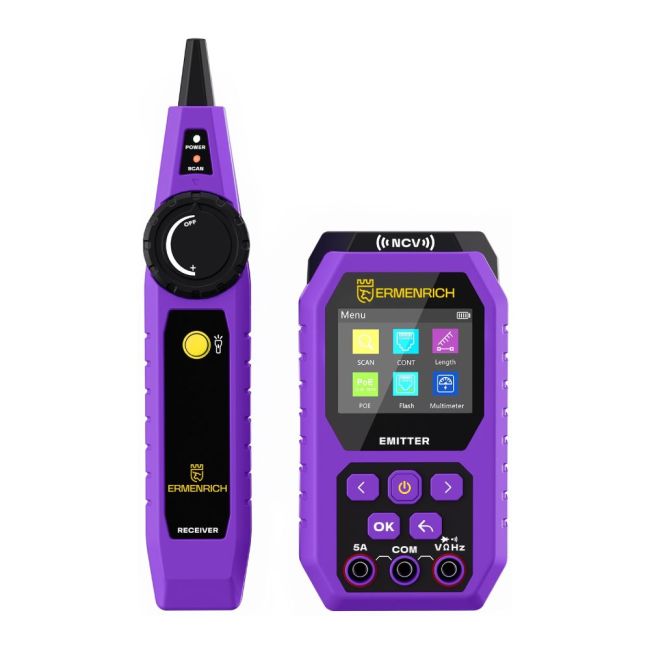

The kit includes a transmitter, a receiver with a headphone port for connecting earbuds (included), an RJ45 port, and test probes for the multimeter. The transmitter is powered by a built-in rechargeable 3.7V battery (charging adapter purchased separately), and the receiver is powered by a 9V battery.

Επιπλεόν Χαρακτηριστικά

Transmitter

Ports: Type-C, RJ45 (Wiremapping/Scan), RJ45 (Length/Flash/PoE), 5A, COM, basic multimeter measurements
Tracing cable types: common wires, STP/UTP 5/5E/6/6A network cable
Testing cable types: STP/UTP (CAT5E, CAT6, CAT6A) network cable
Maximum length of the tested cable, m: 600 (analog), 1000 (digital)
Cable length measurement: ✓
Cable testing: + (open circuits, short circuits, crossed pairs)
Port flash function: ✓
Port flash function: +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s)
Cable tracing: ✓
PoE test: ✓
Voltage polarity detection: ✓

Cable length measurement

Units of measurement: meters/yards, feet
Measuring range, m: 5 — 200
Error: 3m

PoE test

Power source equipment (PSE) type test: standard (IEEE 802.3at/af)
Midspan/endspan identification: ✓
Operating voltage range (DC), V: 5 — 60

Digital multimeter

Selection of the measuring limit: automatic
Basic functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter
DC voltage measuring range: 600mV – 610V ±(0.5% + 3)
AC voltage measuring range: 600mV – 610V ±(0.5% + 3)
DC current measuring range: 1mA – 3A ±(0.8% + 3)
AC current measuring range: 1mA – 3A ±(0.8% + 3)
Resistance measuring range: 600Ω – 60MΩ ±(1.0% + 5)
Capacity measuring range: 60nF – 6mF ±(2,5% + 60), 6mF – 30mF ±(5,0% + 10)
Frequency measurement range: 0–6MHz

Key features

Maximum operating current, mA: 200
Protection: input voltage: 60V
Display: TFT
Display diagonal, inch: 2.4
Display resolution, px: 320x240
Display backlight: ✓
Power supply: built-in rechargeable lithium battery 3.7V, 1500mA
Battery life, h: 10
Low battery status indicator: ✓
Auto power off: ✓
Operating temperature range, °C: -10...+60
Operating humidity range, %: 20…70

Receiver / Remote unit

Ports: RJ45, earbuds
Non-contact voltage detection (NCV): ✓
Flash light: ✓
Maximum operating current, mA: <150
Power supply: 9V battery - 1 pc.
Battery life, h: 10
Operating temperature range, °C: -10...+60
Operating humidity range, %: 20…70
Package size (LxWxH): 29x17x5 cm
Warranty: 5 years

In the box:

Transmitter
Receiver
Earbuds
Probe – 2 pcs.
Type-C USB cable
Carry bag
User manual and warranty card
