Ermenrich Ping SM80 Underground Wire Locator

Ermenrich Ping SM80 Underground Wire Locator

Ermenrich Ping SM80 Underground Wire Locator

LEVENHUK

The Ermenrich Ping SM80 Underground Wire Detector is designed to detect low voltage or zero voltage single-core and two-core parallel cables that are low or zero voltage as well as buried deep in the ground or hidden in walls.

109,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
LEV-82548


Ermenrich Ping SM80 Underground Wire Locator


Features:

  • For zero or low voltage cables only
  • Detection of single-core cables and two-core cables with parallel connection
  • Maximum cable depth – 0.6 meters (2ft), maximum length – 800 meters (2625ft)
  • Cable depth measurement, determining the location of circuit breakers, finding safe spots to drill and installing sockets
  • Powered by a rechargeable battery, option to connect earbuds


The Ermenrich Ping SM80 Underground Wire Detector is designed to detect low voltage or zero voltage single-core and two-core parallel cables that are low or zero voltage as well as buried deep in the ground or hidden in walls. It can be used for land surveying and site investigations before starting construction works, e.g., before drilling walls, foundation excavations, etc. The Ermenrich Ping SM80 also can locate circuit breakers and hidden sockets.

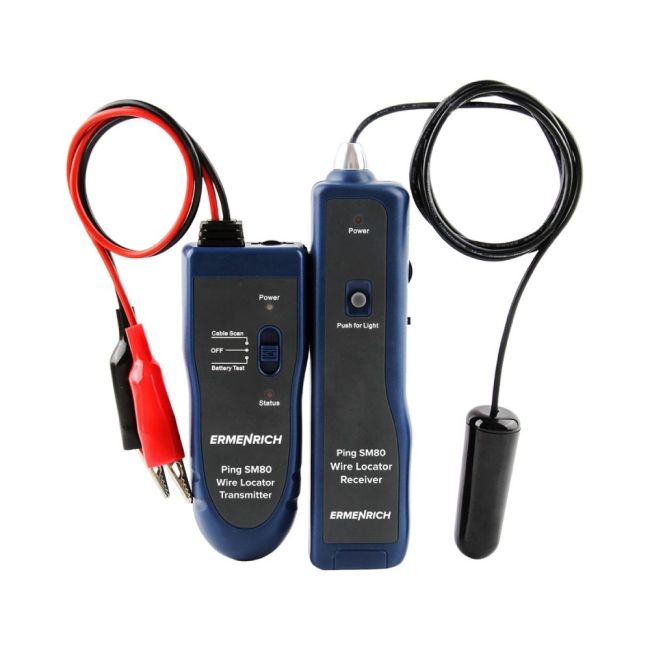

The device includes a transmitter and receiver. The depth of detection is 0.6 meters (2ft), and the length of the investigated cable can be up to 800 meters (2625ft). When a cable is detected, the Ermenrich Ping SM80 notifies you with an audible signal. If you are working in a noisy environment where the signal is hard to hear, you can connect earbuds (included) to the receiver.


The device is easy to use and easy to maintain, you only need to recharge the receiver and transmitter batteries occasionally.

Transmitter

  • Maximum detection depth, m (ft): 0.6 (2)
  • Maximum possible voltage of the circuit under test, V: 24
  • Signal frequency, kHz: 200
  • Maximum signal transmission distance, m (ft): 800
  • Peak output signal voltage, V: 15
  • Voltage control: ✓
  • Signal transmission format: dual tone
  • Power supply: charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1500mAh, 3.7V lithium polymer battery
  • Low battery status indicator: ✓
  • Battery life, h: 4
  • Operating temperature range,°C: -10...+60
  • Additional: must not be used with high-voltage networks and for the detection of multicore cables

Receiver / Remote unit

  • Ports: earbuds
  • Signal frequency, kHz: 200
  • Power supply: charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1500mAh, 3.7V lithium polymer battery
  • Low battery status indicator: ✓
  • Battery life, h: 7
  • Operating temperature range,°C: -10...+60
  • Package size (LxWxH): 24.5x15x5 cm
  • Warranty: 5 years


In the box:

  • Transmitter
  • Receiver
  • Earbuds
  • Micro USB cable
  • Bag
  • User manual and warranty card
