CAMERA ASI 294mc PRO COLOUR

ZWO

Camera designed for deep sky astrophotography. Take stunning photos of nebulae, galaxies and star clusters! The performance of this camera in astrophotography will impress you!

was €1,489.00 Special Price €1,388.94

Κέρδος: 100,06€

In Stock

Availability: In stock

SKU

ZWO-ASI294MC-P

ΠΑΣΧΑΛΙΝΕΣ ΠΡΟΣΦΟΡΕΣ

Details

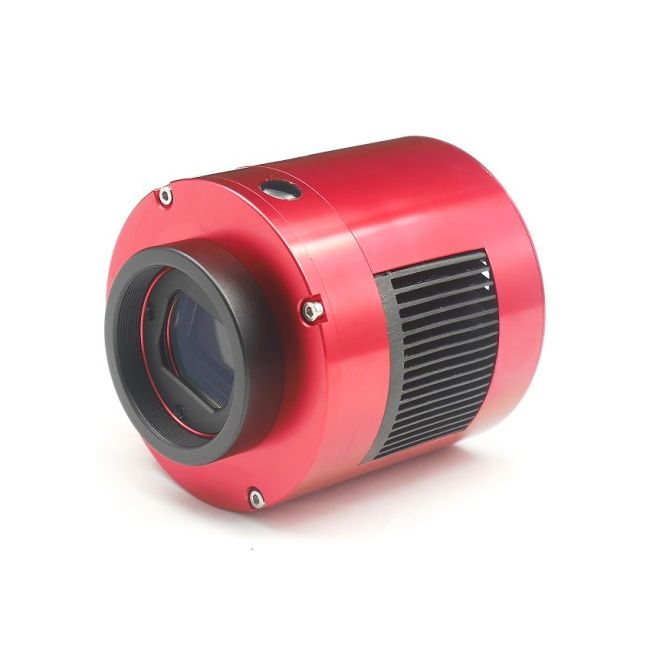

CAMERA ASI 294MC PRO COLOUR

The ASI294MC Pro is the first camera in the world equipped with the latest Sony sensor IMX294CJK. This is one of the top-selling cameras from ZWO. Looking at the specifications and comparing it to the relatively low price, it is easy to see why. Some of the highlights include:

back-illuminated sensor – improving sensitivity and reducing noise
4/3” format with 4.63 um pixel size – ideal for many types of telescopes
14-bit ADC– giving high dynamic range of 13 stops
An impressive 7ke- full well capacity- helping to reduce the issue of, for example, saturated stars.

On top of this, it also has a very high QE-value with a peak of over 75%. If you are looking for a small-format OSC camera for astrophotography, you can’t go wrong with the ASI294MC Pro.

IMX294CJK

Sony 10.71M-Effective Pixel Color CMOS Image Sensor (official description from Sony site), with a diagonal of 21.63mm (4/3 format). ZWO has refined the sensor and remolded it to increase the diagonal to 23.2mm with approximately 11.71M-Effective pixels (4/3 format).

High-Sensitivity Type 4/3 CMOS Image Sensor that Supports 4K for Astronomic Cameras and Industrial Applications

The IMX294CJK sensor is the first in-house image sensor for astronomic cameras to adopt the 4/3 format and provides the necessary number of pixels for true 4k output at 120 frames per second (w/ ADC 10-bit output mode, the ASI294MC can run up to 25fps at 4k format when used with USB 3.0). In addition, the use of larger-sized pixels achieves SNR1s of 0.14 lx* which is very close to the value of the ASI224 (0.13 lx*).

Exceptional low-illumination performance

Exceptional low-illumination performance of SNR1s: 0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63 µm. This makes the IMX294CJK ideal for astronomic camera market applications that require low-illumination performance.

DDR Memory Buffer

The ASI294MC Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.

14bit ADC w/ 13 stops DR

The ASI294MC Pro has a 14bit ADC unit, allowing it to achieve 13 stops of dynamic range. This is an excellent characteristic for deep sky imaging, which inherently needs high dynamic range. At 13 stops, the ASI294MC has even more dynamic range than the ASI1600.

HCG Mode

HCG (high conversion gain) mode, which reduces read noise to even lower levels at higher gain without loss to dynamic range, is automatically enabled when the gain setting is 120 or higher. Read noise will drop under 2e-, while dynamic range will remain at 13 stops.

Full well Capacity

The ASI294MC provides a great full well capacity of 63700e-, which is 3 times higher than the capacity of the highly regarded ASI1600. Even bright stars won’t saturate under long exposures. This also means that this camera can achieve higher SNR (signal to noise ratio) with just one single exposure.

Reliable Mechanics

ASI294MC Pro has the same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable. Even when used in higher humidity environments, ASI294MC Pro will still work well without dew problems.

High QE

The IMX294 sensor is a BSI (backside illuminated type) sensor, which has very high QE (quantum efficiency, which we estimate is over 75% peak).

Dark Current

The dark current of the ASI294 is a bit lower than the ASI1600 at same temperature, based on our test results. Dark frame sample @ Highest dynamic range settings, 300s, -10°C, bin1. Please check the dark frame to make sure you fully know the performance. ASI294MC Pro Dark Frame

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI294 Pro to run at 16 fps (14bit, normal mode) or 19 fps (12bit, high speed mode) at full resolution(11.7Mega).

USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI294 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

Cooling System

Thanks to the two-stage TEC cooling, ASI294MC Pro can lower the CMOS sensor temperature to 35-40 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

Please notice that the camera needs to be connected to an external 11-15v power supply to implement the cooling function. We recommend you use 12V@3A DC adapter (5.5*2.1mm, center pole positive) or lithium battery with 11-15V to power the camera.

Connecting Diagram
