Anti-dew heater strip for ASI cooled cameras

Anti-dew heater strip for ASI cooled cameras

The anti-dew heater strip is used for anti-dew on the front window of the ASI cooled cameras.

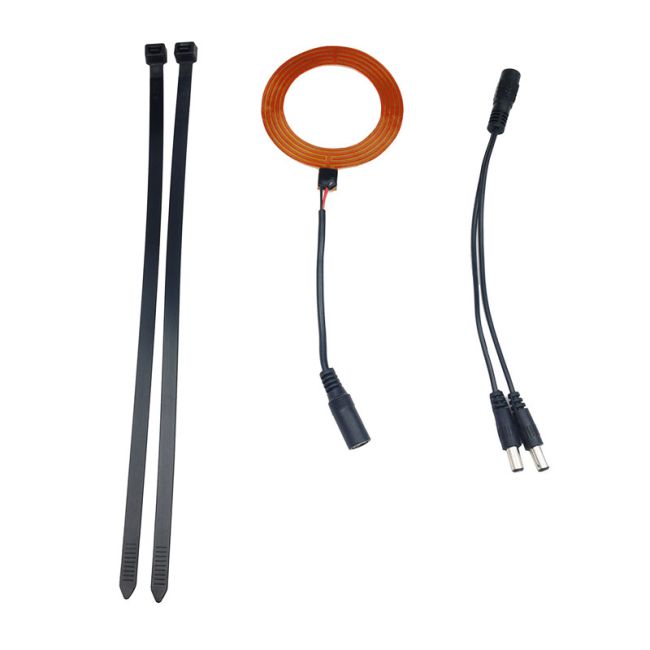

This  kit includes the zip-tie, anti-dew heater strip , an Y power cord and two spacers.

1. The thickness of the anti-dew heater strip is 0.2~0.3mm.

   The “Y” power cord is designed to connect in-line with the cooler power supply for convenience.

   And we recommends 12V at 0.35A  DC adapter where the heating power on the strip is ~4.2 watts. You can use one and same power cord to power both the fan and heater simultanously, but make sure not to exceed recommended amount of Ampere.

   NOTE: heater strip is not necessary!

   ASI071MC-P/ASI6200MC-P/ASI6200MM-P/ASI2600MC-P cameras come with anti-dew heater will heat protect window to avoid any dew problems.

   For ASI183/ASI1600/ASI294/ASI533 cameras, The heat emitting of TEC will be conducted to the camera case and avoid any dew problems when TEC cooling system working.

   How to use it?

   1. Tear out the protective film on adhesive tape


2. Put the anti-dew heater strip on the front facing of the camera and make sure the black cable is in the right position (lining next to the DC plug at the rear end)



3. Tie the black cable with a zip-tie on the camera body.


4. Plug in the power cord, then everything is done
