ZWO
New filter Drawer with a thickness of 29mm that can be used for carrying 2” filter and connecting ASI cooled cameras to Nikon Lens.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

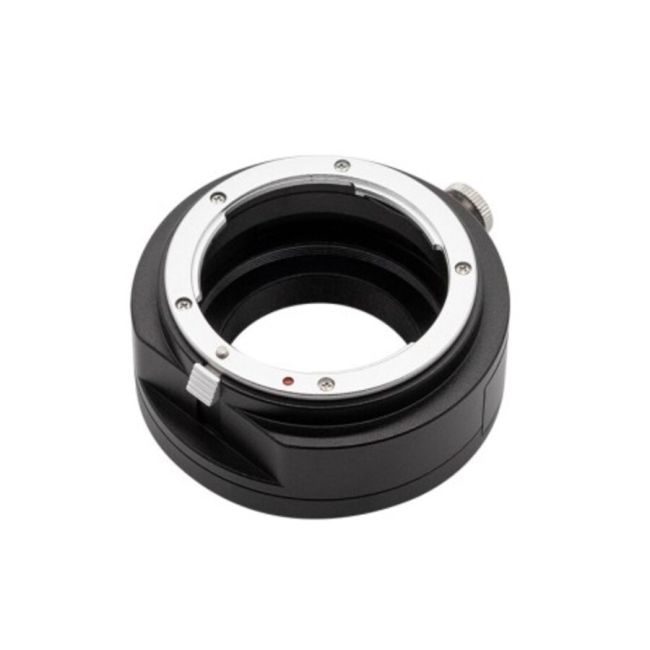

ZWO NEW FILTER DRAWER FOR NIKON LENS
New filter Drawer with a thickness of 29mm that can be used for carrying 2” filter and connecting ASI cooled cameras to Nikon Lens.
It is compatible with all ASI cameras with 17.5mm back focus distance (except ASI GT series): 1600/294/183/071/533/2600/6200/2400
![]() |
![]() |
It can be used with all ZWO 2” filters, including the duo-band filter, narrowband filter, IR-cut filter, etc.
If you are using 2” filters from third party, then please make sure they meet the requirements below.
Filters are very easy and convenient to install and pull out with the ability of double strong magnetic adsorption.
Thread of the interface: M42*0.75.
You’ll need use a M54M-M42F adapter (0mm) to connect the filer drawer to the full-frame camera.
Connection method:
Connecting to ASI1600/294/183/533 | Connecting to ASI6200/2400/2600/071 |
![]() |
![]() |
*The M54M-M42F adapter is needed when connected to full frame camera ASI6200/2400.
Mechanical drawing:
70mm diameter*29mm(thickness)
M42*0.75 male (external) thread (camera side)
M48*0.75 female (internal) thread (filter end)
Suitable for 2-inch astronomical filters
In the box:
