FOCAL ADAPTER FROM 2" TO T2-THREAD, 40 mm OPTICAL LENGTH

FOCAL ADAPTER FROM 2" TO T2-THREAD, 40 mm OPTICAL LENGTH

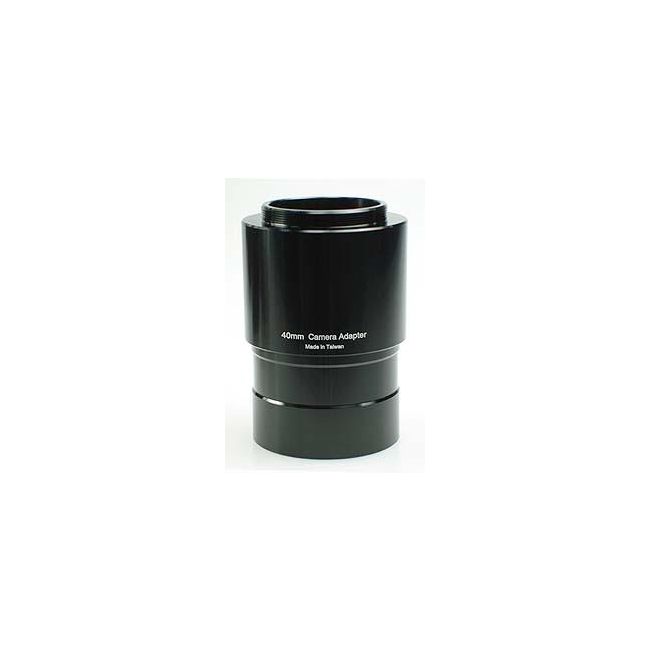

The TS FA 240 fits into 2" focusers and has a male T2 thread on the camera side. So you can adapt nearly any camera via the T2 system.
The T2 thread (M-42x0,75 mm) is the connection to T2 rings to all common SLR cameras.

40mm additional length can make sense:
Many telecopes have their focal plane beyond the maximum focuser travel. They are intended for the use of 2" diagnoal and need an extension if a camera is used.
The TS FA 240 contains a 40mm extension and so the focus problem can be solved without the need of an addtional adapter.

Safety groove
The safety groove prevents the accessories from falling out if the locking screw is accidentally slightly loosened. This improves the safety of your equipment.

2" filter thread
On its base, the adapter has a M48 thread for 2" filters. So you can use your filters also photographically.

Technical informations:

-- Length of the complete adapter without T2 thread ... 75,25mm
-- Length of the adapter without 2" barrel without T2 thread ... 40,25mm
-- Connection thread on the camera side ... T2 (M42x0,75)
-- Connection thread on the telescope side ... M48x0,75 - 2" Filter thread
