Ultimate Powerbox V3 is the flagship of our Powerbox series.

EXPECTED BY SUMMER 2023
699,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
PEG-UPBv3

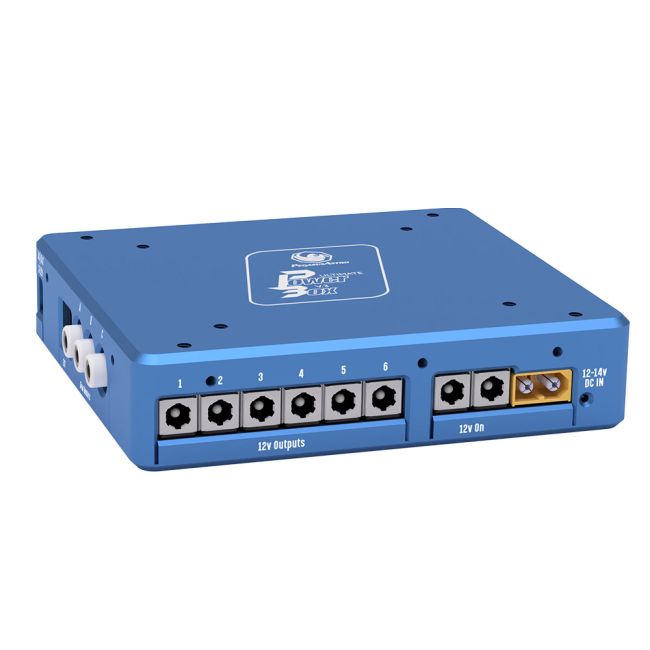

Ultimate Powerbox v3 (UPBv3)

(UPBv3 in short) is the flagship of our Powerbox series. You asked for more features in the same size, we kept our promise:

UPBv3 is a Wi-Fi and USB controlled power hub. A USB 3.1 Hub allows you to switch on/off 8 USB ports, 8 12V power outlets, 2 x Adjustable outputs (3-12V and 12-24V), 3 dew heaters, a new silent low-vibration stepper controller that can drive any stepper motor in the astronomy market as well as a power relay and an expansion port for devices that communicates with the UPBv3 Controller!

If you are tired of carrying multiple power packs and dealing with a mess of power and data cables, our Ultimate Powerbox v3, a sophisticated power control unit, is the “Ultimate” solution. Our idea is an enclosure that makes a sufficient number of amperes available.

No cables disturb the movements of the mount and the instrument, only the main power cord and one USB data cord are attached to the Ultimate Powerbox which branches off the other cables powering all devices.

A quick glance:

  • Up to 12V / 20Amps of provided electric current (240W).

  • 6 x 12V smart and individual switcable outputs. Each output can be configured as constant 12V or pulse width modulated driven).
  • Wi-Fi or USB Controllable Operation.

  • 2 x 12V / Always ON Outputs.
  • 3 x Dew Heaters Outputs.
    (Automatic Adjustable with AutoDew feature)
  • 1 x Adjustable Power Output 3-12V -Regulated Output of 3Amps

  • 1 x Adjustable Power Output 12-24V – Regulated Output of 4 Amps

  • 1 x Power Relay switch 250V/10A

  • 6 x USB3.1 (backwards compatible with USB2) and 2 x USB2 available ports (8 USB ports in total). Individual switchable via software.

  • Stepper Motor Controller (Silend and low vibrating stepper controller. Can drive nearly any stepper motor in the astro -market up to 2Amps per coil).

  • Physical push-button to control one function (e.g turn ON / OFF outputs). Functionality is configurable in software.

  • Built-in ambient temperature and humidity sensor.
  • Power readings (Input Voltage, Current, Current per port).
  • Vesa compatible size enclosure.

8 x Powered. Switchable USB Ports

8 x 12V DC Power Outlets

Embedded Stepper Motor Controller

In total 8 USB ports powered – USB 3.1 SuperSpeed Hub

A USB3.1 Hub controller ensures that this USB hub will work flawlessly from temperatures of -40°C to +80°C.

A neat feature is that each USB port can be switched ON/OFF individually by the software. A device was stuck and you had to replug the socket in the middle of a cold night? No problem! Just locate the port, click the ON /OFF switch in our software and you recycle the USB port. Simple as that!

The UPBv3 has:

  • 6 x USB 3.1 Super-Speed ports
  • 2 x USB 2 High-Speed ports

Each USB port provides up to 2.5Amps. All USB ports include an electronic short circuit , additional Electrostatic Discharge (ESD) and overload electronic protections.

6 x 12V DC Power outlets for your equipment

Six powerful Smart Mosfet transistors provide “electric juice” to your precious equipment. Sophisticated short circuit and overload per port protections cut the power and report the incident into our software. Every Mosfet is capable to provide up to 6 Amps of current.

Metal premium quality output sockets ensure that will provide all the juice you need and can secure in place your extension power cables

Built-in Power Sensors

A precise voltmeter and an amp meter (can measure up to 20A) measure and display in real-time your power input. If the input is more than 14.5V the power is instantly cut off to protect your equipment.

Individual Current Meter per 12V smart outputs.

Each smart 12V output has an internal and independent digital current meter. You can view each port’s power consumption in the software.

Additional Power Outputs and Sensors

2 x Always ON 12V outputs increase the total 12V outputs to 10. In combination with the 2 x adjustable outputs (if configured to 12V) the total 12V outputs can be summed to 10 Outlets.

1 x Adjustable Voltage Step Down output can be regulated from 3V ro 12V of and provide up to 3 Amps.

1 x Adjustable Voltage Step Up output can be regulated from 12V to 24V and provide up to 4 Amps.

1 x Switch Relay can pass 250V / 10A and used to switch ON/OFF any 3rd party equipment.

A built-in ambient temperature and relative humidity sensor provides frequently readouts of the environmental conditions and automatically adjusts the heat intensity of your Dew strips.

Embedded Stepper Motor Controller

A silent and low vibrating stepper motor controller will precisely move your drawtube of your focuser. The controller drives a Pegasus Motor Focus Kit or any other stepper motor in the market (Unipolar or Bipolar) e.g. Rigel, Robofocus, Moonlight, Starlight motors.

Backlash compensation is already implemented in the firmware and can be enabled, tuned and disabled from the software. A fully ASCOM6 focuser driver is already available.

Supported Stepper Motors

Make sure you have the correct cable for your motor. Every manufacturer uses its own pinout. Contact us if you have any question for the type of your motor.

Pegasus Motor Focus Kit (v1/v2) Requires RJ45 to RJ45 common straight network cable
Robofocus Ask for cable: PEG-CMOT-RJ45DB9
Moonlite Ask for cable: PEG-CMOT-RJ45DB9
Lakeside Ask for cable: PEG-CMOT-RJ45DB9
Starlight HSM 20,30,35 Ask for cable: PEG-CMOT-HSM
Starlight MSM 20,30,35 Ask for cable: PEG-CMOT-MSM
Starlight  DirectSync motors Ask for cable: PEG-CMOT-HSM
Starizona Microtouch Ask for cable: PEG-CMOT-MSM
Optec DirectSync or Quicksync motors Ask for cable: PEG-CMOT-HSM
Rigel nStep motor Ask for cable: PEG-CMOT-MSM
Starlight POSI Drive Motor Ask for cable: PEG-CMOT-HSM
Lacerta Motor Ask for cable: PEG-CMOT-LCRT

Vesa compatible enclosure

The UPBv3 enclosure is compatible with VESA mounts. Available screw holes allow an e.g. Intel NUC to be stacked up with the Ultimate Powerbox v3.

Supported By

ASCOM 6

Ultimate powerbox fully supports ASCOM6. In combination with our Unity Software which acts as a server, you can use our latest ASCOM 6 supplied drivers to:

  • Control Stepper Motor (ASCOM Focuser)
  • Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL /NINA ) (ASCOM ObservingConditions)
  • Switch ON or OFF all 12V outputs or USB Ports (ASCOM Switches – NINA/ MaximDL)

INDI

Ultimate Powerbox v3 is fully supported by INDI and INDIGO

StellarMate

RPI3 & RPI4

Support at N.I.N.A.

Ultimate Powerbox v2 Native Support at NI.NA.

The Ultimate Powerbox v3 is fully supported at NINA.

Three Dew Heater outputs

Three Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters / Flatpanels or Telescope Fans. Eliminate the moisture that is fuzzing your equipment and destroying your clear nights. These outlets can be remotely tuned from your laptop using the supplied software.

2 x Variable Voltage Regulated Outputs

Two regulated outputs that can provide up to 3Amps of current is available. You can tune one output from 3 Volt to 12Volt and the other 12V to 24V and save this setting in controller’s memory. Every time UPBv3 boots the port will be tuned to the stored voltage setting.

Always ON
12V Output

Two unregulated 12V output can provide up to 8Amps. So, In addition with the Smart 6 x 12V outputs you have two more to connect additional equipment. This 12V output ports stays always ON!

Other Key Features

Zoomable and Exportable Graphs

Software logs all voltage, current, temperature and relative humidity readings. All these plots are zoomable and easily exportable in PNG image & CSV text format. Keep a full record of your night conditions.

Scheduler to control outputs

Enable or disable each Power or USB port by setting a timer and creating groups of ports

Memory persistence outputs at startups

You can easily define which output (power or USB) should turn ON or remain OFF during startup. The settings are stored in system’s EEPROM memory.

Auto Adjustment of PWM (Dew Outputs)

Device can auto adjust the Heater Outputs by consulting the environmental sensor and calculate the Dew Point. Just click “Auto” and leave to Ultimate Powerbox v2 to decide if it is time to switch on your dew heaters.

* You can easily select which Dew Heater output is controlled by the “Auto Dew” function.

Reverse Polarity
Protection

Ultimate Powerbox has been designing with reverse voltage polarity protection. It will save your night if you accidentally connect the main power supply in reverse polarity!

A hardware
watchdog

A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze, is when you own a remote observatory and you need to be certain that everything can be quickly recovered.

Upgradable
Firmware

The firmware supports re-programming via the USB or WI-Fi connection using upgrade software ((only available for Windows), for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.

Unity Platform Support

Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.

A modern frontend allows the full control of all Pegasus Astro devices.
Moreover, a REST JSON api helps developers from 3rd party software to interact with our products.
As we continuously develop our applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases.

In the Box

1 x Ultimate Powerbox v3 enclosure

4 x Power DC 2.1 to 2.1 male cable (1m)

1 x USB3 Cable Type B (1.8m)

USB3 Cable Type B (1.8m)

Mechanical Drawing

Technical Specification

Supply Voltage: 12V-14V DC (Reverse Polarity Protected)
Power Input Connector XT60 Female
Connectivity USB3 – Type B USB Connector
6 x 12V Outputs Maximum Current 6.0A each.
2.1mm Center Positive
Sense/ Ampmeter in each port
Software: ON/OFF
3 Channel x 12V PWM Outputs Maximum Current 6.5A each,
RCA Connector,
Pulse Width Modulated (Suitable for Dew Heaters / Fans / Flatpanel)
Software: Duty Cycle % / OFF
2 x Variable Outputs Adjustable via software. 3-12V / 3Amps
Adjustable via software. 12-24V / 4Amps
1 x Always ON 12V Output 12V passthrough / Always ON / 8 Amps
Stock Sensor Input / EXT 0-100% humidity readings with 2-5% accuracy
-40 to 80°C temperature readings ±0.5°C accuracy
Ampmeter Measures 0 – 20A
Voltmeter Measures 5 – 15V
Superspeed (USB3.1) 8 port powered Hub Industrial Grade: Temperature range -40°C to +80°C
6 x SuperSpeed (USB3.1) ports (backwards compatible with USB2)
2 x High Speed (USB2)  ports
USB Ports can be switched ON/OFF on demand via software (data + power)
Each USB port can deliver up to 2.2Amps
Stepper Motor Controller Unipolar and Bipolar Stepper motors (2.0 Amps per phase) – RJ45 socket
Dimensions 127mm x 116mm x 29mm
Weight 400 grams (14.1 ounces)
