TS UNIVERSAL FINDER BASE

TS UNIVERSAL FINDER BASE

TS UNIVERSAL FINDER BASE

TS-OPTICS

Universal finder base for almost all finder brackets - with adaptable base for your telescope.

29,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

Διαθεσιμότητα: Σε απόθεμα
SKU
TSSCBASE

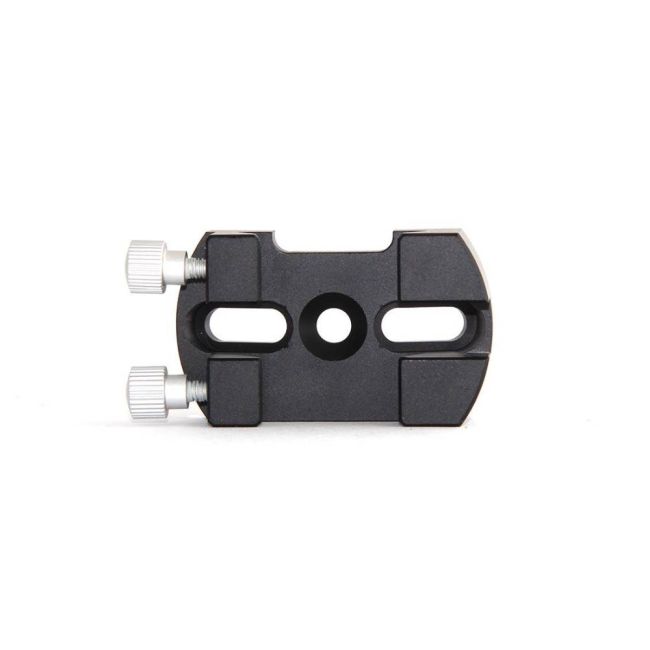

Universal Finder Base for almost all telescopes


The base for almost all finder brackets, Baader Witty, tangential heads and many more.

This finder base is machined from the full for maximal precision and stability. The finder bracket is safely clamped by two screws - nothing can tilt anymore.


Very versatile adaption to your telescope

The SCBase can be attache to your telescope perfectly tight with two screws in the long bores or just one screw in the middle.

The underside is machined sine shaped and thus forms two linear supports with every tube between 130 mm and 400 mm diameter, for maximum stability.

The two long bores and the bore in the middle are counter-sunk for easy attachment of the finder base with M4 or M5 countersunk bolts.


This finder fits to:

  • Celestron and Meade Schmidt-Cassegrains, ACF and EHD telescopes
  • Orion UK tubes (boring necessary)
  • It can replace the simple finder bracket of all telescopes of at least 130 mm tube diameter.
  • The SC Base fits to telescopes from TS Optics, Celestron, Meade, Orion USA, Orion UK, Intes and many more
  • Material: Aluminium - machined from the full
  • Connection to the telescope: with two long bores and a central bore
  • Matches screws: M3 to M5 countersunk head srews or very flat cylinder head screws
  • Distance of the connecting screws: The long bores allows a distance between 27 mm and 45 mm.


In the box:

  • Finder base with two knurled screws
  • Connecting bolts and nuts for the telescope are not included
