MAGUS
The MAGUS CLM50 digital camera is designed for use in fluorescence and darkfield microscopy techniques. The high-speed camera is recommended for professional laboratories, research, or university training.
Διαθέσιμο με Προπαραγγελία
Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που συνήθως δεν κρατάμε σε στοκ και για κάποιους λόγους - που δεν εξαρτώνται από την εταιρία μας - ΔΕΝ μπορούν να είναι διαθέσιμα σε διάστημα μικρότερο των 14 ημερών.Στην κατηγορία αυτή περιλαμβάνονται και προϊόντα που προδιαφημίζονται από τους κατασκευαστές αλλά δεν άρχισε ακόμη η επίσημη διανομή τους στην ελληνική αγορά. Πιθανόν για τα είδη αυτά να παρέχεται δυνατότητα προπαραγγελίας με ειδική προνομιακή τιμή. Αν γνωρίζουμε ήδη την πιθανή ημερομηνία άφιξης του συγκεκριμένου προϊόντος, στις αποθήκες μας, τότε αυτή θα αναγράφεται ξεχωριστά και επάνω από την ένδειξη «Διαθέσιμο με Προπαραγγελία»

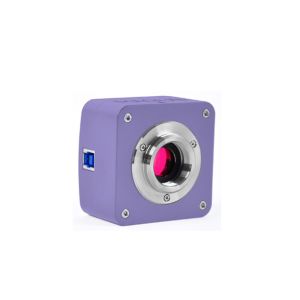

MAGUS CLM50 DIGITAL CAMERA
Features:
Sensor
The camera is equipped with a SONY Exmor backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
A color sensor has less light sensitivity than a monochrome one, but it is absolutely necessary for studies that identify and classify objects based on color.
The large size sensor – 1.1''. The size of the sensor affects the image quality: The larger the sensor is, the cleaner the image, the greater the color depth, and the wider the field of view will be.
The sensor with 9x9µm pixels provides light sensitivity of 4910mV with 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 1x.
Peltier element
The camera sensor may overheat during prolonged use. This causes thermal noise in the image, which significantly reduces the image quality. To eliminate this negative effect, the chamber is equipped with a two-stage thermoelectric module (Peltier element). It sets the temperature to 42°C below room temperature and creates optimal conditions for the sensor to run for long periods of time without heating up and, therefore, the camera is suitable for long shutter speeds: The image is clear without thermal noise.
Shutter
The camera has a global shutter. The signal is read from all of the photosensitive elements of the sensor simultaneously. Fast-moving objects are seen clearly and without false optical effects. The image in low light is bright and well-detailed, which is especially important for fluorescence microscopy.
Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure the linear and angular dimensions of samples and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.
Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included).
In the box:
