MAGUS
The MAGUS CBF50 digital camera is designed for the brightfield microscopy technique. This high-speed camera is recommended for professional laboratories, research, or university training.
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

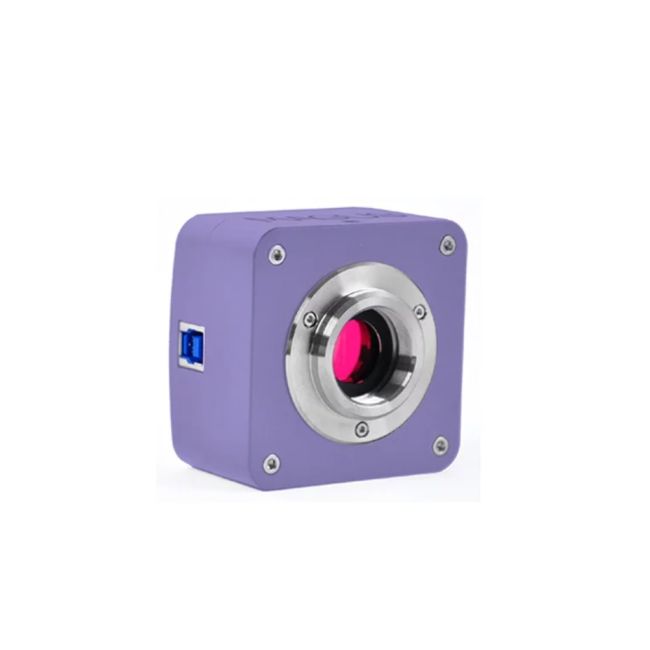

MAGUS CBF50 DIGITAL CAMERA
Features:
Sensor
The camera is equipped with a SONY Exmor backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
The 1/1.8" sensor with 3.45x3.45µm pixels provides light sensitivity of 1146mV at 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 0.5x to 0.75x.
Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure linear and angular dimensions of objects and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.
Installation
The camera is mounted on the microscope in the trinocular tube or side camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapters to fit the tube diameter (not included).
Specifications
In the box:
