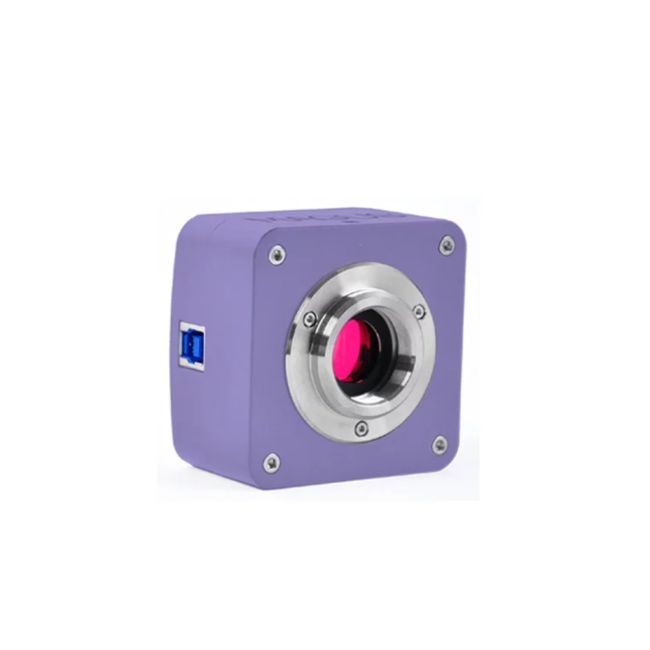

MAGUS CBF30 DIGITAL CAMERA

MAGUS

The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique. When working with low magnification objectives, the camera will enable you to see more fine details. The high-speed camera is recommended for professional laboratories, research, or university training.

€684.00

Available within 5-14 days

Availability: In stock

SKU

LEV-83204

Qty:

Details

MAGUS CBF30 DIGITAL CAMERA

Features:

For brightfield microscopy 4x, 10x, 20x, and 40x objectives
6.3MP resolution: when working with low magnification objectives, the camera will allow you to see more fine details
59fps for observing samples that are moving, recording video, and moving the preparation without jerkiness or delays
SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer, brighter, and more color-saturated images
USB 3.0 interface for fast, smooth data transfer
Software with photo, video recording, editing, external display, and linear and angular measurement

Sensor
The camera is equipped with a SONY Exmor backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
The 1/1.8" sensor with 2.4x2.4µm pixels provides light sensitivity of 425mV at 1/30 s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 0.5x to 0.75x.

Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure linear and angular dimensions of objects and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.

Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapters to fit the tube diameter (not included).

Additional Features

Specifications

Sensor: SONY Exmor CMOS
Color/monochrome: color
Megapixels: 6.3
Maximum resolution, pix: 3072x2048
Sensor size: 1/1.8" (7.37x4.92mm)
Pixel size, μm: 2.4x2.4
Light sensitivity: 425mV at 1/30s
Signal/noise ratio: 0.15mV at 1/30s
Exposure: 0.02ms–15s
Video recording: +
Frame rate, fps at resolution: 59@3072x2048; 59@1536x1024
Place of installation: trinocular tube, eyepiece tube instead of eyepiece
Image format: *.jpg, *.bmp, *.png, *.tif
Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
Spectral range, nm: 380–650 (with IR filter)
Shutter type: ERS (electronic rolling shutter)
White balance: auto/manual
Exposure control: auto/manual
Software features: image size, brightness, exposure time
Output: USB 3.0, 5Gb/s
System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display
Software: MAGUS View
Mount type: C-mount
Body: solid aluminum
Power supply: DC current, 5V, from the USB port of the PC
Operating temperature range, °C: –10... 50
Operating humidity range, %: 30… 80
