CCD ADAPTER FOR CANON EOS M48 10mm

CCD ADAPTER FOR CANON EOS M48 10mm

CCD ADAPTER FOR CANON EOS M48 10mm

TS-OPTICS

Use your high-quality Canon EOS, EF or EF-S lens also with your CCD camera for first-class deep-sky images.

55,00 €

Άμεσα διαθέσιμο

Άμεσα διαθέσιμο

Αποστέλλεται εντός 24-48 ωρών.
Συνήθως, παραγγελίες που λαμβάνουμε μέχρι τις 3μ.μ  για άμεσα διαθέσιμα είδη , αποστέλλονται αυθημερόν.

Διαθεσιμότητα: Σε απόθεμα
SKU
TSEOS-M48s

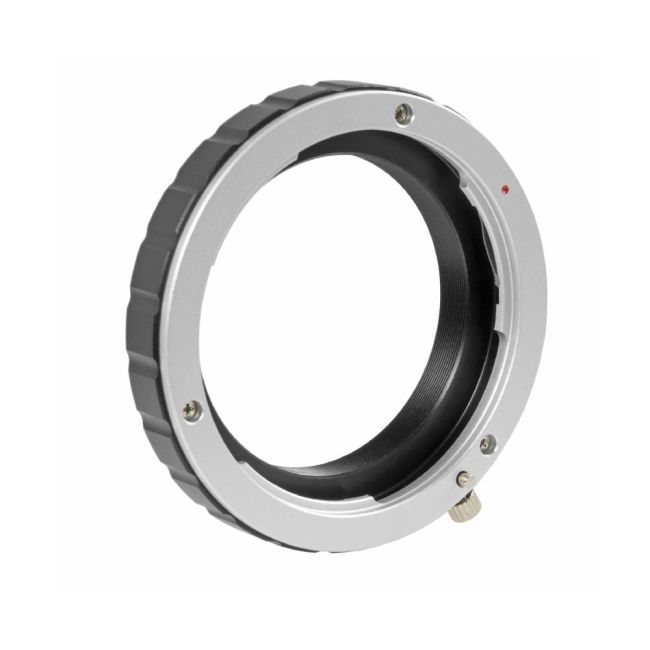

TS-Optics short M48 Adapter for CCD cameras and CMOS cameras to Canon EOS lenses


Use your high-quality EOS camera lenses and, for example, take photographs of large areas of the sky. In this case, the CCD camera replaces the SLR.


The adapter is suitable for astro cameras up to 32 mm working distance. All common ZWO, Atik, SBIG, QHY or Moravian cameras will fit. An adaption to T2 is also no problem.


The most important connection adapters to the EOS lens adapter:

  • Reduction to T2 via TSM48-T2, TSM48-T2L and TSM48i-T2a (differnt lengths)
  • Extension to M54 via TSM54a-M48i (optical path 1.5 mm)
  • Extension to M68 via M68-M48i (no optical path)
  • Filter changer for unmounted filters TSFEK50 (optical path 12 mm - with 2x M48Abstimmring1). With this, you can even create L-RGB images or use nebula filters between camera and lens.
  • Connection at lens side: Canon EF lens mount female
  • Connection at camera side: M48x0.75 (2" filter thread) male - length of the thread 4 mm
  • Length of the adapter: 10 mm (without the M48 thread)
  • Distance from M48 thread to camera sensor: 34 mm
