UNIHEDRON

An affordable instrument for continuous and networked measurement of effective sky brightness.
The "Sky quality meter - LE" measures the brightness of the sky in magnitudes per square arc second.

334,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που δεν κρατάμε σε στοκ αλλά διατίθενται μόνον κατόπιν προ-παραγγελίας. Μόλις λάβουμε την παραγγελία σας, θα σας ειδοποιήσουμε με e-mail ή τηλεφωνικά, για τον ακριβή χρόνο παράδοσης.

Διαθεσιμότητα: Σε απόθεμα
SKU
TSSQM-LE

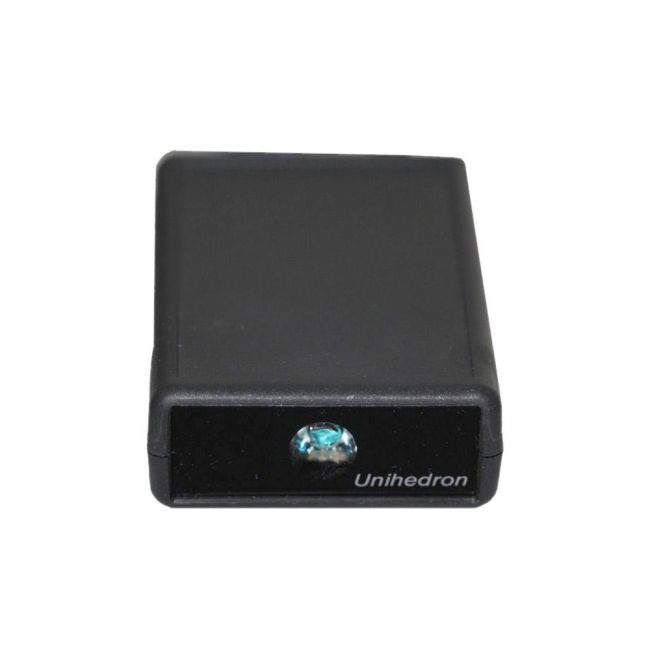

Sky Quality Meter with Lens and Ethernet Connection


An affordable instrument for continuous and networked measurement of effective sky brightness.

The "Sky quality meter - LE" measures the brightness of the sky in magnitudes per square arc second.

Note: The SQM-LE is intended for remote operation via LAN only; it has no display of its own. If PC-independent operation is desired, please select the SQM or SQM-L.

Applications:

  • Determine how good your observing site really is.
  • Compare different locations quantitatively.
  • Document the light pollution in your region.
  • Adjust planetarium brightness to realistic levels.
  • Monitor the sky brightness depending on the time of day, from night to night, from year to year.
  • Determine if it is worthwhile on a particular night to search for faintest objects on a given night.
  • Compare the effective sky brightnesses with qualitative
    measurements, e.g., using the Bortle scale.
  • Explore how sky brightness relates to the solar cycle and solar activity.
  • CCD photographers can determine at what sky brightness the ADC level of the sensor is reached.
  • Connection: Ethernet
  • Included applications for data acquisition: in Java, C, Perl, Python
  • Operating voltage: 5-6VDC (incl. power supply)
  • Dimensions: 92 x 66 x 28 mm
  • Max. Time for a single measurement: 80 seconds.
  • Min. time for a single measurement: 1 second.


In the box:

  • SQM-LE Unit
  • Power supply unit
  • SQM-LE Instruction Manual (English)
  • CD with manual as PDF and sample software
  • Ethernet cable (1:1 for connection with hub or router, length approx. 1.80 m)
  • Ethernet cable (crossed, for direct connection to PC, length approx. 1,80 m)
