RGB Filter Set 2

RGB Filter Set 2" – CMOS-optimized

RGB Filter Set 2" – CMOS-optimized

BAADER PLANETARIUM

2" x 2 mm Baader CMOS RGB Bandpass Filter Set, suitable from f/15 to f/1.8 – with 2" (M48) filter thread. Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

405,00 €

Διαθέσιμο κατόπιν παραγγελίας

Διαθέσιμο κατόπιν παραγγελίας
Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που δεν κρατάμε σε στοκ αλλά διατίθενται μόνο κατόπιν παραγγελίας ή έχει προαναγγελθεί η κυκλοφορία τους στην αγορά από τον κατασκευαστή. Τα είδη αυτά αποστέλλονται συνήθως σε 5-14 μέρες. Μόλις λάβουμε την παραγγελία σας, θα σας ειδοποιήσουμε με e-mail ή τηλεφωνικά, για τον ακριβή χρόνο παράδοσης, καθώς και για το ύψος της τυχόν προκαταβολής που θα απαιτηθεί.
Διαθεσιμότητα: Σε απόθεμα
SKU
BA-2961603


RGB Filter Set 2" – CMOS-optimized

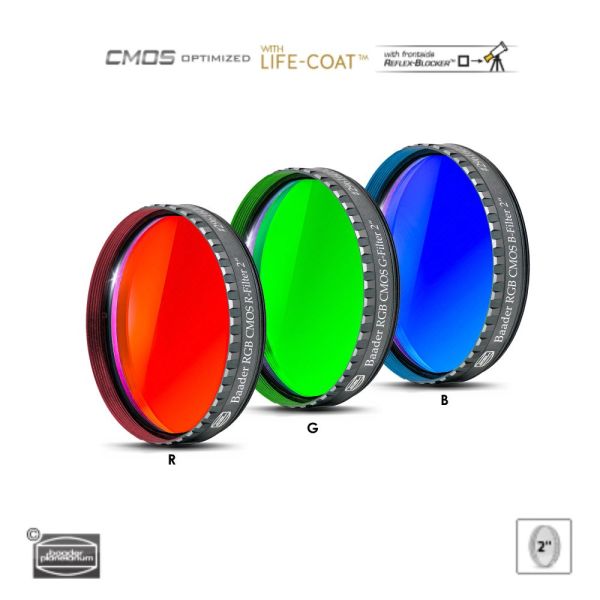

  • 2" x 2 mm Baader CMOS RGB Bandpass Filter Set, suitable from f/15 to f/1.8 – with 2" (M48) filter thread
  • Anti-reflection RGB filter (red/green/blue) with extremely high transmission of the respective color channel, thus simultaneously reducing stray light and reflections to an unprecedented level
  • Balanced RGB design allows subframes to be taken with the same exposure time – extremely important for automated imaging tasks
  • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
  • Mounted in Baader Ultra Low Profile (ULP) filter cell – 5,5 mm height


This new generation of Baader CMOS-filters features:

  • Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
  • Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

OPTICAL SPECIFICATIONS

  • AR-Coating: Reflex-Blocker™ hard coatedplaneoptically polished
  • CWL (Central Wavelength): RGB
  • Suitable for f/ratio: f/15 to f/1.8
  • Transmission Range: R (595 – 690 nm), G (490 – 580 nm), B (400 – 510 nm)
  • Type of Filter: Bandpass


MECHANICAL SPECIFICATIONS

  • Filter mounted: Mounted (LPFC 6mm)
  • Filter shape: round
  • Filter size: 2 inch
  • Filter Thickness (without cell): 2 mm


USAGE & FEATURES

  • Filter Usage: CMOSCCDRGB
  • Single or Set?: Filter-Set
  • Special Features: CMOS-optimized with Life-Coat™
