Motor Focus Kit Zero Celestron SCT C6,8,9.25'', Edge, RASA 8

Motor Focus Kit Zero Celestron SCT C6,8,9.25'', Edge, RASA 8"

Motor Focus Kit Zero Celestron SCT C6,8,9.25'', Edge, RASA 8"

PEGASUS

369,00 €

Διαθέσιμο με Προπαραγγελία

Διαθέσιμο με Προπαραγγελία

Στην περίπτωση αυτή περιλαμβάνονται προϊόντα που δεν κρατάμε σε στοκ αλλά διατίθενται μόνον κατόπιν προ-παραγγελίας. Μόλις λάβουμε την παραγγελία σας, θα σας ειδοποιήσουμε με e-mail ή τηλεφωνικά, για τον ακριβή χρόνο παράδοσης.

Διαθεσιμότητα: Σε απόθεμα
SKU
PEG-FCZERO-SCT68925


Motor Focus Kit Zero Celestron SCT C6,8,9.25'', Edge, RASA 8"


A must have for successful astrophotography sessions with your SCT telescope

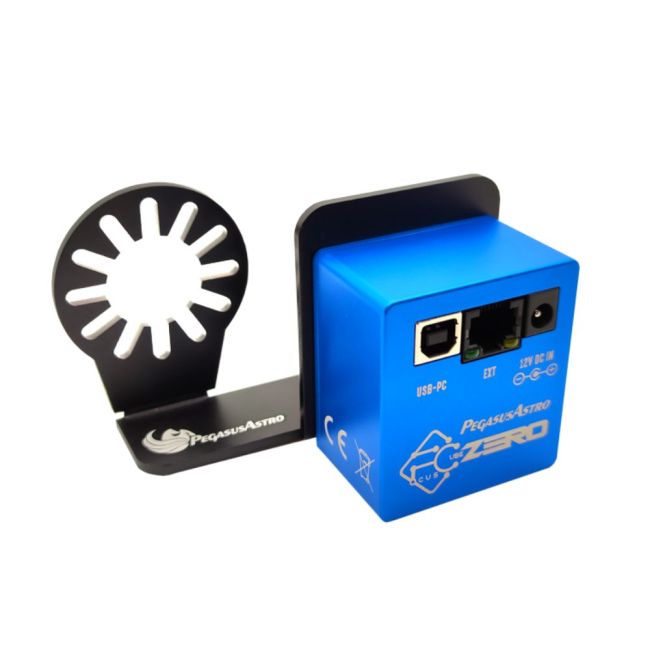

Focus fast, reliable, and accurate your Celestron SCT telescope by using the “FocusCube Zero“.


Designed in high quality with modern electronics, FocusCube can provide digital precise focus control from a PC. The device includes a stepper motor for absolute position focusing. Electronics and stepper motor are enclosed in a compact-sized box.


The Stepper motor provides high speed, focus accuracy, and zero backlash. You only need this device to focus! Attach the FocusCube Zero to your SCT telescope, plug the power, the USB cable, download ASCOM drivers or our Unity platform and you are ready to go!

IMPORTANT NOTE

FocusCube is a standalone device and includes controller functionality.
No physical hand controller is included or required.
DO NOT pair it with the Dual Motor Focus Controller or any other controller in the market.
DO NOT connect this RJ45 port to the Ultimate Powerbox RJ45 Stepper Output
The RJ45 port at the back is only for the hand controller or the included temperature sensor.


Zero backlash stepper motor

The embedded bipolar stepper motor provides a zero-backlash movement. The motor allows you to quickly move from any focus point to another. As there is no reduction gearbox the speed is suitable to move the primary mirror in or out at very fast rates.


Easy and repeatable V-Curve focus

A V-Curve is the result of moving the focus of a telescope from an outside focus position into the focus and then further into the same direction out of focus again.
With FocusCube Zero you can easily achieve nearly perfect v-curve lines leading to a sharply focused image.


SCT Bracket

A special shaped black anodised aluminium bracket, hard to bend, can be attached to most of the Celestron SCT telescopes.


We have successfully installed it on:

  • Celestron Classic & EdgeHD 6, 8, 9.25 (SKU:PEG-FCZERO-SCT68925)
  • Celestron Classic & Edge HD 11 (SKU:PEG-FCZERO-SCT11)
  • Celestron Classic & Edge HD 14 (SKU:PEG-FCZERO-SCT14)
  • Celestron RASA 8” (SKU: PEG-FCZERO-SCT68925)
  • Cellestron RASA 11” (V2 – For V1 you will need Celestron Retrofit Kit) (SKU:PEG-FCZERO-SCT11)
  • Celestron RASA 14” (SKU:PEG-FCZERO-SCT14)


Please notice that we provide three different SCT versions.

The difference is in the metal pulley bore diameter & the screw length in the package.
Please make sure you have selected the correct type for your telescope.


Please note that some older SCT series are not compatible with the SCT bracket so contact us with a photo of your telescope focuser if you are not certain that your telescope can accept the SCT bracket.



SCT Bracket was designed to support Celestron SCT Telescopes. Although, we have seen that it perfectly fits on Meade SCT telescopes that have the round focus knob. Please check the image if your Meade Telescope is the same as the photo on the right.

For more information about your Meade compatibility please contact us.


Additional Information

Temperature Probe

An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver (probe is included in package)


Expansion Port / Manual Focus (optional accessory)

FocusCube includes an expansion RJ45 port at the back of the enclosure. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be acquired for those who might want to add this functionality


ASCOM supported

The controller is fully compatible with the latest ASCOM 6


INDI (Open Astronomy Instrumentation) supported

Pegasus Focuscube is fully compatible with INDI. Driver is included in stable libindi.

Official Indi Driver :
http://indilib.org/devices/focusers/pegasus-dmfc.html


Firmware upgrade support

Firmware supports re-programming via the USB 2.0 connection using upgrade software ((only available for Windows), for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.


Dimensions & Weight

52 x 58 x 35 mm / Weight 280g


Unity Platform Support

Unity Platform allows the full control and configuration of FocusCube Zero.


Unity Platform Support

Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.
A modern frontend allows the full control of all Pegasus Astro devices.
Moreover, a REST JSON api helps developers from 3rd party software to interact with our products.
As we continuously develop our applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases.

Τεχνικά Χαρακτηριστικά
Καθ.Βάρος (γρ.) 280
