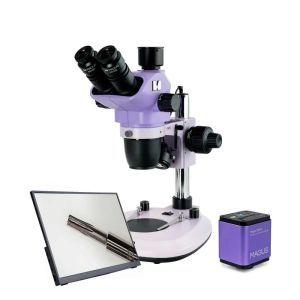

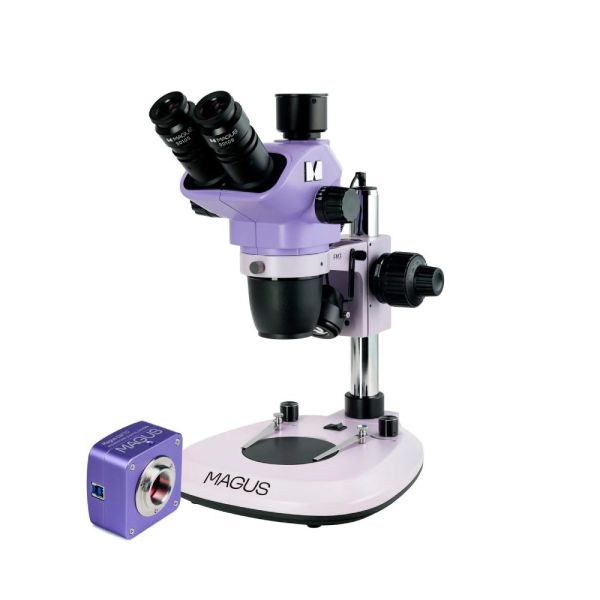

MAGUS STEREO D8T PLUS


Key features

Microscope features:

  • The zoom lens allows for a smooth magnification change with no loss of focus: 8.4:1 zoom ratio
  • 360° rotatable trinocular head with a vertical tube for mounting a digital camera
  • The advantages of the Greenough optical design: large depth of field, high-resolution 3D visualization, compact design, and reasonable price
  • LEDs of transmitted (3W) and reflected (3W) light with a long lifetime
  • A wide range of compatible optional accessories



Camera features:

  • The scientific camera with a 4/3" sensor and 5280x3954px resolution delivers highly detailed images without background noise at the full magnification range of the microscope objective
    17fps at 5280x3954px is enough for focus adjustment
  • Up to 192 frames per second at reduced resolution – for classroom demonstrations, recording moving objects, and video recording
  • SONY Exmor backlit color CMOS sensor delivers low noise performance and high light sensitivity even in low light conditions: clearer, brighter, and more color-saturated images
  • USB 3.0 interface for fast data transfer with no jerking or lagging
  • The software has these functions: photography, video recording, editing, external monitor display, and linear and angular measurement


The stereomicroscope with the Greenough optical design provides accurate details of the surface topography with no loss of spatial orientation, thereby ensuring a large depth of field when observing three-dimensional objects.
The microscope smoothly changes magnification by a factor of 8.4 between 6.5x and 55x while maintaining a working distance of 105mm. It has built-in transmitted and reflected light illuminators for studying translucent and opaque objects. The microscope provides for the installation of polarized light and darkfield accessories.
The camera in the digital microscope allows for the recording of the observation process, including its intermediate and final outcomes. The 21MP sensor delivers the required resolution on the stereomicroscope. The 4/3" sensor with a 1x adapter displays a field of view of 26.76x20mm on the computer screen with the microscope’s lowest magnification.
The microscope is used for restoration, assembly, and quality control as well as in zoology and botany.


Digital camera

MAGUS CBF70 scientific digital camera with 21MP resolution and a 4/3" sensor combines ultra-low noise and ultra-high sensitivity to provide images and videos with sharp detail.
The camera is suitable for operation over the full magnification range of the microscope objective, from 0.65x to 5.5x.
The sensor size is 4/3". Therefore, a 1x C-mount adapter is used for mounting a camera on the microscope. The field of view on the screen is as close as possible to the field of view in the eyepiece, but the circular field is cropped on four sides.
The 21MP sensor produces a realistic image in 5280x3954px. At this resolution, the frame rate is 17fps, which is enough to fine-tune the focus of the microscope.
At resolutions of 2640x1976px, 1760x1316px, and 584x438px, the rate increases to 56fps, 67fps, and 192fps, respectively. The transitions between frames become smoother and the camera captures the small movements of the object. These modes are suitable for classroom demonstrations, video recording, and observing moving objects.
The USB 3.0 provides 10 times faster data transfer rates than USB 2.0, thereby ensuring comfort when working with a video stream that is free of lags and jerks even when moving the specimen at 21MP resolution.

Microscope head
Trinocular head is 360° rotatable and can be locked in any desired position. The digital camera is mounted in the trinocular tube using a C-mount adapter.
The light path does not change. The splitting ratio is fixed: 80% to an eyepiece and 20% to the trinocular tube. The user observes the image in the eyepieces and on the screen at the same time.
The basic configuration includes 10x/22mm eyepieces with diopter adjustment and eye relief to work with glasses.

Zoom objective
The objective allows for the smooth change of magnification up to 8.4 times with no loss of focus maintaining a large working distance of 105mm. The microscope generates an upright (not inverted) three-dimensional image. Auxiliary objective lenses change the magnification range, field of view, and working distance of the microscope.

Focusing mechanism
Coaxial coarse and fine focusing knobs are located on both sides of the stand. The fine focusing makes it easy to adjust the microscope when using magnifications above 40x. The coarse focusing tension is adjustable.

Stage plate
A frosted glass or black-and-white plate is selected depending on the specimen. The frosted glass plate ensures even illumination and optimal light scattering when transparent and translucent objects are observed. The black-and-white plate is selected for observing opaque objects against a contrasting background: the black side for light objects and the white side for dark objects.

Light sources
The microscope has a 3W LED transmitted light illuminator and a 3W LED reflected light oblique illuminator. The LED lifetime: 50,000 hours.

Accessories
There is a wide range of accessories for the microscope.
Eyepieces and auxiliary objective lenses extend the magnification range of the microscope.
Digital cameras output images from the microscope to a monitor.
C-mount adapters connect a camera to a microscope. The adapter magnification is selected to match the camera sensor size.
Calibration slides are used for measuring specimens. The scale value on the calibration slide of stereomicroscopes is 0.1mm.
A polarizer/analyzer set is used to study anisotropic samples.
A darkfield condenser with a gem clip allows for studying precious and semi-precious stones.
A ring light is used to provide shadow-free lighting in the working area in reflected light.
A ring light with a polarizer removes glare from the image of polished metal surfaces.
A mechanical stage enables the smooth movement of specimens with no jerks along two axes and offers additional convenience when magnifications above 20x are used.
A ring light with sector control and a gooseneck light are used to fine-tune the illumination in the working area. Light is exposed at a selected angle, creating the light shadows required for the observations, while a certain part of the specimen remains illuminated.
Universal stands allow you to enlarge the working area, thereby giving you more freedom in choosing the position of the microscope head above the workstation.

Microscope specifications

  • Microscope design: upright
  • Image field: stereo
  • Microscopy techniques: brightfield, darkfield (optional), polarized light (optional)
  • Optical design: Greenough
  • Microscope magnification, x: 6.5–55 basic configuration (*optional:  3.25–330)
  • Microscope head: trinocular
  • Microscope head: 360° rotatable, lockable in any desired position
  • C-mount adapter magnification, x: 1
  • Inclination: 45°
  • Interpupillary distance, mm: 54–75
  • Eyepiece diameter, mm: 30
  • Eyepieces, x/field, mm: 10x/22 with diopter adjustment ± 5dp, eye relief (*optional:  10x/22mm with a scale, 15x/16, 20х/12, 25x/9, 30x/8)
  • Zoom objective, x/working distance, mm/field of view with 10x eyepiece, mm: 0.65–5.5/105/33.8–4 (*optional:  when using additional eyepieces and objective lenses:  3.25–330/177, 47, 26/67.7–0.9)
  • Zoom ratio: 8.4:1
  • Stage plate: black-and-white plate Ø95mm, frosted glass plate
  • Focusing mechanism: coaxial coarse & fine focusing knobs on both sides
  • Coarse focusing travel, mm: 45
  • Fine focusing scale value, μm: 2
  • Coarse focusing tension adjusting knob: +
  • Illumination method: transmitted and reflected light
  • Transmitted light source: 3W LED with adjustable brightness
  • Reflected light source: oblique illumination – 3W LED with adjustable brightness
  • Auxiliary objective lens, x: 0.5; 1.5; 2
  • Darkfield condenser: *optional
  • Polarizer/analyzer set: *optional
  • Power supply, V/Hz: AC power supply, 115–230/50/60
  • Operating temperature range, °C: 0… 40
  • Operating humidity range, %: 20… 85


Camera specifications

  • Sensor: SONY Exmor CMOS
  • Color/monochrome: color
  • Megapixels: 21
  • Maximum resolution, pix: 5280x3954
  • Sensor size: 4/3" (17.4x13.0mm)
  • Pixel size, μm: 3.3x3.3
  • Light sensitivity: 399mV at 1/30s
  • Signal/noise ratio: 0.1mV at 1/30s
  • Exposure: 0.1ms–15 s
  • Video recording: +
  • Frame rate, fps at resolution: 17@5280x3954; 17@3952x3952; 56@2640x1976; 67@1760x1316; 192@584x438
  • Place of installation: trinocular tube, eyepiece tube instead of eyepiece
  • Image format: *.jpg, *.bmp, *.png, *.tif
  • Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
  • Spectral range, nm: 380–650 (with IR filter)
  • Shutter type: ERS (electronic rolling shutter)
  • White balance: auto/manual
  • Exposure control: auto/manual
  • Software features: image size, brightness, exposure time
  • Output: USB 3.0, 5Gb/s
  • System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display
  • Software: MAGUS View
  • Mount type: C-mount
  • Body: solid aluminum
  • Power supply: DC current, 5V, with the USB port of the PC
  • Operating temperature range, °C: –10... 50 (14… 122)
  • Operating humidity range, %: 30… 80


In the box:

  • MAGUS CBF70 digital camera (digital camera, USB cable, storage device with drivers and software, user manual, and warranty card)
  • Base with built-in transmitted light source, built-in power supply, and stand with focusing mechanism
  • Microscope head – objective part and eyepiece tubes
  • 10х/22mm eyepiece with eye relief and diopter adjustment (2 pcs.)
  • 1х C-mount adapter
  • Black-and-white plate
  • Frosted glass plate
  • Reflected light oblique illuminator
  • Microscope power cord
  • Dust cover
  • User manual and warranty card



Available on request:

  • 10x/22mm eyepiece with a scale
  • 15х/16mm eyepiece (2 pcs.)
  • 20х/12mm eyepiece (2 pcs.)
  • 25х/9mm eyepiece (2 pcs.)
  • 30х/8mm eyepiece (2 pcs.)
  • 0.5x auxiliary objective lens
  • 1.5x auxiliary objective lens
  • 2x auxiliary objective lens
  • 0.5x C-mount adapter
  • Polarizer/analyzer set
  • Darkfield condenser
  • Ring light
  • Ring light with polarizer
  • Ring light with sector control
  • Dual gooseneck light
  • Mechanical stage
  • Universal stand with a focusing mechanism
  • Gem clip
  • Digital camera
  • Calibration slide
