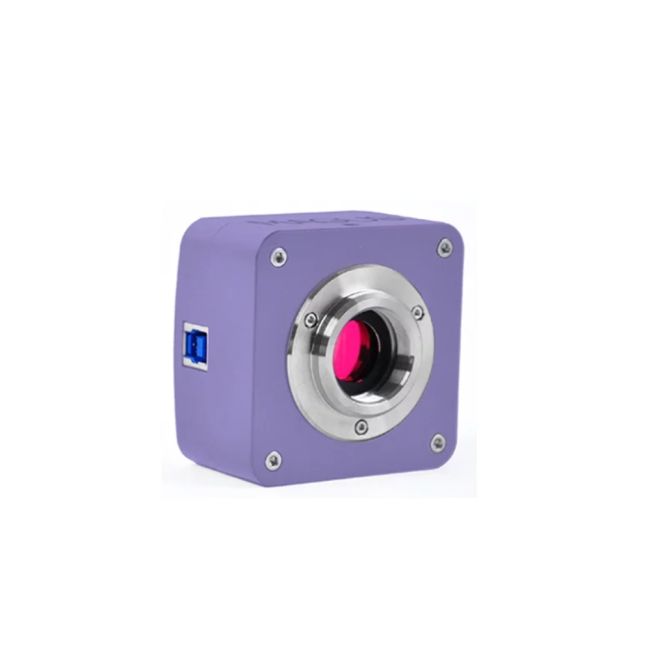

MAGUS CBF70 DIGITAL CAMERA

MAGUS CBF70 DIGITAL CAMERA

Features:

• For brightfield microscopy observations with 4x, 10x, 20x, and 40x objectives
• 21MP resolution: When working with low magnification objectives, the camera will allow you to see finer details
• 17fps at maximum resolution is enough for focusing adjustment
• Up to 192fps at reduced resolution for classroom demonstrations, observation of moving samples, video recording; movement of a sample can be seen without jerkiness or delays
• SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
• USB 3.0 interface for fast, smooth data transfer
• Software with photo, video recording, editing, external display, and linear and angular measurement

Sensor
The camera is equipped with a SONY Exmor backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
Large sensor – 4/3''. The physical size of the sensor affects the image quality: The larger it is, the cleaner the image will be, and the greater the color depth and the wider the field of view. The 3.3x3.3µm pixel size provides a light sensitivity of 399mV at 1/30s. To maximize the field of view without distortion, we recommend using a 1x magnification adapter.

Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure linear and angular dimensions of objects and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.

Installation
The camera is mounted on the microscope in the trinocular tube or side camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapters to fit the tube diameter (not included).
