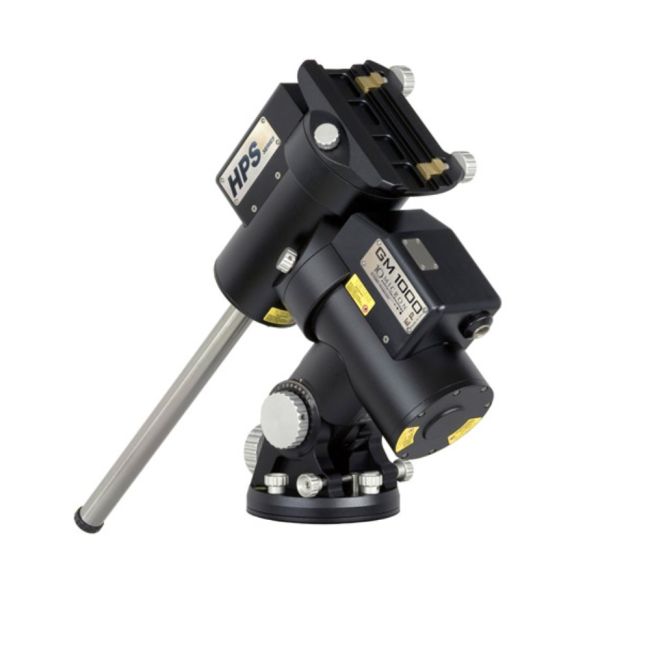

GM1000 HPS EP GOTO-MOUNT

GM1000 HPS EP GOTO-MOUNT

MORE CAPACITY, SAME CLASS, SAME PRICE:
The GM1000 HPS EP (Enhanced Performance) carries the success story of the GM1000 HPS into the next generation. It is not a replacement but an evolution of the original GM1000 HPS. Through targeted mechanical reinforcements – including a larger 32 mm RA-axis and upgraded bearings – it offers 20 % more payload capacity (30 kg / 66 lbs) while maintaining virtually the same overall weight. This makes it the first choice for astrophotographers who demand maximum stability in a compact mount class.

The GM1000 HPS mount has been, and remains, a benchmark in its segment: a perfect balance of payload capacity, portability, and the legendary pointing and tracking accuracy guaranteed by our HPS technology. HPS stands for High Precision and Speed

The GM1000 HPS is universally recognized for:

• Absolute Precision: Thanks to high-precision absolute encoders on both axes, it delivers flawless pointing and tracking, eliminating the need for autoguiding in most applications.
• Exceptional Payload-to-Weight Ratio: Optimal payload capacity in a lightweight and easily transportable mount body.
• Robustness and Reliability: Built to last and perform night after night, under any conditions.
• Advanced Software: A powerful and intuitive control system that offers professional-grade features to all users.
• Remote Operation Capabilities & Global Support: Engineered for reliable remote applications, supported by a comprehensive global sales and technical support network.

The GM 1000 HPS EP reaches a go to speed up to 15°/sec, a pointing accuracy  <20" and a tracking accuracy of approx. +/- 1" in 15min (0.7" RMS).

In field use the mount is quicker and easier to install and to align than any conventional equatorial mount.

The GM1000 HPS EP is the result of a targeted R&D process aimed at enhancing the mount's key structural and technological areas. Every enhancement must translate into a tangible, measurable benefit for the astrophotographer.

Main innovations – and, more importantly, the advantages:

• Increased Payload Capacity – now 30 kg (66 lbs) at the same price: + 20% more capacity, e. g. larger-aperture telescopes, heavy filter wheels and cameras – while maintaining maximum stability and tracking accuracy
• Reinforced Axis: Both RA ans DEC axes have been improved with a new design and an increased thickness. The RA diameter has also been increased in diameter. This results in an exponential increase in structural rigidity, drastically reducing vibrations and flexure.
• New, Larger and Reinforced Bearings: As a direct result of the new axis, the larger bearings ensure smoother movements, optimal management of the increased load, and superior longevity of the mechanical system.
• Redesigned Worm Gear Supports: The new mechanical housings have been optimized to integrate more robust and high-performance worm gear supports. This minimizes any potential flexure in the drive system, a critical factor for an excellent tracking.
• Enhanced Build Quality and Manufacturing Precision: The use of new CNC machinery and 3D coordinate measuring machines (CMM) allows tighter mechanical tolerances and consistent quality for every unit.
• New V3 control box: Hardware and Software improvements, leveraging modernized electronics and EU-made industrial-grade connectors for superior performance and robust, long-lasting connections.
• Selective Sourcing of Materials: Stricter material and component selection ensures top-tier performance and dependability.

• Enhanced Connectivity & Web Interface: Unique connectivity options, including a sophisticated web interface, enables comprehensive monitoring and precise adjustments without direct physical interaction.
• Optimized for Remote Operation
• Global Support Network

HPS Features
HPS stands for High Precision and Speed and the mount is a further development of the known GM2000 QCI of 10Micron with the same proven mechanics but less capacity than this – and thus easier to transport.

MECHANICS

• Premium materials and processing for high quality and durability.
• No casting parts, all pieces are CNC-milled.
• High-precision traditional worm-wheel drives and clutches for thebest reliability.
• Internal wiring – no external mount cables.
• High torque brushless servo motors, maintanence free, allowing the GM 1000 a pointing speed of up to 15°/s
• Proprietary motor drive electronic board for easy servicing.

ELECTRONICS

• Closed loop system with on-axis encoders feedback.
• Absolute encoders directly mounted on both axes, featuring < 0.1 arcsec readout error, fully encapsulated and factory calibrated.
• Extremely low power consumption and micro format (20 x 15 x 8cm) electronics.
• Control box and keypad can be easily detached and safely stored after your observations – for a better protection of the electronic components or for servicing, no need to return your mount!
• Premium quality electric and electronic components for use in a wide range of operational temperatures.
• Virtual Keypad tool on PC available for remote control.

Key Enhancements of the Control Box V3:

10Micron has updated the hardware of the electronic control box. From now on, all 10Micron mounts will be shipped with the new Version 3 Control Box as standard.

• Advanced Mainboard: New ARM-based processor for enhanced performance and future-proofing.
• High-Quality Industrial Connectors: All power and data connections feature high-quality Binder connectors from Germany, ensuring superior protection against moisture, dust, and environmental hazards.
• Enhanced Connectivity: A dedicated port for an external WiFi antenna improves wireless communication capabilities.
• Optimized Data Interfaces: New RJ ports for LAN, Autoguide, and GPS ensure reliable signal transmission.
• Precision GPS Integration: The GPS module connects via a PS2 interface (instead of RJ), featuring a built-in PPS signal for ultra-precise timekeeping, ideal for satellite tracking applications.
• Professional Power Connector: The previous connector is replaced with a two-pin Binder plug for 24V DC power.
• A new power cable is included.
• Expanded AUX Interface: A 6-pin AUX port (DIN EN 61076-2-106) enhances remote switch control and power-on feedback.

FIRMWARE

• Powerful firmware featuring advanced mount modeling, with several parameters computation (refraction, optical/mechanical flexures, leap second, mount orientation, object motion, clock synchronization, temperature etc.) and special functions (dual tracking, assisted polar alignment procedure etc.): the only way for perfect unguided tracking during long exposures. Our customers, such as Torben van Hees, now achieve up to 0.2" RMS with the mounts.
• Intuitively operated system, proprietary motor controller with temperature compensated clock, onboard industrial grade Linux computer – intelligence built-in.
• No external PC or laptop mandatory in the field – all functions in the onboard computer can be operated via stand-alone hand control unit (Keypad).
• Precise multistar pointing model, suitable for applications such as high precision spectroscopy, TLE manager for satellite tracking, orbital parameters management for minor planets and comets, individual observing sessions management and much more.
• Stable pointing models for safe East/West load reversal – recordable models database for different telescope setups and accessories configuration.
• Precise and fast polar alignment procedure, managed by the internal software and executable in minutes.
• Fully remote controlled via your observatory PC through 10/100/1000 LAN or WiFi, thanks to a well documented command protocol and drivers, via custom software or standard planetarium software.
• Manual-, Automatic- (ClockSync proprietary software) or GPSbased time; leap second support and full computation of the UT1/ UTC timescales.
• Electronic balance feature.
• Remote diagnostics web assist option with. dedicated server.

Professional Graphic Display Included

• Stand alone control unit – no PC required – includes all necessary functions for field use
• Rugged keypad with metal body and reliable industrial grade micro switches
• Large graphic display with up to five text lines and status icon, heated for low temperature operation, dimmable display and keyboard with LED backlit keys
