ΕΣΤΙΑΣΤΗΣ 2" CRAYFORD ΓΙΑ ΔΙΟΠΤΡΙΚΑ

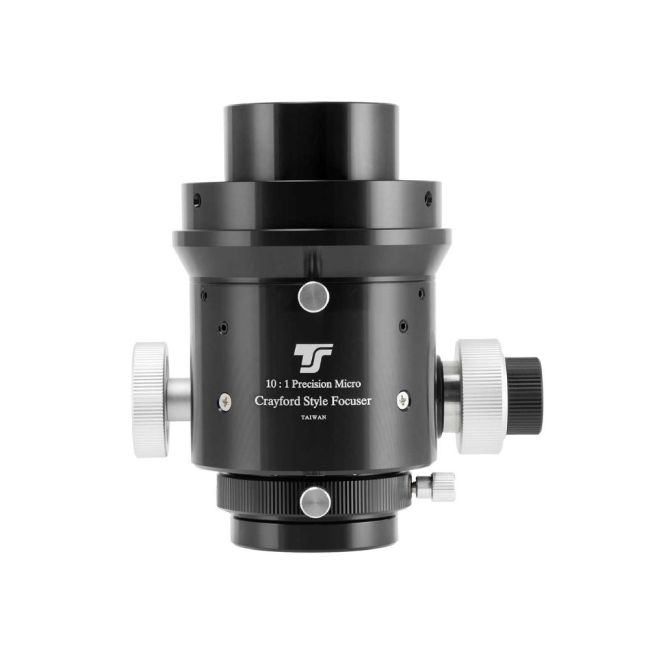

TS-Optics 2" Dual Speed Crayford Focuser for Refractor Telescopes (ΕΚΘΕΣΙΑΚΟ)

Features:

• Including adaptation to refractor tubes and adapters with 86 mm inner diameter
• Fits without additional adapter to many Skywatcher ED refractors, please measure the diameter
• Fits many achromatic Skywatcher refractors from 100 mm aperture without additional adapter (but for example not on BKR102 / Startravel 102), please measure the diameter
• 87.5 mm overall height from the telescope connection of the focuser to the 2" receptacle
• Connection on the eyepiece side: 2" and 1.25" receptacle with compression ring
• Focuser travel 74 mm
• Largely dimensioned and stable ball bearings prevent the draw tube from tilting even under higher loads
• Comes with 360° rotation
• 1:10 micro-reduction (dual speed) enables precise focusing, for example for astrophotography

TS 2" Dual-Speed Crayford Focuser for Refractor Telescopes
The Crayford focuser is well suited for observation and astrophotography with DSLR or astro cameras. We recommend the focuser for accessories up to approx. 2 kg. The focuser is also often bought for the self construction of refractor telescopes or for the improvement of existing telescopes.

The focuser is particularly suitable for many refractor telescopes from Skywatcher, Celestron and Orion. The connection adapter fits directly to the tube or into the reducer which is attached to the back of the tubes. Please measure the diameter before ordering. The tube (or the reduction adapter) must have an inner diameter of 86 mm to fit.

The 1:10 dual-speed micro-reduction significantly improves focusing. Particularly in astrophotography, sharper images are possible because the focus is precisely reached. But observation also becomes easier, as you know exactly when optimum sharpness has been achieved.

Attaching the focuser to the tube:
A telescope adapter with an outer diameter of 86 mm is also included in the scope of delivery of the focuser. In the adapter are three M4 threads at an angle of 120°. This allows you to attach the focuser to your refractor. Of course we can also make an individual adaptation for your telescope. We will be happy to advise you.

Quick manual
Telescope-Service provides a quick guide for the TS Crayford focusers. You can download the PDF here.
