Dragonfly v. 2.0 Observatory controller

LUNATICO ASTRONOMIA

Γίνετε ο πρώτος που θα αξιολογήσει το προϊόν

Dragonfly, The Lunatico device to remotely control your roll-off roof observatory, also from your mobile or tablet!

Διαθέσιμο, συνήθως σε 5-14 μέρες

Διαθεσιμότητα: Σε απόθεμα

SKU

LU-ACNSELDR

Περιγραφή

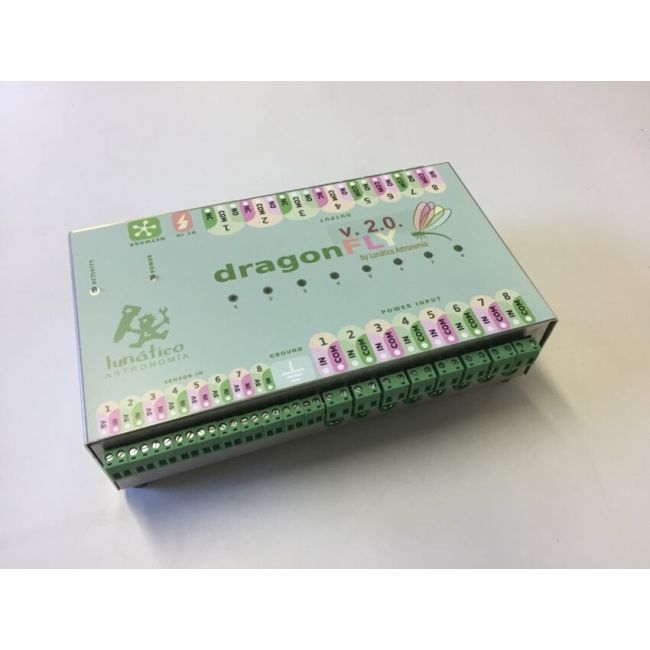

Dragonfly v. 2.0 Observatory controller

Dragonfly, The Lunatico device to remotely control your roll-off roof observatory, also from your mobile or tablet!

With the new software version, including:

Relay restrictions (do not close relay if…)
Roof control from the main panel
Improved log window
New DragonflyConfigurator software to manage the internal settings
New macros, actions the Dragonfly can perform autonomously, very powerful (internet connectivity testing, email / push message sending, wake on lan, relay open / close, sensor checks, etc.)
Internal clock, with timezone support (useful for macros)
3 level password protection
improved ZeroConf connections
Log automatically recorded to disk, including any relay activity

… and of course some internal improvements and fixes.

The new hardware addresses some network problems, found mostly at shared observatories with a lot of network activity, and improved relay protection in case of power supply noise.

Top 6 reasons to get a Dragonfly:

Smart: can perform operations by itself (for example, send you an email or push message, reboot the router if no internet, WOL, etc…)
Smartphones support: custom control app
Universal: with ZeroConf, access it from anywhere – no configuration required
Versatile: roof open and close operations can be customized. Actions can be launched when a sensor or relay changes.
Secure: password protection available (3 levels)
Supported: complete ASCOM and INDIGO and INDIlib roof and switch drivers

With the Dragonfly you can:

switch on and off lights and equipment
open and close the observatory roof
control 8 relays (4 of them double NO/NC, and 4 NO)
monitor the AAG Cloudwatcher and check for safe or unsafe weather conditions
monitor, using magnet or mechanical sensors the mount’s position, the status of the roof…
ZeroConfiguration network system
ASCOM switch & dome interfaces
Improved internal web server:
- simple page to manage the relays and sensors,
- javascript for web page integration

… ASCOM support is available, and also INDIGO and INDIlib. And with a free application for mobiles and tablets.

Dragonfly / Internet switch comparation

	DRAGONFLY	INTERNET SWITCH
Relay control	YES	YES
Actions on relay changes	YES	NO
Sensor display	YES	YES
Actions on sensor changes	YES	NO
Watchdog, internet monitor, messaging…	YES	NO
Smart (autonomous operation)	YES	NO
Versatility	TOTAL	VERY LOW
ZeroConf	YES	NO
Password Security	3 LEVELS	BASIC PASSWORD
Relay Safety (restrictions)	COMPLETE	NO

Technical specifications:

Manages 8 relays (4 of them double NO/NC, and 4 NO), to switch DC or AC
8 input sensors: magnet, contact, etc
Extremely protected against noise
Direct network connection (ethernet)
Power supply: 12V (up to 24V is fine), D.C., requires less than 1A, standard 5.5 / 2.1mm jack, positive inside. Important: highly recommended to have the Dragonfly on its own power supply.
Size: 135 * 61 * 244 mm. box only (total mounted 157 * 70 * 244 mm.)
Easy installation with DIN rails (optional)

Please note, if you’re going to install more than one controller in the same observatory (same network), don’t forget to let us know so we can change the network name of the controller prior to shipment.

Included in the delivery:

DragonFly controller
Banana male connector (8 units)

Power supply not included

The Dragonfly also allows you to take flats in a simple way. Check the flats panels available in several sizes.

Example screens

Dragonfly documentation:
