ΣΤΗΡΙΞΗ HEQ5-R-PRO SYNSCAN GoTo

ΣΤΗΡΙΞΗ HEQ5-R-PRO SYNSCAN GoTo

ΣΤΗΡΙΞΗ HEQ5-R-PRO SYNSCAN GoTo

SKYWATCHER

With the HEQ5-R Pro, you get a complete system for tracking a telescope for almost any application: a real workhorse, now improved and modernised once again!

€1,679.00

Available Upon Request

Available Upon Request

This includes products that we do not keep in stock but are only available upon request or have been announced in advance by the manufacturer. These items are usually shipped within 5-14 days. Once we receive your order, we will notify you by e-mail or telephone of the exact delivery time, as well as the amount of any deposit that will be required.

Availability: In stock
SKU
SKHEQ5-RA

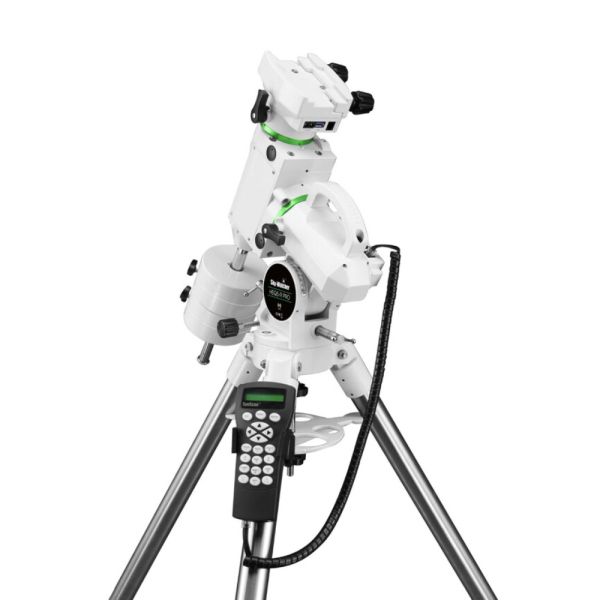

Mount HEQ5-R Pro SynScan GoTo

The new HEQ5-R Pro is the next step in the super popular HEQ5 Pro mount.

The new version offers

  • Greater stability and load capacity for astrophotography thanks to larger diameter worm gears.
  • Improved precision for tracking and guiding with more teeth on the RA and DEC worm gears.
  • Toothed belt drive with minimal backlash, quieter running and smoother drive with higher torque
  • Easier connection options with external power supply and USB ports
  • Improved pole height adjustment with a larger adjustment range
  • Built-in SNAP connection for camera control
  • PPEC worm error correction function (avoids constant repetition of training)
  • Built-in carrying handle for more convenient transport

The included computer-controlled Synscan™ hand controller allows you to position the telescope on a desired object or select pre-programmed tours of the night sky. The user-friendly menu system allows automatic tracking of over 42,000 objects in the night sky.

With the HEQ5-R Pro, you get a complete system for tracking a telescope for almost any application: a real workhorse, now improved and modernised once again!

Capacity

  • Max. additional load capacity (kg): 15
  • Counterweight(s) (piece): 2 x 5kg
  • Mounting saddle: Losmandy & Vixen
  • Polar elevation setting (°): 5 - 72
  • Slow-motion azimuth adjustment (°): +/- 5
  • Toothed belt drive: yes
  • Pre-drive: Toothed belt
  • Drive type: Worm wheel
  • Weight mount head only (kg): 12
  • Diameter of counterweight bar (mm): 20
  • Input voltage: 12
  • Amperage (A): 3
  • Motor type: Stepper motors
  • Worm gear teeth (RA) (piece):160
  • Worm gear teeth (DEC) (piece):144

Special features

  • Handcontroller: yes
  • GPS: - (optional)
  • Updateable via web: yes
  • PEC correction: yes
  • Polar axis scale: yes
  • Autoguider interface: yes
  • GoTo system: yes

Equipment

  • Accessory plate: yes
  • Pole finder: no
  • Counterweights (piece): 2

Tripod

  • Tripod material: Steel
  • Tripod leg diameter (mm): 44

General

  • Total weight (kg): 27,8
  • Type: Mount
  • Type of build: Equatorial
  • Series: EQ5

GoTo control

  • Database: 42.000
  • Software: SynScan
  • GoTo Language: multilingual
  • Autoguiding: yes
  • PEC correction: yes
  • GPS: optional
  • WIFI: optional
  • With hand paddle: yes
  • Tracking speeds: sideral, solar and lunar
  • Precision: 5
