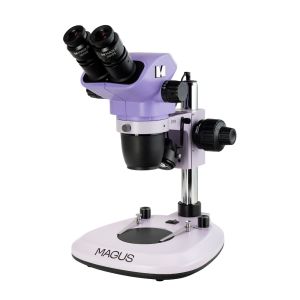

MAGUS Stereo 7T Stereomicroscope

MAGUS Stereo 7T Stereomicroscope

Features:

• Zoom system for achieving smooth magnification without focus reduction; zoom ratio of 6.7:1
• Trinocular head with 360° rotation and a trinocular tube for mounting a digital camera
• The advantages of the Greenough optical design: large depth of field, dimensionality, compact design, and reasonable price.
• LED transmitted light illuminator (3W) and LED reflected light (3W) illuminator with a long lifetime
• A wide range of compatible optional accessories

The stereomicroscope is designed for studying three-dimensional objects and their structure. The microscope is equipped with built-in transmitted and reflected light illuminators for observing transparent and opaque specimens. Polarized light and darkfield techniques are available. The Greenough optical design provides a large depth of field and delivers three-dimensional image thanks to a 15° stereo angle. The microscope magnifies the image of the specimen without loss of spatial orientation. Observing specimens placed on the 105–177mm stage is convenient, and so the microscope is suitable for restoration, soldering, assembly, quality control, and other similar operations.

Microscope head
The trinocular head rotates 360° and can be fixed in any desired position. The digital camera is installed in the trinocular tube by using a C-mount adapter. Additional adapters with different magnifications are available for order.
The base kit includes 10x/22mm eyepieces with diopter adjustment and a long eye relief for working with glasses.

Zoom
The objective smoothly increases magnification up to 6.7x without focus reduction. The microscope delivers an upright (not inverted) three-dimensional image. Additional auxiliary objective lenses may increase the magnification range, change the field of view, and working distance of the microscope.

Focusing mechanism
The coarse focusing knobs are on both sides. The coarse focusing tension can also be adjusted.

Stage plate
You can choose a transparent or black-and-white plate depending on the sample. The transparent plate ensures homogeneous illumination of the specimen and optimal light diffusion for observing transparent and translucent samples. The black-and-white plate is ideal for observing opaque samples against a contrasting background: The black side is for light-colored objects, and the white side is for dark-colored objects.

Light source
The microscope is equipped with an LED transmitted light illuminator (3W) and a reflected light oblique illuminator (3W). The LED has a lifespan of 50,000 hours.

Accessories
There is a line of accessories designed for this microscope.
Eyepieces and auxiliary objective lenses can extend the magnification range of the microscope.
A digital camera outputs the image from the microscope to a monitor.
C-mount adapters connect the camera to the microscope; the adapter magnification is selected depending on the size of the camera matrix.
A calibration slide helps with precise measurement of specimens. The scale value on the calibration slide of stereomicroscopes is 0.1mm.
The polarization device is used to study anisotropic objects.
A darkfield condenser with jewelry tweezers will allow you to study precious and semi-precious stones.
A ring illuminator with a polarizer will remove glare from images of polished metal surfaces.
The mechanical stage moves objects smoothly and without jerking in two axes and provides additional convenience when working at a magnification of over 20x.
A ring illuminator with sector switching and a gooseneck light are used to fine-tune the illumination of the work area. The light is set at the selected angle, creating the light and shadow necessary for the study, and the right part of the specimen remains illuminated.
Universal stands will expand the working area and provide more freedom in choosing the position of the microscope head above the workplace.
