CGX EQUATORIAL 925 HD TELESCOPE

CGX EQUATORIAL 925 HD TELESCOPE

CGX EQUATORIAL 925 HD TELESCOPE

CELESTRON

CGX 925 HD combines Celestron's the art CGX computerized equatorial mount with its acclaimed EdgeHD optical system. With over 9 inches of aperture and our premium StarBright XLT coatings, the CGX 925 HD gives you over 1000 times the light gathering power than the unaided eye.

Available Upon Request

Available Upon Request

In this case, we do not keep the products in stock but are only available upon pre-order. As soon as we receive your order, we will notify you by e-mail or phone, about the exact delivery time.

Availability: In stock
SKU
CE12056

CGX Equatorial 925 HD Telescope


Features:

  • 9.25" HD Optical Tube Assembly
  • CGX EQ Mount and Tripod
  • Celestron’s premium StarBright XLT coatings provide maximum light transmission
  • A 9x50 finderscope, 2” mirror diagonal for more comfortable viewing, and wide-angle 23mm Luminos 2" eyepiece are all included

CGX 925 HD combines Celestron's the art CGX computerized equatorial mount with its acclaimed EdgeHD optical system. With over 9 inches of aperture and our premium StarBright XLT coatings, the CGX 925 HD gives you over 1000 times the light gathering power than the unaided eye. Designed to give diffraction limited performance and offer more resolution than the 800 with less weight than the 1100, the CGX 925 HD is a premier astroimaging telescope made for remote operation.


See the Universe in HD

EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope that produces aberration-free images across a wide visual and photographic field of view. The optical system was designed to reduce more than just off-axis star coma; it also provides an astrograph-quality flat focal plane all the way to the edge of the field of view.


True Astrograph Quality

Many optical designs that advertise themselves as "astrographs" actually only produce pinpoint stars across a curved focal plane. While this may be acceptable for some visual observing, stars will appear out of focus at the edge when used with the flat chip sensor of a digital camera. EdgeHD optics produce a focal plane more than three-times flatter than a standard Schmidt-Cassegrain telescope and dramatically flatter than competing coma-free designs. This guarantees you visibly sharp stars across some of the largest CCD chips available today.


Improved Performance

Superior edge performance not only creates rounder, more pleasing stars, but actually improves the resolution and limiting magnitude when compared to telescopes of equal aperture. With Celestron’s StarBright XLT optical coatings on every surface, EdgeHD optics gives you maximum light throughput across the widest visual and photographic spectrum.



Mechanical Features

In addition to EdgeHD’s optimized optical design, the telescope tube has been redesigned to make sure you get the most from your optics each and every night.

  • Mirror clutches - Flexible tension clutches hold the mirror in place and reduce image shift when taking long exposure astro-images. Once focused, the flexible rods allow the mirror to be held in place without putting any force or pressure on the mirror assembly, keeping the image centered in the eyepiece (or on the sensor).
  • Tube vents - Cooling vents located on the rear cell allow hot air to be released from behind the primary mirror. Each vent has an integrated 50-mesh filter guaranteed to let warm air out without letting dust in.
  • Fastar versatility - EdgeHD is the most versatile imaging telescope available today. At its native f/10, you can achieve the image scale necessary to capture the smallest of deep sky objects. A Barlow gives you added power for high-resolution planetary, lunar and solar imaging. All EdgeHD optical tubes are Fastar-compatible, allowing the secondary mirror to be removed and replaced with a third party lens accessory for ultra-fast f/2 wide field imaging.


Individually Tested

Every EdgeHD that ships has been tested not only for the surface quality of each optical component, but also with a camera and artificial star to ensure the imaging system meets our rigid quality assurance. This “final acceptance test” confirms the EdgeHD will perform in the field and deliver high-quality astroimages.


CGX Mount

Celestron’s workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron’s engineering team applied their years of experience designing German Equatorial mounts to the CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.

The CGX was designed to better support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is our Equatorial backbone to support a wide range of telescopes.




Ergonomics:

  • Two handles for easy pickup and transport
  • Ergonomically designed dovetail clamping knobs
  • Innovative and improved polar alignment adjustment system
  • Ergonomic latitude adjuster for smooth and easy adjustment under full loads
  • Optional add-on polar axis finderscope


Electronics

  • NexStar+ hand control with USB port
  • Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
  • USB 2.0 port, used to connect directly to PC with included software
  • Autoguider port
  • PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved
More Information
Net Weight (g) 49000
Optical design Catadioptric EdgeHD Optics
Aperture (mm) 235
Focal length - F (mm) 2350
Focal ratio (f/) 10
Mount CGX, Computerized Equatorial
Finderscope 9x50
Diagonal 2″ / 1.25″
Maximum useful magnification (x) 555
Limiting stellar magnitude 14.4
Eyepiece 23mm Luminos, 2", ευρυγώνιο
Box 1 680 x 540 x 360 mm ( 40 Kg )
Box 2 420 x 420 x 820 mm ( 15 Kg )

In the box:

  • CGX Equatorial Head
  • CGX Tripod
  • Accessory Tray
  • 2 x 11 lbs counterweights
  • NexStar+ Hand Control
  • 8mm Allen Wrench
  • 12V DC Power Cable
  • Hand Control Holster

HD Features

  • Experience our best optical performance with EdgeHD’s flat-field and coma-free optics for pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces
  • Aluminum optical tube with tube vents featuring an integrated 50-mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
  • Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories



    CGX Mount and Tripod Features

    • Sturdier and more rigid with quicker dampening time
    • Increased load capacity to 55 lbs
    • Motors provide more torque, better slewing and tracking under heavy loads
    • Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
    • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
    • Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
    • Internal hard stops for both axes prevents cable tension and tripod strike
    • Internal optical sensors on both axes for simple and safe remote operation
    • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
    • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
    • Control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
    • Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
    • Wider tripod stance for improved stability
    • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
    • Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle

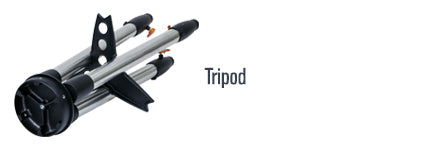

    Tripod inclues:

    • 2" steel legs with height index marks for quick leveling
    • "Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
    • +20° of additional tracking past the meridian on either side
    • Tripod legs can be collapsed with accessory tray installed for faster setup and transport


    Spacifications:

    • Optical Tube: Aluminum
    • Lowest Useful Magnification: 34x
    • Resolution (Rayleigh): 0.59 arc seconds
    • Resolution (Dawes): 0.49 arc seconds
    • Light Gathering Power (Compared to human eye): 1127x
      • Secondary Mirror Obstruction: 85mm (3.35")
        • Secondary Mirror Obstruction by Diameter: 36%
        • Secondary Mirror Obstruction by Area: 13%
        • Optical Coatings: StarBright XLT
        • Optical Tube Length: 559mm (22")
        • Optical Tube Diameter: 271.78mm (10.7")
        • Optical Tube Weight: 21 lbs (9.53 kg)
        • Dovetail: CGE Dovetail Bar
        • Instrument load capacity: 55 lbs (25 kg)
        • Height adjustment range (includes mount and tripod): 1200.15mm - 1968.5mm (47.25" - 77.5")
        • Tripod Leg Diameter: 50.8mm (2") Steel tripod with graduated markings on lower section
        • Latitude adjustment range: 3° - 65°
        • Mount Head Weight: 44 lbs (20 kg)
        • Accessory Tray: Yes
        • Tripod Weight: 19.2 lbs (8.7 kg)
        • Weight of Counterweights: 2 x 11 lbs
        • Slew Speeds: 9 slew speeds - max speed 4°/second
        • Tracking Rates: Sidereal, Solar and Lunar
        • Tracking Modes: EQ North and EQ South
        • GPS: N/A
        • Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
        • Number of Auxiliary Ports: 2 AUX Ports (Hand Control can use either AUX Port)
        • Autoguide Port: Yes
          • USB Port: Yes, input for Mount and Hand Control
          • Power Requirements: 12V DC, 4 amps
            • Motor Drive: DC servo motors
            • Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
              • Periodic Error Correction: Yes
                • Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
                • NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
                • Software: CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App
                  • Total Kit Weight: 106.2 lbs (48.17 kg)
