ZWO
Entry level camera for deep space photography
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

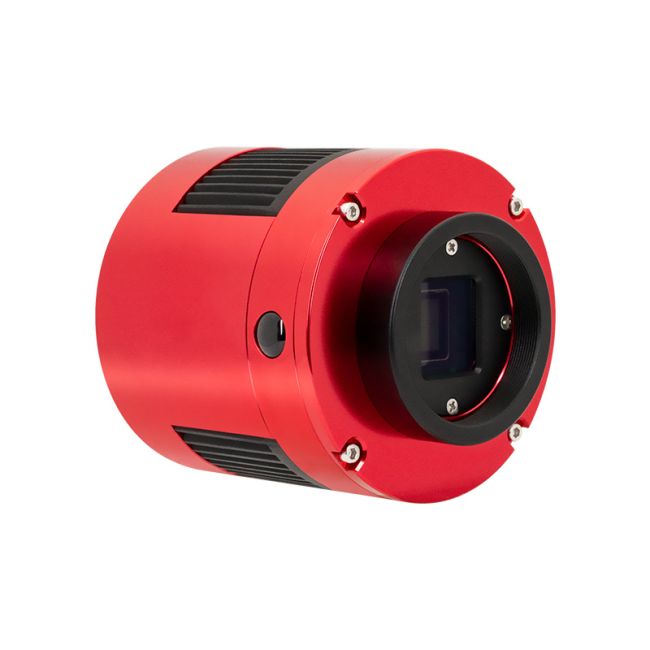

CAMERA ASI ASI533MM Pro
Net Weight (g) | 470 |
---|
Technical Data:
Camera technical details
Sensor: Sony-IMX533CLK-D
Diagonal: 15.968mm
Resolution: 9 Mega Pixel 3008*3008
Pixel Size: 3.76μm
Max FPS at full resolution: 20fps
Bayer Pattern: RGGB
Shutter: Rolling shutter
Exposure Range: 32μs-2000s
ROI: Supported
Read Noise: 1.0-3.8e
QE peak: 91%
Full well: 50000e
ADC:14bit
Interface: USB 3.0 Type-B
Adaptor: M42X0.75
Protect window: D32-2-AR
Dimensions: 78mm Diameter
Weight: 470g
Back Focus Distance: 17.5mm
Delta T: 30°C-35°C below ambient
Camera Power consumption: 650mA at 5V
Cooler Power consumption: 12V at 3A Max
Working Temperature: -5°C—50°C
Storage Temperature: -10°C—60°C
Working Relative Humidity: 0%—80%
Storage Relative Humidity: 20%—95%
Max FPS at full resolution:
14Bit ADC
3008×3008 19.88fps
1920×1080 54.11fps
1280×720 79.74fps
640×480 116.55ps
320×240 216.45fps
more resolutions are in software, support customize resolution.
