PLANEWAVE
PlaneWave CDK400 Telescope System f/6.8 consits of the CDK17 and the L-500 Direct Drive Mount with integrated high resolution encoders and high speed slewing.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

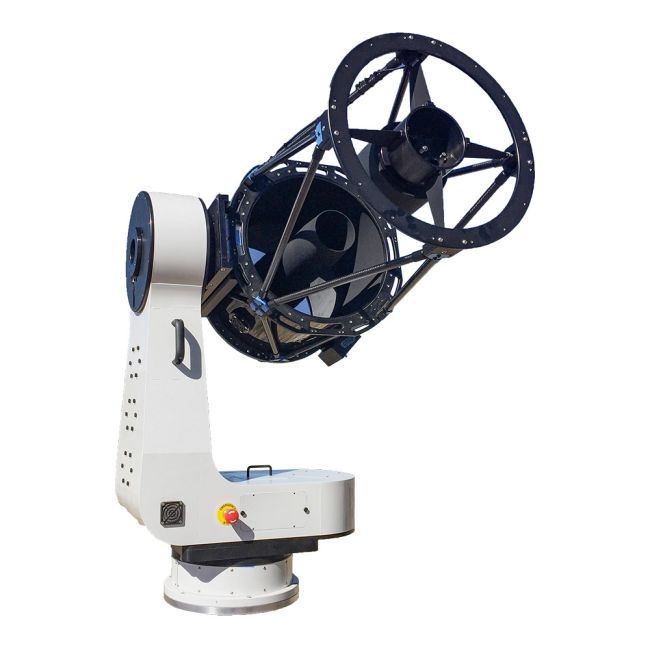

PlaneWave CDK400 Telescope System f/6.8
Based on the technology of our PW-1000 (1-meter) Observatory telescope, PlaneWave combines its revolutionary optical systems with its brand new innovative L-Series direct drive mount that sets a new standard for small observatory telescopes.
PlaneWave CDK400 Telescope System f/6.8 consits of the CDK17 and the L-500 Direct Drive Mount with integrated high resolution encoders and high speed slewing.
The PlaneWave Instruments CDK17 is a 17 inch (0.43 m) f/6.8 Corrected Dall-Kirkham Astrograph telescope. The CDK17 covers a 70 mm field of view without any field curvature, off-axis coma, or astigmatism. The instrument weight is 94 lbs (43 kg) and comes standard with a back plate retaining ring ready to accept the focuser of your choice.
The abbreviation CDK stands for the optical system of the PlaneWave astrographs - a Dall Kirkham Cassegrain with a optical correction unit.
PlaneWave CDK400 Telescope System f/6.8 with Fused Silica Optics
incl. a CDK17 Astrograph and L-500 Mount
Fused Silica
Fused Silica is a synthetic amorphous silica glass of the highest purity and one of the most transparent glasses made. The optical and thermal properties of fused silica are superior to other types of glass due to its purity. Its transmission and homogeneity exceed those of crystalline quartz without the problems of temperature instability inherent in the crystalline form. Fused Silica has a coefficient of thermal expansion six times lower than Borosilicate (Pyrex) glass, which means that as fused silica cools down, it preserves its shape to a high degree of accuracy. This translates into consistent optical performance and unchanging focus over temperature changes. With its high melting temperature ()~ 1.600 degree Celsius), a very low coefficient of thermal expansion and resistance to thermal shock, fused silica is the material of choice for professional observatories as well as various scientific applications.
The L-Series combines versatility, simplicity and affordability by combining all the technology of our Observatory class telescopes into a compact stand-alone mount.
The mount is equipped with direct drives motors as well as high-resolution encorders. The software is ASCOM compatible and the direct drive motors can move the telescope at incredible speeds for tracking satellites.
In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. The mass it takes to make a rigid alt/az mount is substantially less, leading to cost savings. Unlike German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed.
Control System
IMPORTANT:
Τhe telescope is transported from abroad, with extra costs of special packaging and shipping. These costs are related to the transport of the telescope from abroad to Greece and are irrelevant of the shipping cost within Greece. Please, contact us for the total cost.
| Net Weight (g) | 141000 |
|---|---|
| Optical design | Κατοπτρικό Dall-Kirkham |
| Aperture (mm) | 432 |
| Focal length - F (mm) | 2939 |
| Focal ratio (f/) | 6.8 |
| Box 1 | 762 x 940 x 1473 mm ( 102.1 Kg ) |
| Box 2 | 9900 x 1520 x 1067 mm ( 204.1 Kg ) |
In the box:
CDK 17
L-500
Specifications:
OPTICS
