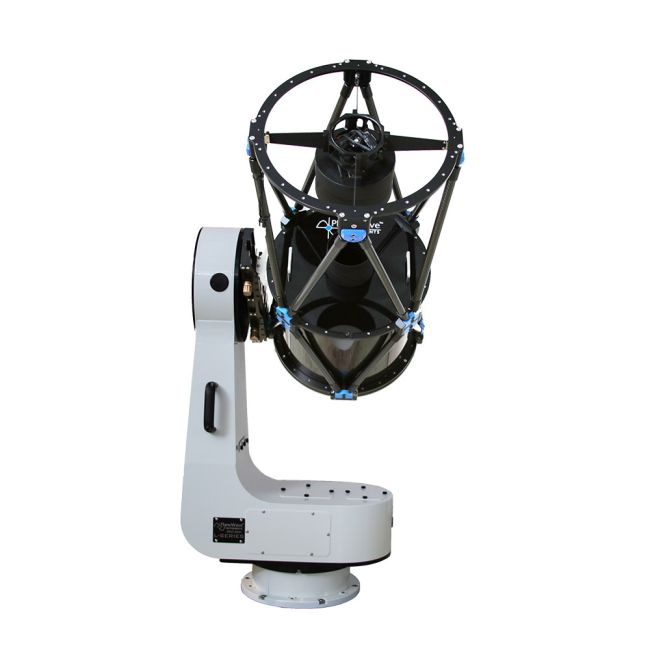

PlaneWave CDK350 Telescope System f/7.2 consits of the CDK14 and the L-350 Direct Drive Mount with integrated high resolution encoders and high speed slewing.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order.
As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.
Based on the technology of our PW-1000 (1-meter) Observatory telescope, PlaneWave combines its revolutionary optical systems with its brand new innovative L-Series direct drive mount that sets a new standard for small observatory telescopes.
PlaneWave CDK350 Telescope System f/7.2 consits of the CDK14 and the L-350 Direct Drive Mount with integrated high resolution encoders and high speed slewing.
The abbreviation CDK stands for the optical system of the PlaneWave astrographs - a Dall Kirkham Cassegrain with a optical correction unit. The result is a CDK 14" which is free from off-axis coma and off-axis astigmatism, yielding a perfectly flat field all the way out to the edge of a 70mm image circle.
PlaneWave CDK350 Telescope System f/7.2 with Fused Silica Optics
incl. a CDK14 Astrograph and L-350 Mount
CDK14 Astrograph, 14 inch, modified to Dall-Kirkham, with fully corrected image field
3" Dovetail, focal length 2.563 mm (f/7.2) and 70 mm field of view without any field curavature, off-axis coma, or astigmatism
Delta T Ready, 3,5" Hedrick Focuser and EFA Kit separately available
L-350 can hold payload of over 45 kg (100 lbs), for CDK14
Zero Backlash, Zero Periodic Error
Incredible slew speedup to 50 degrees per second
With integrated high resolution encoders
Fused Silica
Fused Silica is a synthetic amorphous silica glass of the highest purity and one of the most transparent glasses made. The optical and thermal properties of fused silica are superior to other types of glass due to its purity. Its transmission and homogeneity exceed those of crystalline quartz without the problems of temperature instability inherent in the crystalline form. Fused Silica has a coefficient of thermal expansion six times lower than Borosilicate (Pyrex) glass, which means that as fused silica cools down, it preserves its shape to a high degree of accuracy. This translates into consistent optical performance and unchanging focus over temperature changes. With its high melting temperature ()~ 1.600 degree Celsius), a very low coefficient of thermal expansion and resistance to thermal shock, fused silica is the material of choice for professional observatories as well as various scientific applications.
The L-Series combines versatility, simplicity and affordability by combining all the technology of our Observatory class telescopes into a compact stand-alone mount.
The mount is equipped with direct drives motors as well as high-resolution encorders. The software is ASCOM compatible and the direct drive motors can move the telescope at incredible speeds for tracking satellites.
In its Alt/Az configuration it is considerably more compact than its equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure. The mass it takes to make a rigid alt/az mount is substantially less, leading to cost savings. Unlike German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed.
L-Series Features:
Direct-drive motors on each axis for smooth, fast, and virtually silent movement of the telescope
Slew speeds up to 50 degrees per second
High resolution encoders on each axis for precise positioning
Zero backlash, Zero periodic error
Latitude Range: 0 to 90 degrees, Northern and Southern hemispheres
Enclosed electronics
Through the mount cabling: Access panels in the fork arm and azimuth axis allow for camera equipment cabling through the inside of the mount.
Dual mounting bracket: PlaneWave style mounting bracket to hold CDK17/20 onto inside of fork arm with additional option of mounting a scope on the outside of the fork arm. Optional dovetail clamp required.
Azimuth dovetail balance system: For precise center of gravity balance whether in Alt-Az or Equatorial configuration
Control System
User Interface: PlaneWave Interface 4 (PWI4) Control Software with integrated PointXP mount modeling software
Slew Rate: 20 degrees per second (standard); 50 degrees per second (maximum), both axes
Home position sensors are included allowing the mount can find its home position on power up.
IMPORTANT:
Τhe telescope is transported from abroad, with extra costs of special packaging and shipping. These costs are related to the transport of the telescope from abroad to Greece and are irrelevant of the shipping cost within Greece. Please, contact us for the total cost.
Heating elements for dew prevention– The heating pads on the primary and secondary mirror require the #1329110 Delta-T controller and sold separately
OTA cover– To protect the primary mirror and inside of the optical tube
Flash Drive– Contains software and instructions for collimation and spacing the primary to the secondary mirror
Wrench set (5812A35) – Standard hex wrenches (European Orders Only)
Soft cover for secondary mirror
12v AC adapter
L-350 Mounts
Hardware
Six 3/8-16 x ¼ “socket head cap screws to bolt the mount to the pier, or wedge.
Six 3/8-16 x ¼” washers
One extended length shoulder bolt for RA axis to EQ wedge alignment
EZ- Saddle– The 600182 accepts Losmandy D style dovetail rails such as the CDK12.5 and CDK14. The saddle come standard with the L-350 mount and can also be attached to the outside arm of any L-Series mount for dual mounted OTA configurations
One 16’ USB cable– to connect the mount to the observatory control computer
One 120VAC power cable– To provide to the mount
Standard Allen Key set– For tightening bolts used on the mount
Flash drive– Contains PWI4 software for mount control and instructions for installation
Specifications:
OPTICS
Optical Design
Corrected Dall-Kirkham (CDK)
Aperture (mm)
14" (356 mm)
Focal Length
2.563 mm (101 inch)
Focal Ratio
f/7.2
Image Field
70 mm
Back Focus Distance
11.09" (282 mm) from Mounting Surface
Central Obstruction
23.5% by surface area, 48.5% of the Diameter
Substrate
Fused Silica
Optical Tube Weight
48 lbs (22 kg)
MOUNT
Mount
Alt-Az or Equatorial configuration
Payload Capacity (kg)
100 lbs (45 kg)
Mount Weight
110 lbs (50 kg)
Latitude Range
0 to 90 degrees, Northern and Southern hemisphere
Slew Speeds
20 degrees per second (standard); 50 degrees per second (maximum), both axes
Tracking accuracy
< .3 arcsecond error over 5 minute period
Pointing Precision
2 arcsecond
All-sky pointing accuracy
<10 arcsecond RMS with PointXP Model (L-500)
System Natural Frequency
10 Hz or greater
Control system electronics
PlaneWave Interface dual axis telescope control
Software
PlaneWave Interface (PWI4). Incorporates PointXP mount modeling software by Dave Rowe All ASCOM compatible
Homing Sensors
Home position sensors are included allowing the mount can find its home position on power up
ELECTRONICS
Motor Torque
Approximately 20 ft-lbs continuous; 50 ft-lbs peak
Motor
Azimuth and Altitude: Direct Drive 3 Phase Axial-Flux Torque Motors
Motor Control
Industrial grade brushless motor control system and built in electronics
Encoder
152mm disk built into the azimuth and altitude axes with stainless steel encoder on the circumference with reader yields 18,880,000 counts per revolution of the telescope. This translates to about 0.069 arcsecond resolution
Power Requirements
Accepts 120 VAC. Supplied with 12VDC 15A Regulated Power Adapter
