ΟΠΤΙΚΟ ΠΟΛΥΜΕΤΡΟ ERMENRICH NETGEEKS NU10

ΟΠΤΙΚΟ ΠΟΛΥΜΕΤΡΟ ERMENRICH NETGEEKS NU10

ΟΠΤΙΚΟ ΠΟΛΥΜΕΤΡΟ ERMENRICH NETGEEKS NU10

ERMENRICH

Ermenrich NetGeeks NU10 can measure the absolute optical power or relative loss of optical power between two points in the fiber optic cable. The device is useful to those who install and maintain cable networks or inspect and certify telecommunications equipment.

€34.00

Temporarily Out Of Stock

Temporarily Out Of Stock

Ships within 3-14 days.
In this case there is currently zero availability of these items which we usually keep in stock. However, it is very likely that these items are available in the distribution centers in Europe of the manufacturers with whom we cooperate or of our other suppliers and thus we can immediately replace a product that has run out. If we know in advance that the delivery time for temporarily out-of-stock products exceeds 14 days, then we will notify you by e-mail or telephone.

Availability: In stock
SKU
LEV-82556

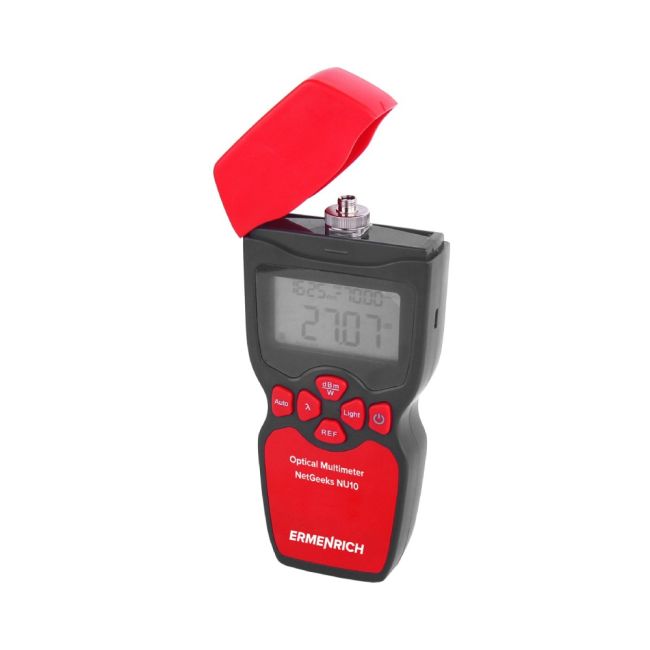

Ermenrich NetGeeks NU10 Optical Multimeter


Features:

  • Absolute and relative optical power measurements
  • FC/SC/ST connectors, supports 6 wavelengths
  • Option to set the reference level
  • Powered by batteries; auto-off function
  • Portable design and simple operation


The Ermenrich NetGeeks NU10 optical multimeter is a compact device for testing fiber-optic communication lines. You can measure the absolute optical power or relative loss of optical power between two points in the fiber optic cable. The device is useful to those who install and maintain cable networks or inspect and certify telecommunications equipment.


The multimeter supports six wavelengths: You can select the desired one with a push of a button. The FC/SC/ST interfaces are used for connection. There is an option to set the reference level for the current wavelength, which makes it easier to determine the power loss. The measurements are displayed on the built-in backlit screen. The device runs on batteries. The auto-off function helps save the power.

  • Type: optical multimeter
  • Optical power meter wavelength, nm: 850/1300/1310/1490/1550/1625
  • Fiber connector type: FC, SC, ST
  • Maintained cable type: single-mode (SM), multimode (MM)
  • Units of measurement: dB, dBm, W
  • Power detection range, dBm: -50 — 26
  • Option to set the reference level: ✓
  • Display: FSTN LCD
  • Display backlight: ✓
  • Power supply: 3 AAA batteries (not included)
  • Low battery status indicator: ✓
  • Auto power off: ✓
  • Operating temperature range,°C: -10...+60
  • Operating humidity range, %: 20 — 60
  • Package size (LxWxH): 6x19x15.5 cm
  • Warranty: 5 years


In the box:

  • Transmitter
  • Pouch
  • Cotton swabs
  • User manual and warranty card
