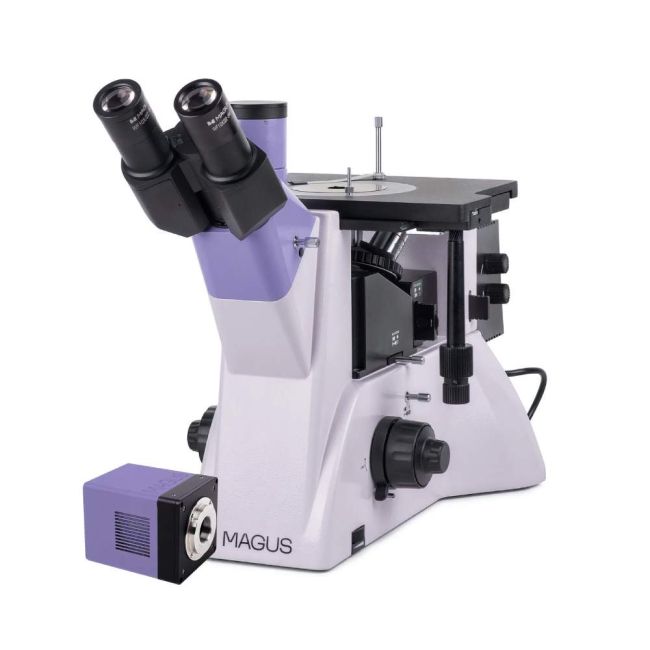

MAGUS METAL VD700 BD

MAGUS METAL VD700 BD

Key features of the microscope:

• Suitable for studying opaque dimensional objects up to 2kg
• Trinocular head with the option to adjust eye relief
• Two options for mounting a digital camera and monitor: trinocular tube of the trinocular head and camera side port on the body; beam splitting on the trinocular head 50:50, beam splitting on the body 100:0/0:100
• Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield microscopy techniques
• Reflected light illuminator with the powerful 50W bulb for darkfield microscopy
• Köhler illumination, centered elements of the illumination system, darkfield, brightfield, and polarization microscopy
• Filters reduce the intensity of certain wavelengths and adjust the color reproduction in microscope photography
• Large-sized stage with round rotating stage plate with 10mm, 20mm, and 30mm holes
• Large selection of additional eyepieces and objectives

Key features of the camera:

• For fluorescence and darkfield microscopy with 4x, 10x, 20x, and 40x objectives
• 8.3MP resolution: When observing with low magnification objectives, the camera will allow you to see finer details
• 45fps and 70fps at 3840x2160px and 1920x1080px resolutions for observing moving samples, recording video, and moving the preparation without jerks and delays
• Peltier element reduces the sensor temperature during prolonged operation and eliminates thermal noise. Therefore, long shutter speeds can be used when taking photos
• SONY Exmor color CMOS backlit sensor provides a low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
• USB3.0 interface for fast, smooth data transfer
• Software with photo, video recording, editing, external display functions, linear and angular measurements

Digital camera
The MAGUS CLM30 digital camera is designed for use in fluorescence and darkfield microscopy techniques.
The camera is equipped with an 8.3MP sensor and produces realistic images at a resolution of 3840x2160px. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will allow you to see finer details.
Video is recorded at 45fps or 70fps depending on its resolution: They are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with objects that are moving and is suitable for classroom demonstrations.
The camera is equipped with a USB3.0 interface. The data transfer speed is 10 times faster than USB2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Microscope head
Tube length – infinity (∞). When assembling the microscope, the user can rotate the eyepiece tubes 180° and adjust the eye relief to fit their height. There is a trinocular head. The monitor is mounted in the trinocular tube of the trinocular head and the digital camera – in the camera side port. The trinocular head is equipped with an 50/50 beam splitter, and there is a 2-position beam splitter (100:0/ 0:100) on the body.

Revolving nosepiece
The 5-objectives revolving nosepiece is mounted on the stand under the stage. A free slot is used for adjusting the position of the reflected light illuminator. An additional objective can also be installed in the free slot to achieve extra magnification.

Objectives
Plan achromatic objectives with a long working distance that is designed for the brightfield and darkfield microscopy techniques.

Focusing mechanism
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and effortless. On the right, there is the coarse focusing lock knob for quick adjustments after changing the sample. On the left side, there is the focusing tension adjusting ring.

Mechanical stage
The object is moved by moving the stage along two axes. A round rotating stage plate with a hole of suitable diameter (10mm, 20mm, or 30mm) is installed in the center of the table. A specimen holder is used to hold the object in place.

Light source
The lamphouse has a 50W halogen bulb. It is bright enough to observe with 4x to 100x objectives used for brightfield, darkfield, and polarized light microscopy. The halogen bulb emits light with a color temperature that allows for comfortable work.

Reflected light illumination
The illumination system makes it possible to set up the Köhler illumination. The field and aperture diaphragm are pre-centered at the factory and require no additional centering. If necessary, the diaphragms can be adjusted with centering screws. The light source is centered along three axes. The removable analyzer and polarizer are for the polarization microscopy technique. The polarizer rotates 0–360°, but the analyzer does not rotate. A set of filters can help you adjust the color reproduction. The darkfield device is mounted in the stage.

Accessories
Additional accessories increase the technical performance of the microscope. Eyepieces and objectives extend the range of magnification. Digital cameras output the image to a computer screen or monitor. Calibration slides help you take measurements of objects.
