MAGUS
The microscope is designed to observe the microstructure of metals and alloys, semiconductor materials, control the quality of paint coatings, and study other opaque objects.
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

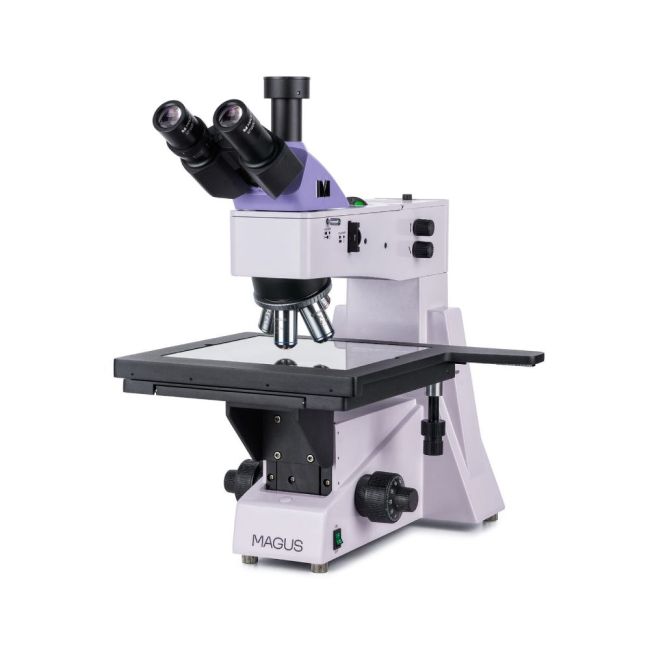

MAGUS METAL 650
Key features
Microscope head
Trinocular head with infinity plan achromatic objectives. The digital camera is mounted in the trinocular tube. The eyepiece/camera light path selection knob allows you to direct the light beam to either the digital camera or the eyepiece tube. The diopter adjustment is on the left tube.
Revolving nosepiece
5 objectives. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.
Objectives
Plan achromatic objectives with a long working distance designed for the brightfield microscopy technique.
Focusing mechanism
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can place their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy. On the right side, there is the coarse focusing lock knob, and there is a coarse focusing tension adjusting ring on the left side.
Fine focusing scale value: 0.7µm. Focusing at higher magnifications is easier.
Mechanical stage
The object is moved by moving the stage along two axes. The 280x270mm stage with a 204mm moving range along both axes makes it easy to observe long and wide objects.
Light source
The reflected light illuminator has a 30W halogen bulb. It is bright enough to observe with 4x to 100x objectives used for brightfield and polarized light microscopy. The halogen bulb emits light with a color temperature that allows for comfortable work.
Reflected light illumination
The microscope is equipped with a built-in analyzer and a removable polarizer. The polarizer rotates 0–360°, but the analyzer does not rotate. The aperture and field diaphragms make it possible to set up the Köhler illumination. Both diaphragms and the light source can be centered. The microscope comes with a set of filters.
Accessories
There is a broad range of accessories to be used with the microscope: eyepieces, objectives, digital cameras, calibration slides, etc.
Specifications
In the box:
Available on request:
