MAGUS
The MAGUS CHD30 digital camera is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. The camera features high light sensitivity, auto focus function, and it is suitable for fluorescent observations.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

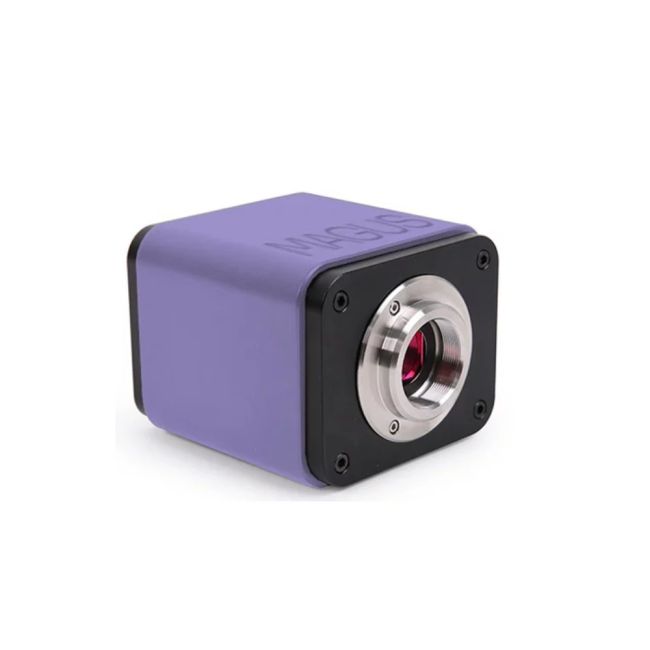

MAGUS CHD30 DIGITAL CAMERA
Features:
Sensor
The camera features a SONY color CMOS sensor with 3.75x3.75µm pixels. The 1/1.9" sensor with 3.45x3.45µm pixels provides light sensitivity of 1120mV with 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 0.5x to 0.75x.
Auto focus
In HDMI mode, the focusing is adjusted automatically. Auto focus makes it easier to capture clear images and helps you avoid glitches during your presentations.
Software features
When connected via an HDMI interface, the camera uses built-in software to display images on an external display, take photographs, record video, edit images, and measure linear and angular dimensions of samples and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.
The Wi-Fi interface is used for connecting to a PC. There is software that can be installed from the included CD.
Additional devices support
In order to use the built-in software, connect a mouse to the USB port. The mouse control eliminates vibrations that occur when the user interacts with the camera.
Instead of a mouse, you can install a Wi-Fi adapter into the USB port. It is used for connecting and transferring data to a PC.
Photos and videos are saved to the SD card or the flash stick.
The MAGUS product line features LCD monitors designed to be directly mounted on HDMI cameras. The simultaneous use of camera and monitor creates a compact and powerful imaging system for any MAGUS microscope.
Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapter rings (not included) to fit the tube diameter.
Specifications
In the box:
