MAGUS
MAGUS CHD10 is the most affordable camera with an HDMI interface. It is an autonomous camera that does not require connection to a computer or the installation of additional software. The camera can be connected directly to a TV, monitor, or projector to display an image.
Available within 5-14 days
This includes products that we do not keep in stock but are only available on request or have been announced by the manufacturer. For orders of these items, a deposit is required, proportional to the total value of your order. As soon as we receive your order, we will notify you by e-mail or telephone, for the exact delivery time and the amount of the deposit.

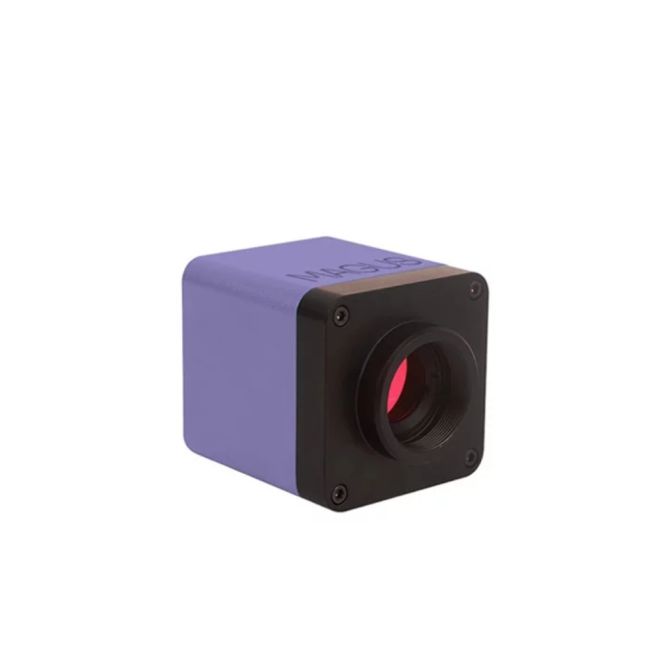

MAGUS CHD10 DIGITAL CAMERA
Features:
Sensor
The camera is equipped with a SONY Starvis backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
The 1/2.8" sensor with 2.9x2.9µm pixels provides light sensitivity of 1300mV at 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with magnification of 0.35x to 0.6x.
Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure the linear and angular dimensions of samples and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.
Additional device support
In order to use the software, connect a mouse to the USB port. The mouse control eliminates the vibrations that occur when the user interacts with the camera.
Photos and videos are saved to the SD card.
The MAGUS product line features monitors that are designed to be directly mounted on HDMI cameras. The simultaneous use of the camera and monitor creates a compact and powerful imaging system for any MAGUS microscope.
Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapters to fit the tube diameter (not included).
Specifications
In the box:
