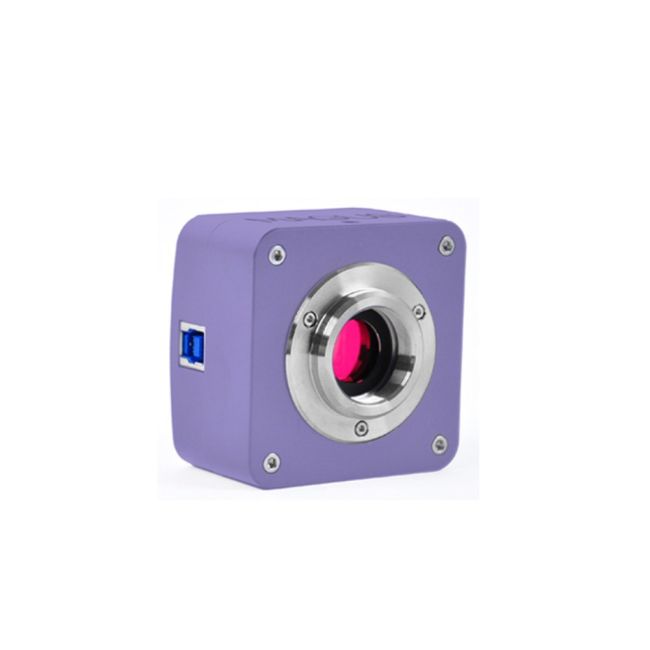

MAGUS CDF70 DIGITAL CAMERA

MAGUS CDF70 DIGITAL CAMERA

Features:

• Camera with a 5440x3648px resolution for brightfield and darkfield observations with 4x, 10x, and 20x objectives: The higher the resolution is, the finer the details will be that you can see
• 20fps at 5440x3648px resolution: easy focus adjustment
• 48fps and 58fps at 2736x1824px and 1824x1216px resolutions: easy classroom demonstrations, observations of moving objects, and video recording. The sample moves without jerkiness and lags.
• SONY Exmor color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
• USB3.0 interface for fast, smooth data transfer
• Software with photo, video recording, editing, external display functions, linear and angular measurements

Sensor
The camera is equipped with a SONY Exmor backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
The large size sensor is 1''. The size of the sensor affects the image quality: The larger the sensor is, the cleaner the image, and the greater the color depth and the wider the field of view will be.
The 1" sensor with 2.4x2.4µm pixel size provides light sensitivity of 462mV with 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 1x.

Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure the linear and angular dimensions of samples and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.

Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapter rings (not included) to fit the tube diameter.
