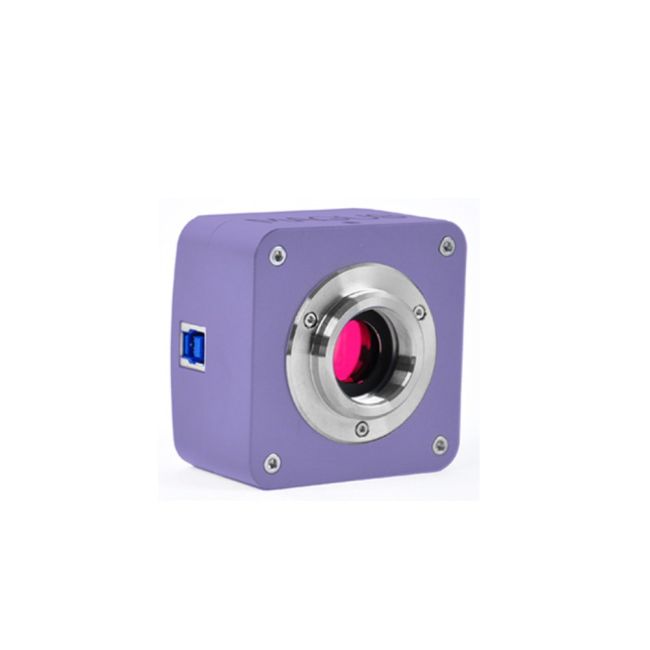

MAGUS CDF10 DIGITAL CAMERA

MAGUS

The camera makes it easy to work with moving samples and is ideal for classroom demonstrations. The high-speed camera is recommended for professional laboratories, research, or university training.

€569.00

Available within 5-14 days

Availability: In stock

SKU

LEV-83202

Qty:

Details

MAGUS CDF10 DIGITAL CAMERA

Features:

For brightfield and darkfield microscopy observations with 40х, 60х, and 100х objectives; it is the most affordable camera for darkfield microscopy with a large pixel sensor.
The camera resolution is 1920x1080px: It is an ideal choice for displaying images on a Full HD monitor.
125fps for observing samples that are moving, recording video, and moving the sample without jerkiness or delays.
SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
USB3.0 interface for fast, smooth data transfer
Software with photo, video recording, editing, external display, linear and angular measurements

Sensor
The camera is equipped with a SONY Exmor backlit color CMOS sensor. This technology increases light sensitivity and improves camera performance in low-light conditions.
The 1/2" sensor with 3.75x3.75µm pixel provides light sensitivity of 2350mV at 1/30s. To achieve the maximum field of view without distortion, we recommend using an adapter with a magnification of 0.4x to 0.6x. It is the most budget-friendly camera for darkfield microscopy.

Software features
The camera uses software to display images on an external display, take photographs, record video, edit images, and measure linear and angular dimensions of samples and their structures. Before taking measurements, the software must be calibrated for each objective with a calibration slide.

Installation
The camera is mounted on the microscope in the trinocular tube/camera port using the C-mount adapter (included). To mount the camera in an eyepiece tube instead of an eyepiece, you will need a special C-mount adapter and adapters to fit the tube diameter (not included).

Additional Features

Sensor: SONY Exmor CMOS
Color/monochrome: color
Megapixels: 2
Maximum resolution, pix: 1920x1080
Sensor size: 1/2" (7.2x4.05mm)
Pixel size, μm: 3.75x3.75
Light sensitivity: 2350mV at 1/30s
Signal/noise ratio: 0.15mV at 1/30s
Exposure, ms: 0.1ms–15s
Video recording: +
Frame rate, fps at resolution: 125@1920x1080
Place of installation: trinocular tube, eyepiece tube instead of eyepiece
Image format: *.jpg, *.bmp, *.png, *.tif
Video format: *.wmv, *.avi, *.h264 (Win 8 or newer), *h265 (Win 10 or newer)
Spectral range, nm: 380–650 (with IR filter)
Shutter type: ERS (electronic rolling shutter)
White balance: auto/manual
Exposure control: auto/manual
Software features: image size, brightness, exposure time
Output: USB 3.0, 5Gb/s
System requirements: Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display
Software: MAGUS View
Mount type: C-mount
Body: solid aluminum
Power supply: DC current, 5 V, with the USB port of the PC
Operating temperature range, °C (°F): −10... 50 (14… 122)
Operating humidity range, %: 30… 80
