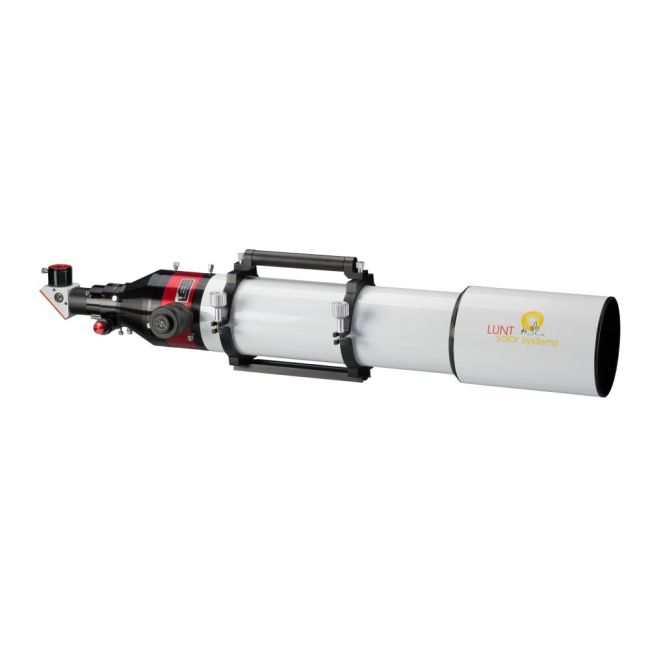

LUNT LS130MT/B1200 Multipurpose APO Telescope for Sun + Night-Sky

LUNT LS130MT/B1200 Multipurpose APO Telescope for Sun + Night-Sky

Features:

• Special telescope for observing the Sun
• For visual Sun observation & photography
• Bandwidth less than 0.7 Angstrom
• Modular design
• Also for Ca-K & White-Light solar observing
• Also for night sky observing
• Triplet ED APO refractor FPL-51
• Small B1200 blocking filter in zenith mirror

Complete H-alpha Solar Telescope with 130mm aperture and <0.7 Angstrom bandwidth. With Feather-Touch focuser, advanced air-pressure tuning system, and B1200 Blocking Filter.

The LS130MT is a triplet ED apochromatic refractor with modular design! The telescope can also be used for night sky observations, and with the optional available accessories also for observing the sun in the Ca-K wavelength and in White-Light!

The LS130MT/B1200 is a complete telescope for observing the sun in H-alpha light, with 130mm free aperture (no central obstruction) and 910mm focal length. The higher resolution compared to telescopes with smaller aperture allows the observer to dive into the fine details and surface phenomena of our ever-changing Sun. The higher resolution allows higher magnifications, bringing the fine details of the Sun to life in the eyepiece or on the screen.
An internal Etalon filter with the innovative air pressure tuning System Pressure Tuner achieves a bandwidth of <0.7 Angstroms. The tuning is done by slightly changing the air pressure in a pressure chamber inside the telescope. This changes the refractive index of the air, making it easy to adjust to the H-alpha line. The pressure tuner guarantees an homogeneous image without central obstruction and a permanently protected etalon without wear. A set of collimating lenses installed in the telescope ensures best performance.
Fine adjustment is achieved by a 2" Starlight-Instruments Feather-Touch focuser with 1.5" travel and 10:1 reduction.

Blocking-filter is the B1200. The B1200 is good for visual solar observing. Also solar imaging is possible by cameras with small CCD chip. We recommend a LS130MT with B1800 blocking-filter by using cameras with middle or large sized CCD chips, at very large CCD chips the B3400 blocking-filter.
The star diagonal in which the blocking filter is installed, is equipped as standard for 1.25" eyepieces and with a T2 camera connection.

Also the LS130MT telescope is upgradeable with the additional available DSII double-stack system (item no. 0551690). The optional DSII system is a internal double stack module with Pressure Tuner, that provides a bandwidth <0.5 Angstrom. More details on the solar surface will become visible by reducing the bandwidth.

Modular design:
The H-Alpha Etalon system can be easily removed from the telescope. The 3-lens ED Apochromat can be used as a normal telescope for observation and imaging of the night sky.
Also available is a Ca-K module (item number 0551697) specially developed for the LS130MT. This also allows to observe the sun in the blue calcium wavelength.
A Herschel-wedge (item number 0558201) can also be used for observing the sun in white light.
This makes the LS130MT a completely universal usable telescope!
