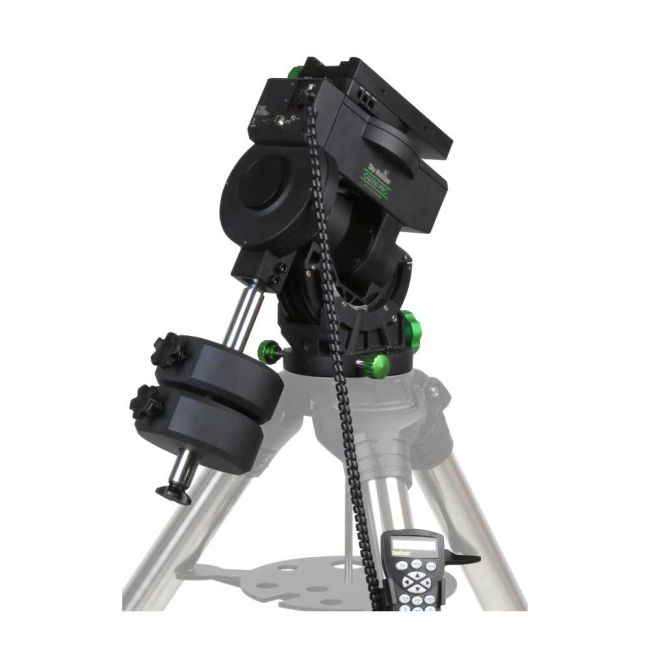

CQ350 PRO SYNSCAN MOUNT HEAD ONLY

CQ350 PRO SYNSCAN MOUNT HEAD ONLY

CQ350 PRO SYNSCAN MOUNT HEAD ONLY

SKYWATCHER

Sky-Watcher’s exciting new CQ350 PRO Synscan™ Computerised Go-To Equatorial Mount is an observatory-class platform designed for discerning astro-imagers, which is also portable enough for use in the field when paired with the optional stainless steel tripod.

€3,349.00

Available Upon Request

Available Upon Request

In this case, we do not keep the products in stock but are only available upon pre-order. As soon as we receive your order, we will notify you by e-mail or phone, about the exact delivery time.

Availability: In stock
SKU
SKECQ350


CQ350 PRO SYNSCAN MOUNT HEAD ONLY
EXTRA HEAVY-DUTY COMPUTERISED GO-TO EQUATORIAL MOUNT


Sky-Watcher’s exciting new CQ350 PRO Synscan™ Computerised Go-To Equatorial Mount is an observatory-class platform designed for discerning astro-imagers, which is also portable enough for use in the field when paired with the optional 20939 stainless steel tripod. It's payload capacity of 35kg places the CQ350 PRO squarely between the EQ6-R and the EQ8-R PRO and with its dual-fit 45mm/75mm saddle, makes it a secure and highly capable platform for supporting a wide range of OTAs and peripheral equipment. Quiet in operation, featuring high precision belt driven stepper motors on both axes. Supplied with the Synscan computerised handset with 42,900 object database and two 10kg counterweights. An optional external polarscope is available as an accessory. The CQ350 PRO mount head is also compatible with the 20293 EQ8 Pier Tripod.

More Information
Mount: Type of build Equatorial GoTo
Load capacity 35
Dovetail Losmandy & Vixen Style
Power supply 11-16 V DC, 55W
Counterweights 2 x 10 kg
Control Hand control
Hand control SynScan
PEC Correction Yes
Polar scope Not included
Auto-Guiding Yes
Software Synscan Pro app
Head weight (kg) 15 kg
  • Payload Capacity (excl. counterweights): 35kg (Rating for imaging use)
  • Latitude Adjustment Range: 0°-70°
  • Azimuth Adjustment Range:  +/- 15°
  • Mount Head Weight (excl. counterweights) 15kg
  • Dimensions 434mm x 176mm x 323mm
  • Counterweights Supplied:  2 x 10kg
  • Power Requirement:  DC11~16V 2A (Higher voltage preferred), 55W
  • Motors: Hybrid High Precision Stepper Motors (Belt Driven)
  • R.A. Worm Wheel Teeth: 308, DEC Worm Wheel Teeth: 288
  • R.A. Gear Diameter 155mm
  • Resolution : 55,193,600 Counts/Rev., approx. 0.023 arc-second
  • Maximum Slewing Speed: 4° per second
  • Tracking Rates:  Sidereal rate, solar rate, lunar rate
  • Auto-Guiding Speeds:  0.125X, 0.25X, 0.5X, 0.75X & 1X
  • Optional Polarscope available separately
  • Built-in Cable Management: Yes
  • Automatic Identification Initial Position Function
  • Dual-fit Saddle for 45mm and 75mm Dovetail Bars
  • Ports: 4 x USB Ports, 1 x Shutter Release Port, 1 x Power Input Port, 3 x Power Output Ports, 1 x Hand controller Port & 1 x Autoguider Port
  • Auto Home Function
  • Hand Controller Supplied: Synscan with 42,900+ Object Database
  • PEC: 200 Segments Permanent PEC
  • Synscan Celestial Object Catalogue: Messier, NGC, IC, SAO, Caldwell, Double-Star, Variable Star, Named Star, Planets
  • Control also possible with Synscan Pro Application for Windows via USB, Synscan Pro App for iOS and Android with optional Wi-Fi Dongle
