ZWO
Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!
Available Upon Request
This category includes products which are not kept in stock and for some reasons -which don’t depend on our company- can’t be available in less than 14 days. Specifically, this category includes new products thar are pre-advertised by manufacturers, however they are not available in Greece yet. You can pre-order these items with a special preferential price. If the estimated arrival date of this product is already known, then the estimated date will be written above the indication “AVAILABLE UPON REQUEST”.

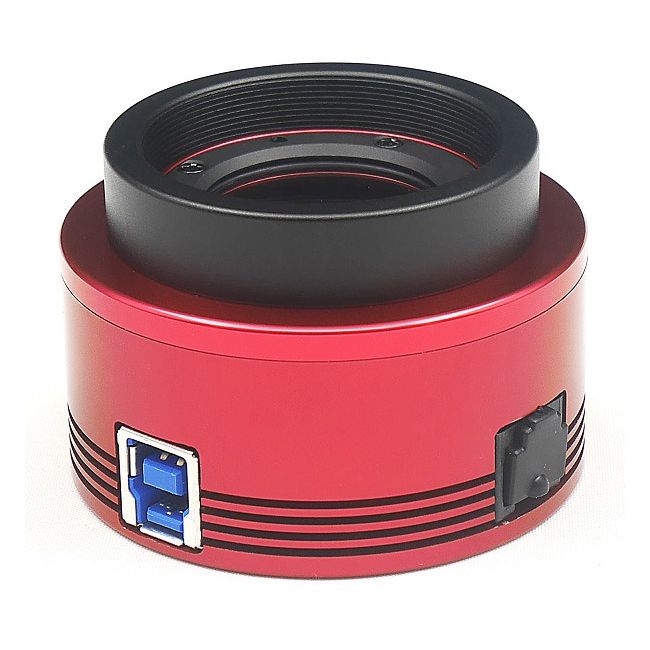

CAMERA ASI 183mm (Mono)
Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!
Diagonal 15.86 mm Approx. 20.48M-Effective Pixel Monochrome/Color CMOS Image Sensor
In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel. The optical size is 1 inch.
The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.
Fast FPS can be used in solar(white light) and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.
Notice: depends on user’s feedback, this IMX183 sensor has grid pattern noise when do Ha solar imaging, please take flat frame for calibration(out of focus or add a barlow lens to take flat frames). We recommend our ASI1600/ASI174 mono camera for Ha solar imaging.
10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps
Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still a over 60%.
Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.
USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) at full resolution(20.18Mega).
ST4 Port: can be used connect with auto guide port of mount, for guiding.
| Net Weight (g) | 410 |
|---|
What is in the box?
ASI183 box includes all necessary cables, adapters, and manuals.
