CAMERA ASI 183mm COLOR

CAMERA ASI 183mm COLOR

CAMERA ASI 183mm COLOR

ZWO

ASI183 has much potential, 84% QE peak, 20.18Mega pixels, 15000e full well, 1.6e read noise, 19FPS@full resolution, each feature means a new posibility!
€849.00

Available Upon Request

Available Upon Request

In this case, we do not keep the products in stock but are only available upon pre-order. As soon as we receive your order, we will notify you by e-mail or phone, about the exact delivery time.

Availability: In stock
SKU
ZWO-ASI183MC

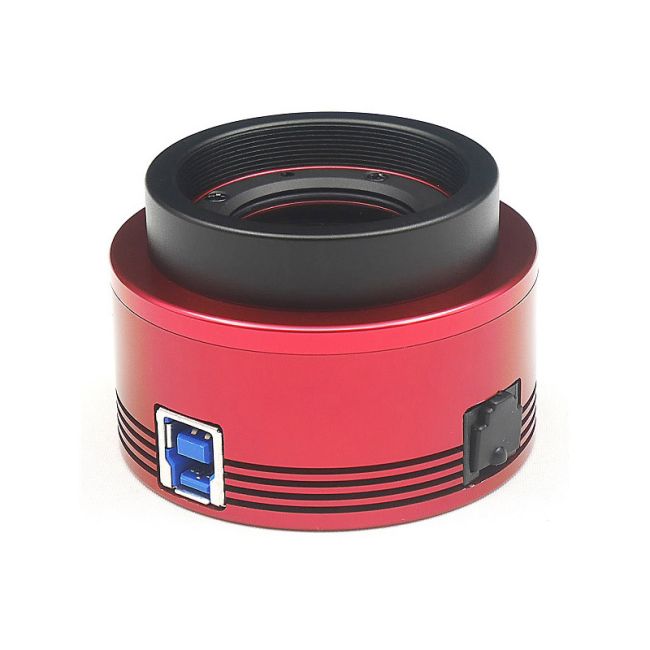

CAMERA ASI 183MC Color

183-1

Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

Diagonal 15.86 mm Approx. 20.48M-Effective Pixel Monochrome/Color CMOS Image Sensor

IMX183CQJ-4K-Sensor

▶High-Speed and High-Picture-Quality Rolling Shutter-Type Back-Illuminated CMOS Image Sensors

In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel.  The optical size is 1 inch.

Astrophotography Performance

The ASI183 cameras has a very large full well capacity(15000e) for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.



183 Gain RN DR FW vs gain

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672    19fps
3840×2160    41.04fps
1920×1080    80.10fps
1280×720      117.30fps
12bit ADC
5496×3672    19fps
3840×2160    36.12fps
1920×1080    70.48fps
1280×720      103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

183QE

USB 3.0 Port & ST4 Port

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(20.18Mega).

ST4 Port: Can be used connect with auto guide port of mount, for guiding.



183MC

Mechanical Diagram

asi183-Mechanical-Drawing

More Information
Net Weight (g) 410

What is in the box?

ASI183 Pro box includes all necessary cables, adapters, and manuals.
