TESTER ΚΑΛΩΔΙΩΝ ERMENRICH PING SM100

TESTER ΚΑΛΩΔΙΩΝ ERMENRICH PING SM100

TESTER ΚΑΛΩΔΙΩΝ ERMENRICH PING SM100

ERMENRICH

The Ermenrich Ping SM100 is designed for tracing cables in walls and ceilings as well as cables buried underground. The maximum detection depth is 2 meters (6.6ft).

€124.00

Temporarily Out Of Stock

Temporarily Out Of Stock

Ships within 3-14 days.
In this case there is currently zero availability of these items which we usually keep in stock. However, it is very likely that these items are available in the distribution centers in Europe of the manufacturers with whom we cooperate or of our other suppliers and thus we can immediately replace a product that has run out. If we know in advance that the delivery time for temporarily out-of-stock products exceeds 14 days, then we will notify you by e-mail or telephone.

Availability: In stock
SKU
LEV-84548

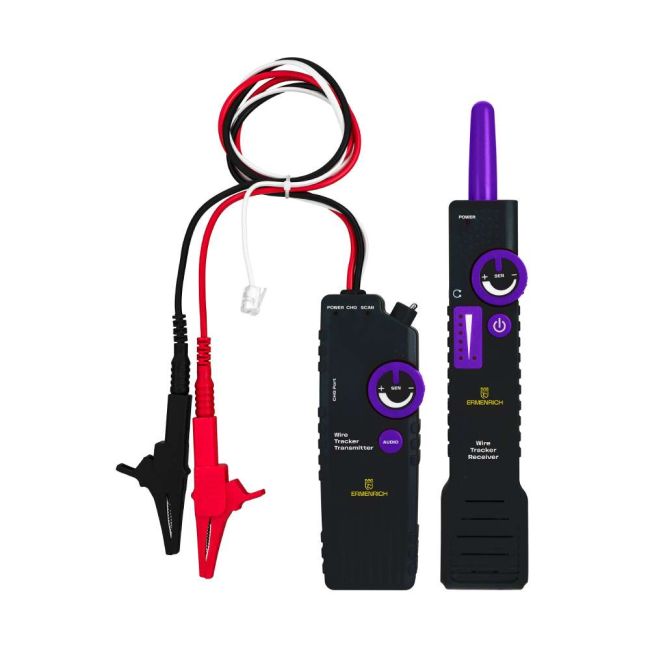

Ermenrich Ping SM100 Wire Tracker


Features:

  • For tracing different types of energized and de-energized cables
  • Maximum detection depth – 2 meters (6.6ft) (walls, ceilings, ground, etc.)
  • Crosstalk protection, transmitter, and receiver sensitivity adjustment
  • Powered by a rechargeable battery

The Ermenrich Ping SM100 is designed for tracing cables in walls and ceilings as well as cables buried underground. The maximum detection depth is 2 meters (6.6ft). The device can find de-energized and energized cables, i.e. it can be used to trace cables hidden under plaster, map cable lines, find drilling locations, etc. The cable tracing is performed with crosstalk protection.


The device includes a transmitter and a receiver, the sensitivity of each unit can be adjusted individually. Both devices are powered by rechargeable batteries, and a charging cable is included. The Ermenrich Ping SM100 comes with earbuds, which will come in handy when working in noisy environments.

Transmitter

  • Ports: microUSB, RJ11, power supply, alligator clips
  • Tracing cable types: telephone, coaxial, common wires, power cable, network cable
  • Maximum detection depth, m (ft): 2 (6.6)
  • Maximum possible voltage of the circuit under test, V: 400
  • Polarity test: ✓
  • Crosstalk protection: ✓
  • Maximum signal transmission distance, m (ft):10000
  • Peak output signal voltage, V: 21
  • Signal transmission format: multifrequency impulse
  • Adjustable sensitivity: ✓
  • Maximum operating current, mA: <150
  • Power supply: 1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included)
  • Low battery status indicator: ✓
  • Operating temperature range, °C: -10...+40
  • Operating humidity range, %: 30 — 60

Receiver / Remote unit

  • Ports: microUSB, earbuds
  • Maximum operating current, mA: <80
  • Adjustable sensitivity: ✓
  • Speaker: ✓
  • Power supply: 1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included)
  • Low battery status indicator: ✓
  • Operating temperature range, °C: -10...+40
  • Operating humidity range, %: 30 — 60
  • Package size (LxWxH): 30x13x6 cm
  • Warranty: 5 years


In the box:

  • Transmitter
  • Receiver
  • Micro USB cable
  • Earbuds
  • Carry bag
  • User manual and warranty card
