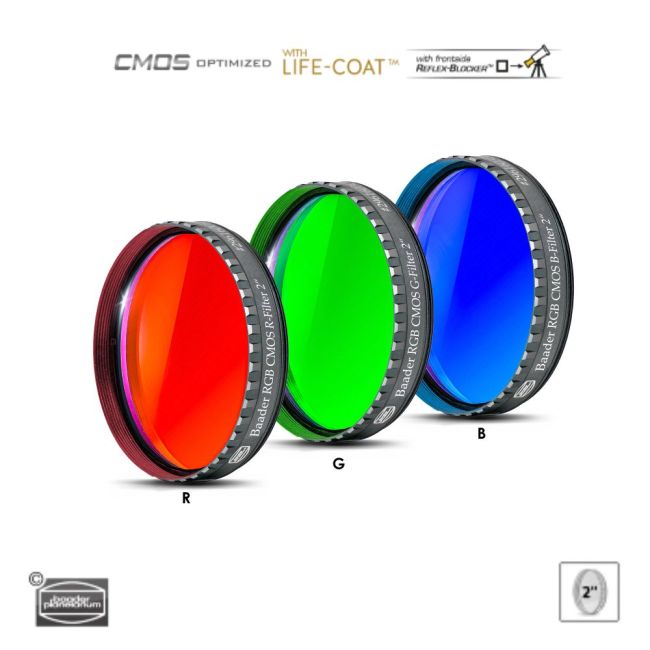

RGB Filter Set 2" – CMOS-optimized

RGB Filter Set 2" – CMOS-optimized

• 2" x 2 mm Baader CMOS RGB Bandpass Filter Set, suitable from f/15 to f/1.8 – with 2" (M48) filter thread
• Anti-reflection RGB filter (red/green/blue) with extremely high transmission of the respective color channel, thus simultaneously reducing stray light and reflections to an unprecedented level
• Balanced RGB design allows subframes to be taken with the same exposure time – extremely important for automated imaging tasks
• Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
• Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
• Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
• Mounted in Baader Ultra Low Profile (ULP) filter cell – 5,5 mm height

This new generation of Baader CMOS-filters features:

• Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
• Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
• Identical filter thickness to existing standards, with utmost care for parfocality
• Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
• Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
• Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
